| Place of Origin: | China |
|---|---|
| Brand Name: | Brynick |
| Certification: | Meets OSHA 1910. 110standards |
| Model Number: | BN8010501 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Carton Flat Packing and Pallet |
| Delivery Time: | 5-30 days upon order quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2500 sets per 30 days |
| Type: | Horizontal And Vertical | Cabinet Storage Type / Capacity: | 8 Horizontal And 9 Vertical |
|---|---|---|---|
| Weight: | 326 Pounds | Shelves: | 5 Shelves |
| Door: | 2 Manual | Size: | 60"W X 30"D X 65"H |

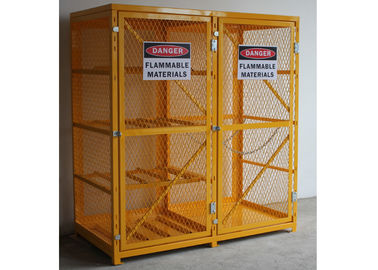

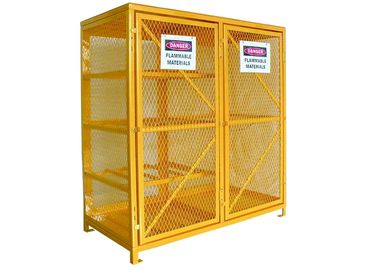

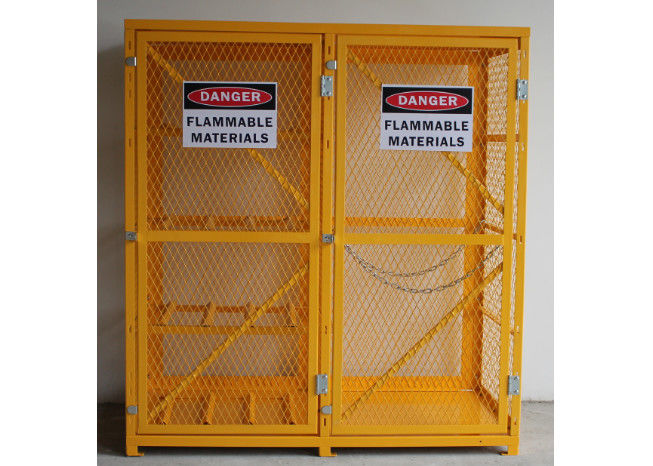

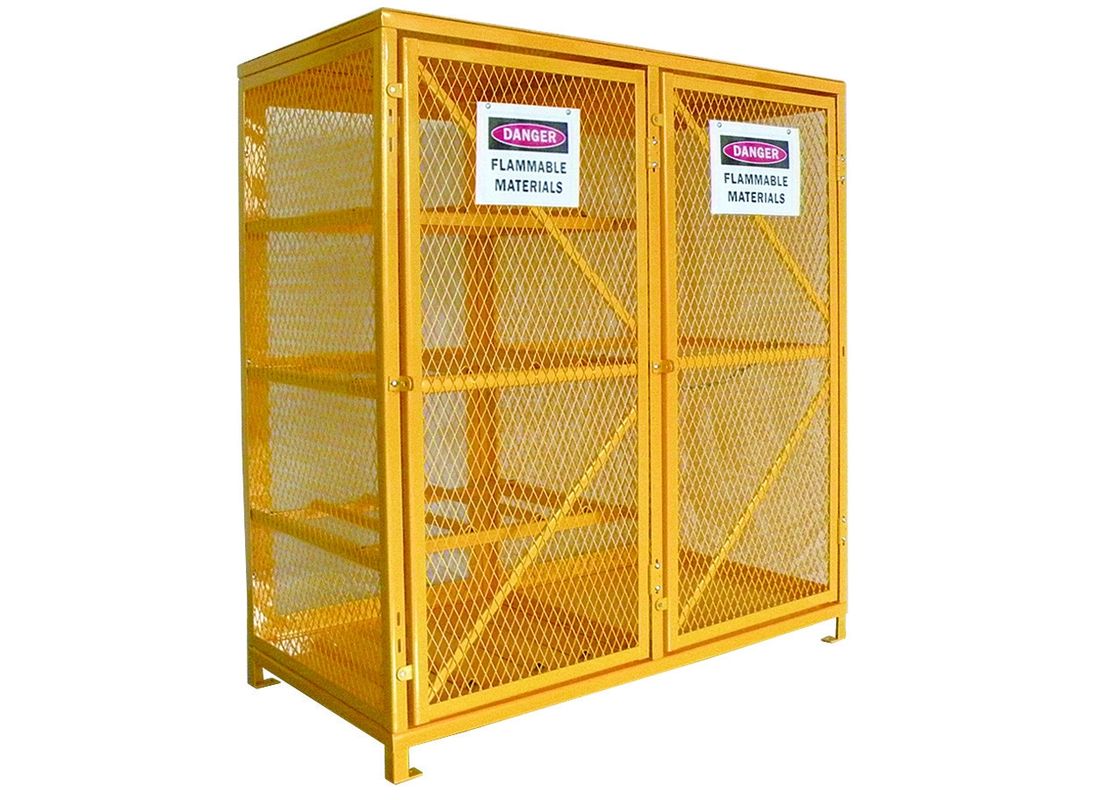

Wire Mesh Cabinet Mix Storage 8 Horizontal and 9 Vertical Gas Cylinders
Features
Description

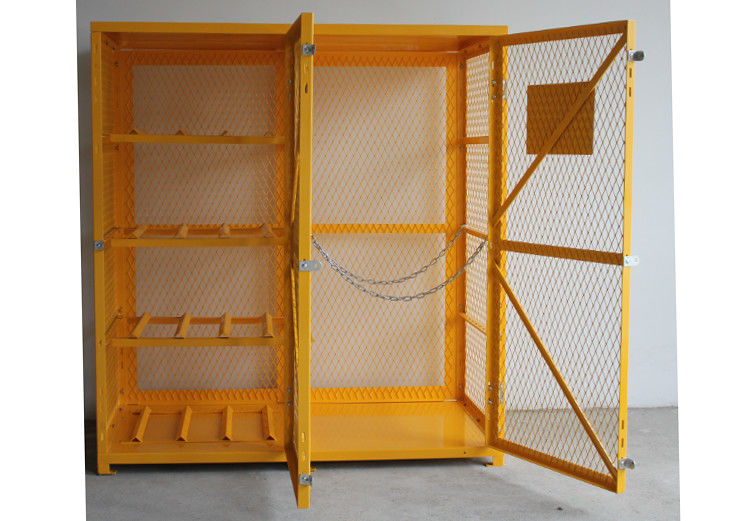

The steel Cylinder storage cabinet locker meet all relevant NFPA and OSHA standards for storing dangerous and flammable materials such as compressed gas/air cylinders and containers with ventilation and visibility. This double door cabinet allows one door storage 8 horizontal cylinder and another storage 9 vertical cylinder. Made of 14 GA steel top and bottom, heavy-gauge 14 GA expanded metal, 1 ½” x 1/8” angle steel frame. Heavy-duty butt hinges and padlock hasp keeps contents secure for safety. Magnetic catch keeps door shut when not locked. Predrilled holes allow anchor to floor. Rust and acid resistant safety yellow powder coat finish for long lasting durability. Feature adjustable chains for securing vertical cylinders, adjust in 1" increments. Vertical storage lockers accept all standard vertical cylinders up to 59¾" or 65". Horizontal cylinder storage lockers accommodate 20 and 33½" lb. LPG cylinders and canisters. Warning " DANGER FLAMMABLE MATERIALS " sign located in front of the doors. Easy Assembly with pre – drilled holes on frame.
Application
Horizontal Cylinder Storage Lockers Accommodate 8 LPG cylinders and Canisters 20 and 33½" lbs, and Vertical storage lockers Accommodate 9 vertical cylinders up to 200 Lbs. or 59¾ inch tall
Specification
| Cylinder Cabinet Storage Type / Capacity | Horizontal / 8 Cylinder |
| Cylinder Cabinet Storage Type / Capacity | Vertical / 9 Cylinder |
| Cylinder Size | 20 lb. & 33 lb |
| Cylinder type | LPG |
| Height | 65 Inch |
| Width | 60 Inch |
| Depth | 30 Inch |
| Safety Cabinet Door Type | Manual with Magnetic |
| Number of Adjustable Cabinet Shelves | 3 |
| Number of Fixed Cabinet Shelves | 2 |
| Total Shelf Quantity | 5 |
| Door Quantity | 2 |
| Number of Chains | 1 |
| Assembled/Unassembled | Unassembled / Predrilled Holes for Mounting |
| Color | Yellow |
| Safety Cabinet Standards | OSHA 1910, NFPA 30 |
| Rated For Flammable Storage | Yes |
| Roof Material | 14 ga. Steel |
| Construction | Expanded Metal, Angle Iron Frame |
| Finish | Powder Coated |
| Weight | 326 Pounds |
