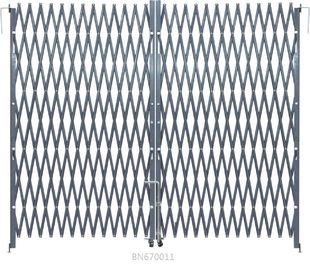

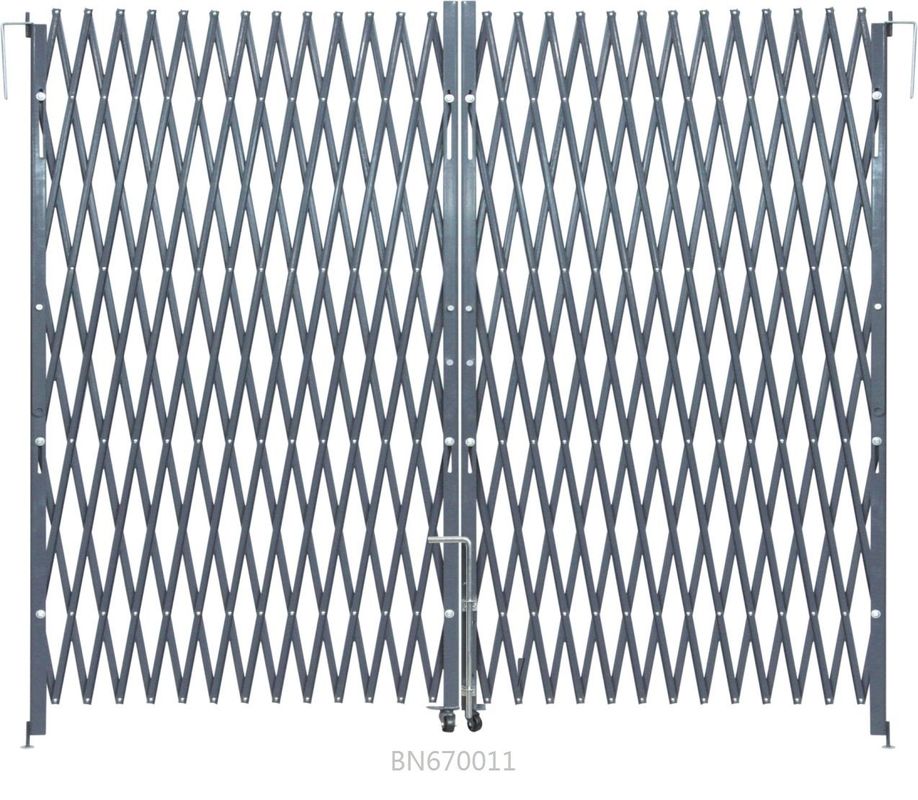

14 Gauge U Channel Steel Accordion Safety Gate , Folding Metal Security Doors Gate

Basic Information
Place of Origin: Ningbo
Brand Name: Brynick
Certification: N/A
Model Number: BN670011
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton packing with pallet for forklift
Delivery Time: 5-30 days upon order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3500 sets
Detail Information
Material: 14 Gague Steel U Channel Width: 10 Feet
Color: Grey Height: 6 1/2 Feet
Gate Type: Double Open Assembly: Unassembled

Product Description

14 Gauge U Channel Steel Double Folding Security Gate 10’ opening x 6 1/2’ high, Grey



Application

  • Store, booth or shop
  • Window
  • Passage
  • Garage
  • Porch
  • Balcony



Description
Folding gates are designed to safeguard facades and doors. By using a scissoring construction, the folding gate can easily be folded to a package with small dimensions. This 6.5 feet high and 10’ wide double gates are made with strong 3/4 14 gauge channel steel. These rolling security gates have an excellent construction fold completely and swing up to 180 degrees for opening and preserve the integrity of durable gray powder coat finish for a longer life. Zinc-plated rivets help prevent corrosion. Package includes mounting brackets for wall, bearing washers, metal durable casters, and lock lugs. Padlocks not included.



Features

1, Heavy duty steel U channel webbing

2, Riveted Back to Back with high quality steel galvanized rivets. They'll withstand more stress and never rust, and never crack and the webbing never separate.

3, Heavy - duty 1 1/2” x 1 1/2” vertical member angles

4, Strong 3/4 inch, 14 gauge channel steel, the most strength and security in the market

5, solid galvanized steel 5/8" self - securing drop pins designed to fit directly into floor holes

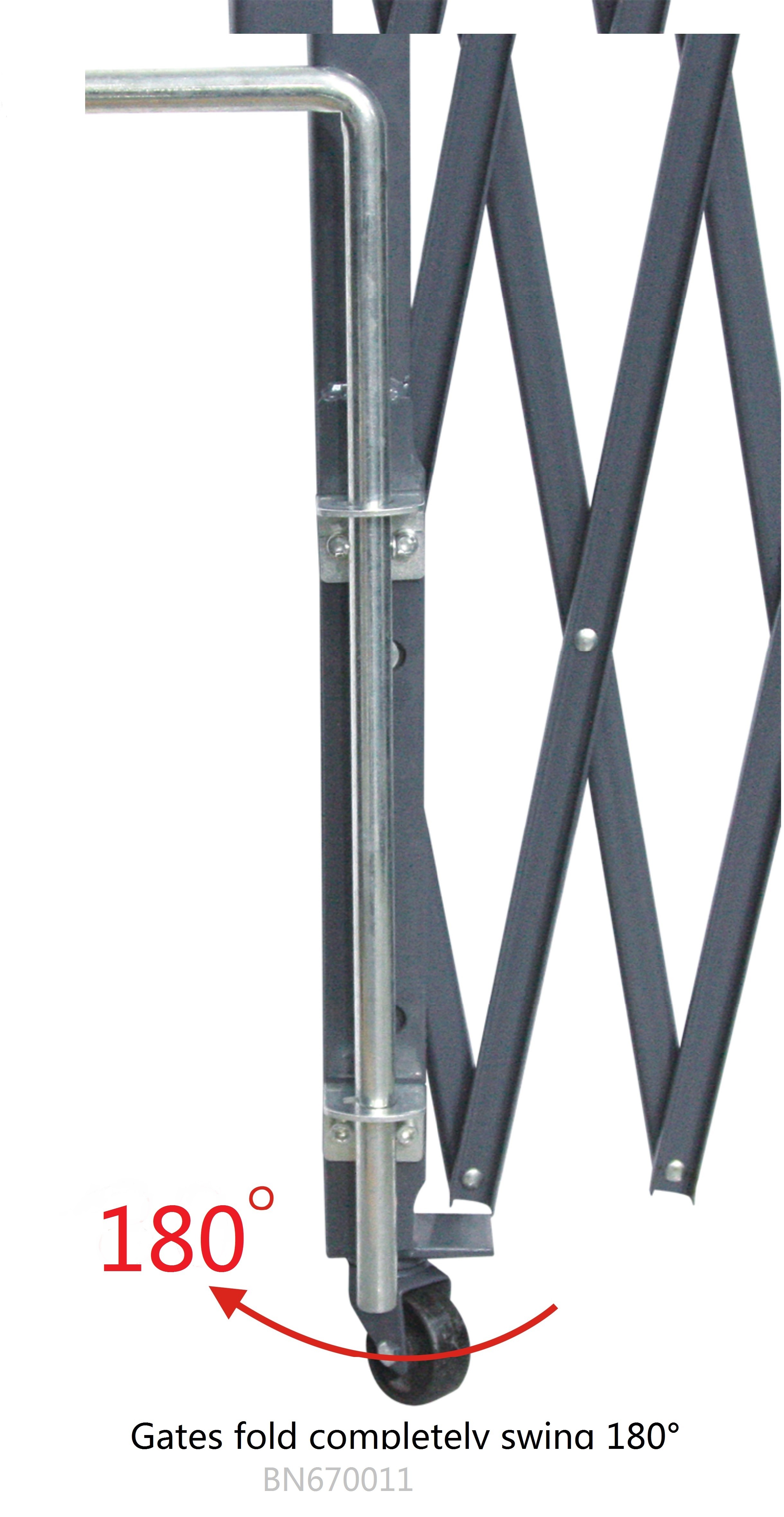

6, swing up to 180 degrees for opening on the mountings, give a completely clear of obstructions.

7, Locking on the right standard, and locking on the left available upon request.

8, Solid steel castor

9, easily installation within 30 minutes



Specification

Width 10 Feet
Wipe Height 5.12 Inch
Height 6 1/2 Feet
Finish Powder Coating
Color Grey
Assembly Unassembled
Material Steel
Folding Gate Type Double Open
Mounting Bolt Hole Diameter 0.312 Inch

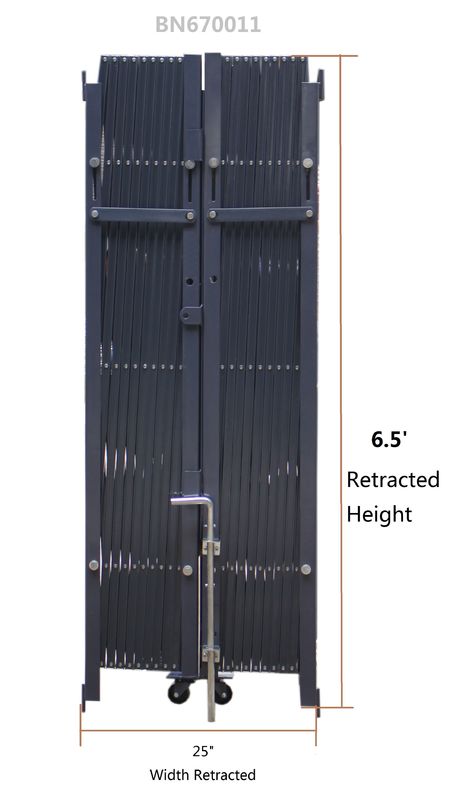

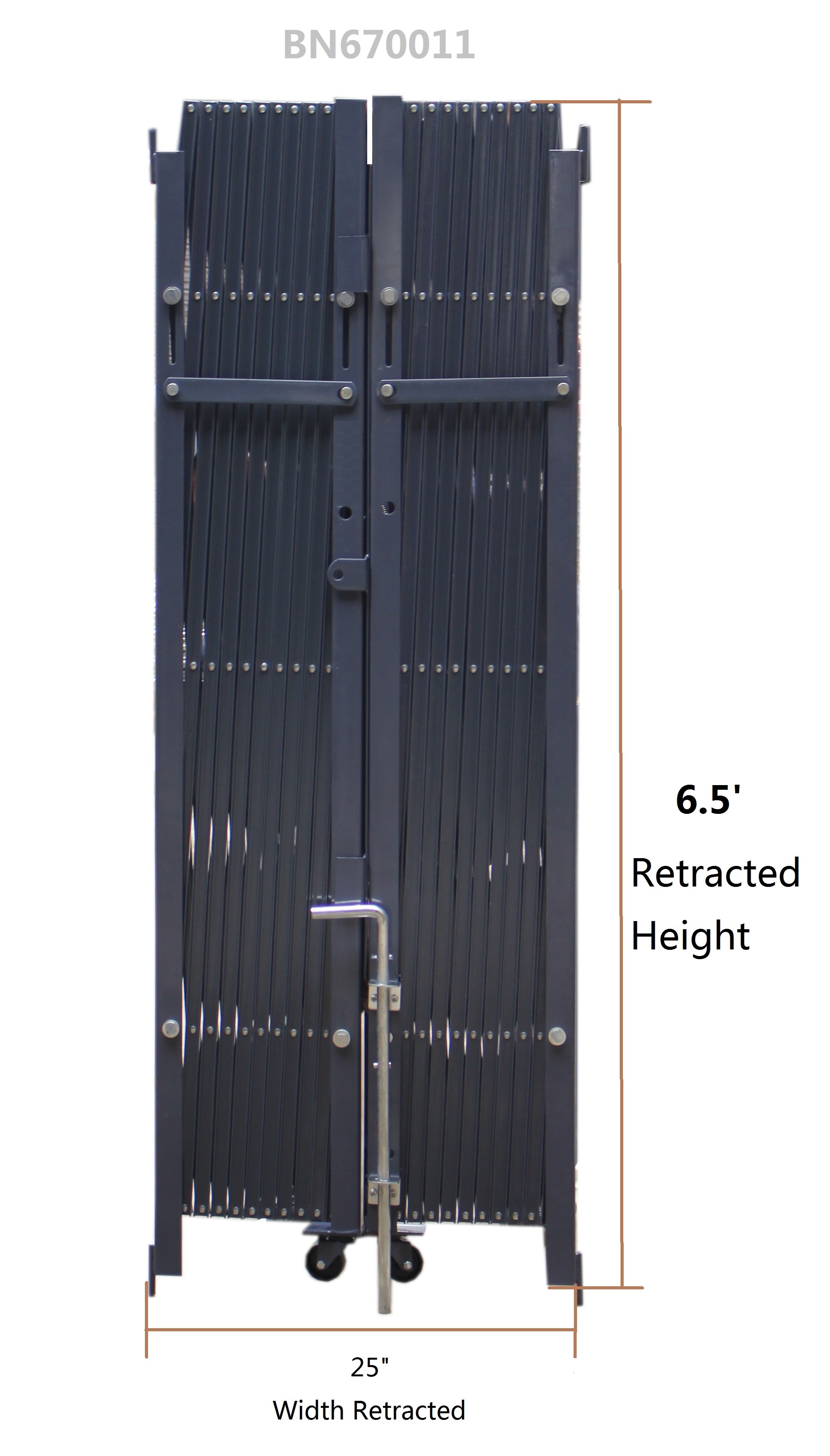

Retracted Width 12 1/2 Inch
