10 GA Steel Wire Mesh Security Partitions 3 Sided 20*10’ *8’ Without Roof

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BN660022
Minimum Order Quantity: 1 set
Price: Neotiable
Packaging Details: Wrapped plastic sheet with pallet for forklift transfer
Delivery Time: 3-30 days depend on order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets per Month
Detail Information
Material: 10 GA Steel Wire Connect: Mortised And Tenoned
Floor Socket: Aluminum Door Frame: Cold Rolled Channel
Finish: P/C Color: Grey

Product Description

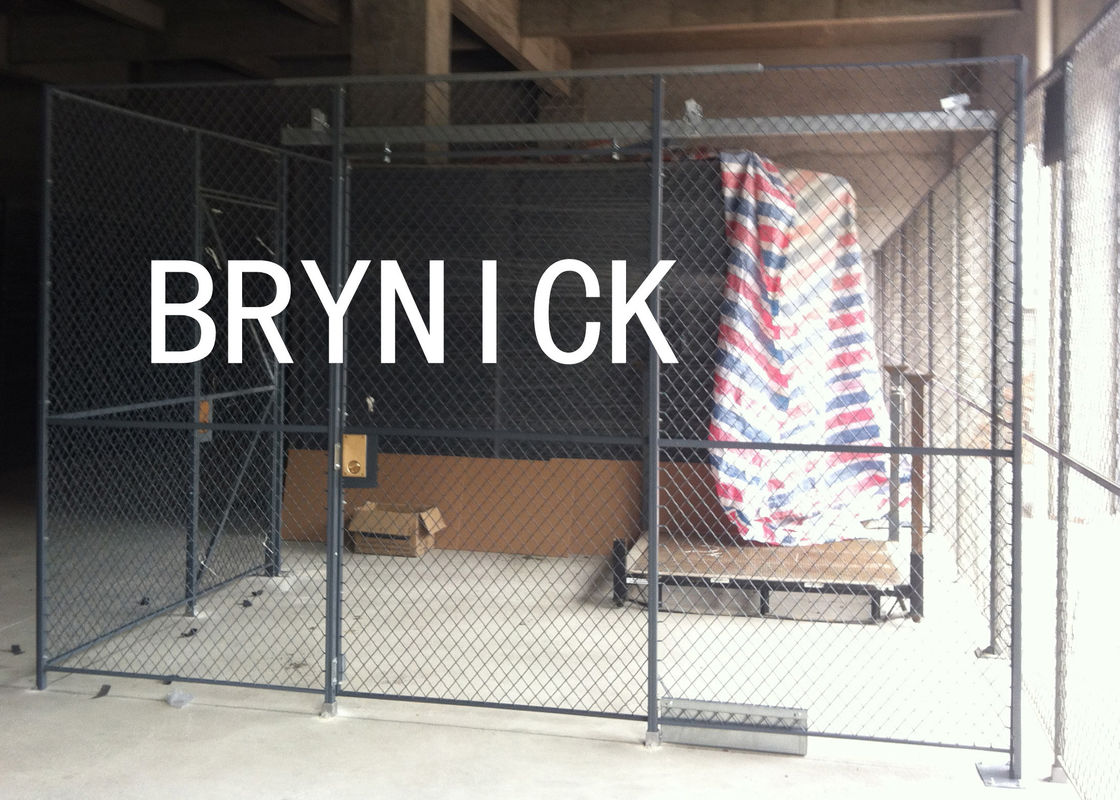

Security Mesh Partition Room 3 Sided 20’ Width, 10’ Depth and 8’ High without Roof



Application

  • Protect and control access to work areas, inventory and equipment
  • Create enclosed, lockable areas for securing valuables
  • Ideal for separating and securing any space in industrial, commercial, or governmental environments
  • Used to enclose work areas, to create secure storage cages in factories and warehouses, and to provide access control and loss prevention.
  • Perfect for stock rooms and commercial storage facilities



Description

Woven wire mesh unit which prepare a security rooms against one wall and surrounded by 3 side panel and door provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise doorlock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details. Add suffix A to any model to include sliding service window 5’ wide, padlockable with 12” depth shelf.



Features

- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Floor sockets to be cast aluminum.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated industrial Grey



Specification

PART NUMBER BN660022
WIDTH’ 20’
HEIGHT’ 8’
DEPTH’ 10’
COLOR Grey
ASSEMBLY Unassembled
BRAND Brynick
CONSTRUCTION Steel Woven Wire
ROOF No
SERVICE WINDOW No
STYLE 3 Sides
