Commercial Wire Mesh Partition Panels Full Height Wire Cage Door 230 Lbs Weight

Basic Information
Place of Origin: Ningbo Zhejiang
Brand Name: Brynick
Certification: N/A
Model Number: BNSSF808
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Tightly packed in steel frame with bolt and shink wrapped
Delivery Time: 5-30 days depend on order quantity
Payment Terms: D/P, Western Union, T/T, MoneyGram, D/A, L/C
Supply Ability: 2500 units per month
Detail Information
Width: 8 Feet Type: Sliding Door
Height: 8 Feet Weight: 230 Lbs
Material: Wire Mesh Work With: TRace Kit Hardware

Product Description

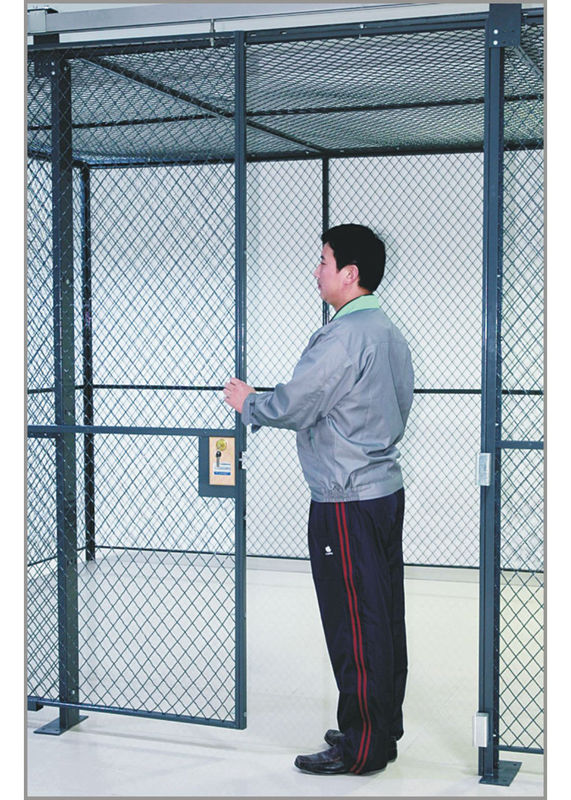

Security Full Height Sliding Door with Transom 8’ High X 8’ Width for Woven Wire Mesh Partition



Description

Security extra access full Height single 8-feet high 8-feet wide sliding gate can be installed to slide in either direction, Include ball-bearing suspension and an enclosed sturdy track kit to prevent misalignment, lock receiver and Gate Stop, transom, trace kit and necessary hardware. Woven wire mesh security rooms provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'



Application

Protect and control access to work areas, inventory and equipment

Create enclosed, lockable areas for securing valuables

Separating and securing space in industrial, commercial, or governmental environments

Enclose work areas, to create secure storage cages in factories and warehouses, and to provide access control and loss prevention

Perfect for stock rooms and commercial storage facilities



Features

- Floor sockets to be cast aluminum.
- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated industrial Grey



Specifications

PART NUMBER BNSSF808
WIDTH FEET 8 Feet
HEIGHT FEET 8 Feet
COLOR FINISH Grey
ASSEMBLY Assembled
BRAND Brynick
CONSTRUCTION Wire Mesh
DESCRIPTION Sliding Door
WEIGHT LBS 230 Lbs
