2 Inch Steel Channel Long Top Capping For Industrial Mesh Partitioning 2 Inch Width

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BN663146
Minimum Order Quantity: 1 pc
Price: Negotiatible
Packaging Details: 2 pcs per pair and 200 pcs in a metal pallet with plastic strip wrapped
Delivery Time: 5-30 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 10,000 pcs per month
Detail Information
Width: 2 Inch Type: Top Capping
Length: 10 Feet Construction: Fromed And Punched
Material: U Shape Channel Work With: Panels

Product Description

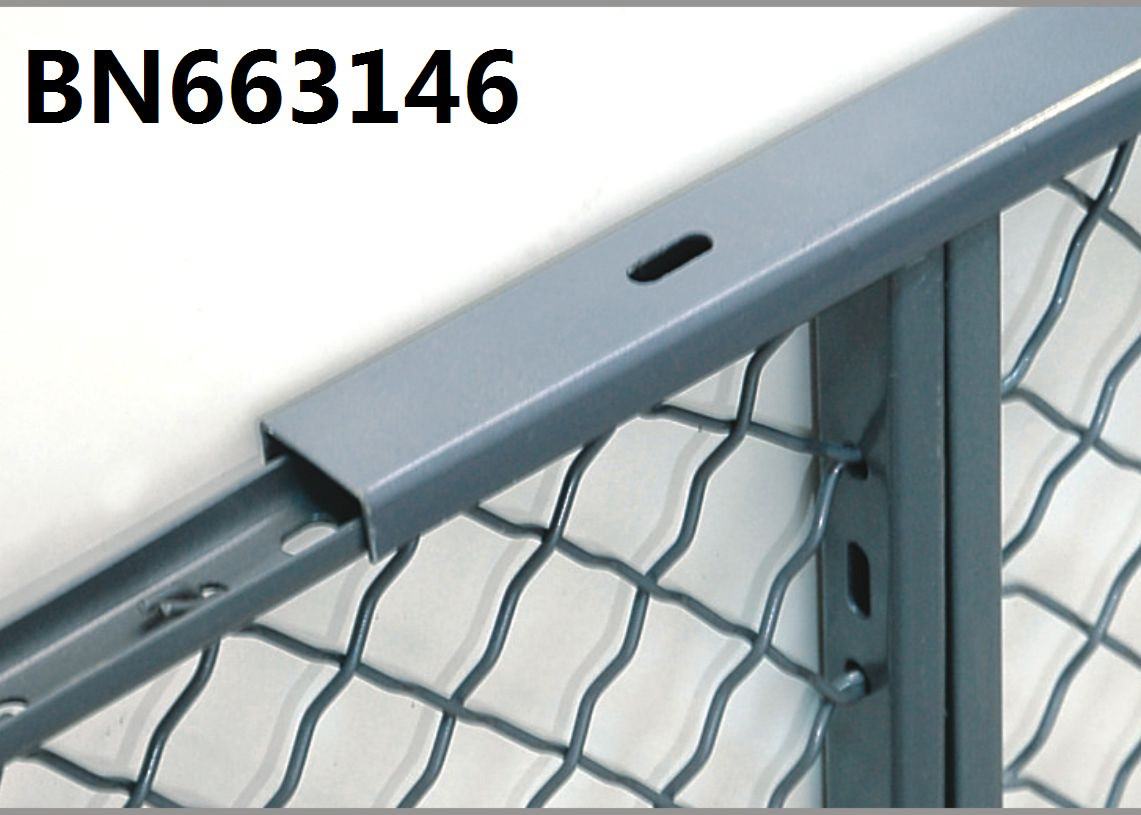

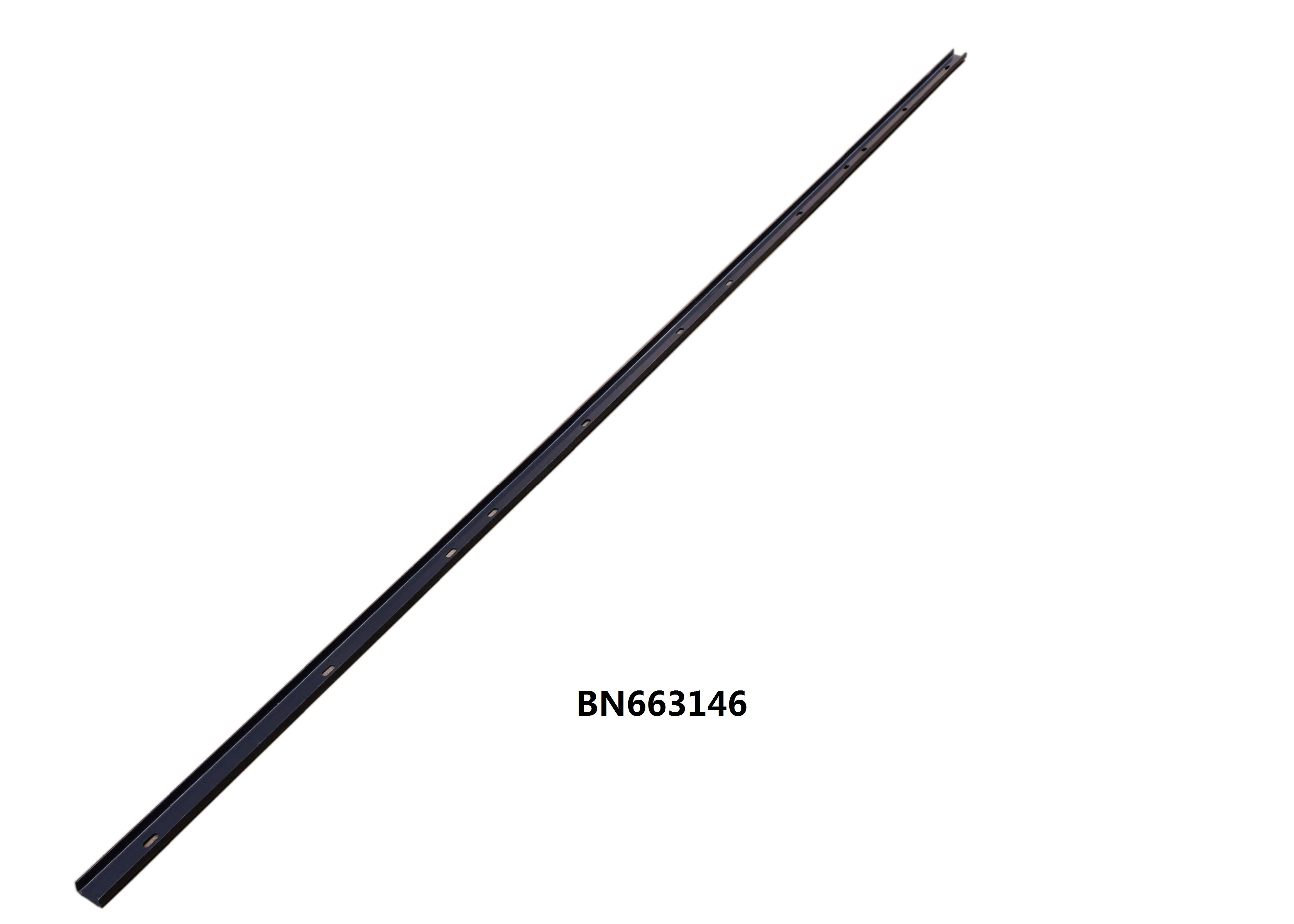

Steel Channel C Shape 10 Feet Long Top Capping for Woven Wire Mesh Partition Rooms



Description

Steel channel C sahpe10 feet long top capping ties partition into a continuous, rigid line. Splice plates are included with top capping. Calculate the total linear feet and round up to the nearest multiple of 10, and divide by 10 for the number of top capping sections. Woven wire mesh security rooms provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise door lock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details



Options

Hinged door

Service window

Sliding Door

Roof



Application

Designed for Machine Guard

Protect and control access to work areas, inventory and equipment.

Create enclosed, lockable areas for securing valuables

Separating and securing any space in industrial, commercial, or governmental environments

Enclose work areas, to create secure storage cages in factories and to provide access control and loss prevention

Perfect for stock rooms and commercial storage facilities



Features

- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Floor sockets to be cast aluminum.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated industrial Grey



Specifications

PART NUMBER BN663146
WIDTH INCH 2 Inch
LENGTH FEET 10 Feet
COLOR FINISH Grey
ASSEMBLY Assembled
BRAND Brynick
CONSTRUCTION C Steel Channel
DESCRIPTION Top Capping
WEIGHT LBS 9 Lbs
