Automated Warehouse Wire Mesh Machine Guarding Systems Powder Coated 51 Lbs

Basic Information
Place of Origin: Ningbo Zhejiang
Brand Name: Brynick
Certification: meets or exceeds OSHA and ANSI specifications
Model Number: BN8020102
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plastic sheet wrapped around the metal framed pallets
Delivery Time: 5-30 days depend on order quantity
Payment Terms: D/P, Western Union, T/T, D/A, MoneyGram, L/C
Supply Ability: 5000 pieces per 30 days
Detail Information
Assembly: Assembled Height: 7 Feet
Width: 4 Feet Brand: Brynick
Material: Welded Steel Weight: 51 Lbs

Product Description

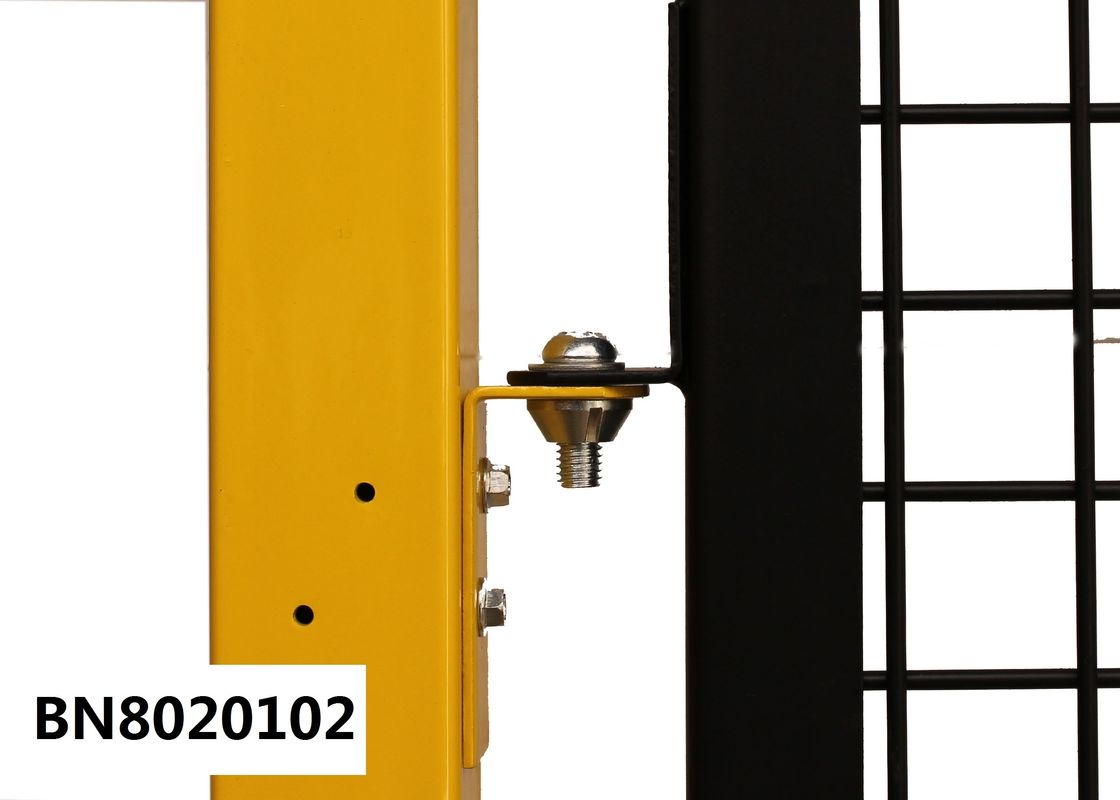

Automated Warehouse Guard Heavy Duty Welded Machine Guard Wire Mesh Panel 4 Feet Width and 7 Feet Height



Description

It can be used to protect staffs in automated warehouse. Mesh wire 8 GA welded into a 1 1/2 x 1 1/2 inch wire partition machine guard panel, height 7 Feet, width 4 Feet, powder coated Finish black color, meets or exceeds OSHA and ANSI specifications. For use with posts and doors, includes 1 panel and 2 safety nuts. All-steel, welded-wire post and panel system held in place with pins, brackets, and safety nuts. Allows up to 12 inch sweep for easier cleaning and can be reconfigured. Safety socket wrench is included. Hinged doors lock. They are made of high quality steel using an automated production process, which ensures a high and consistent product quality. Offer good overview of the production line and protect against particles and fluids from the production process. The panels as well as the posts can be customized to create the desired dimensions. Posts can be made to customer order, while panels are either ordered in the desired size from the factory.



Theory

Operating machinery can cause injuries in many ways:

People can be struck and injured by moving parts of machinery or ejected material. Parts of the body can also be drawn in or trapped between rollers, belts and pulley drives



Sharp edges can cause cuts and severing injuries, sharp-pointed parts can cause stabbing or puncture the skin, and rough surface parts can cause friction or abrasion



People can be crushed, both between parts moving together or towards a fixed part of the machine, wall or other object, and two parts moving past one another can cause shearing

Parts of the machine, materials and emissions (such as steam or water) can be hot or cold enough to cause burns or scalds and electricity can cause electrical shock and burns



Injuries can also occur due to machinery becoming unreliable and developing faults or when machines are used improperly through inexperience or lack of training



Application

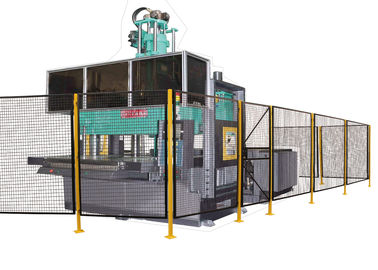

Protect packaging equipment or pallet wrappers which have a moving load and an arm that stretches shrink wrap around the load. Wire partition machine guard can be placed around the wrapper, and stop accessing by a lift truck.



Guard In-Line palletizer with machine guarding, wire partition could be used around the work area with a hinged gate which stops the robot entering.



Protect production environments: The modern industry with advanced processes places significant demands on safety. In particular, there is a great need for controlled access for authorized personnel. By selecting the right size of doors, locks, post and panels based on your needs, you can easily create a complete and integrated machine guarding system. Based on the results of your risk analysis you can select a system based on the impact level which it must be able to sustain, how quick your access to the machinery needs to be and what type of visibility you need in the area. The system should be designed to provide a good overview of the entire area.



Automated warehouse: Machine Guards are used to protect staff in automated warehouses and to secure crane walkways in high-bay storage areas from unauthorized access.



Outdoor environments: Hot-dip galvanized panels and posts designed to be used for outdoor or humid environments. These have corrosion protection, which means that they are suitable for spaces with a moderate level of humidity or airborne pollution from production processes.



Hygienic screening: Machines intended for use with food products, cosmetics and hygiene products or pharmaceuticals should be constructed to ensure that there is no risk of infection, disease or contamination.



Specification

Components Panel
For Use With Posts and Doors
Item wire partition panel
Height 7 Feet
Width 4 Feet
Assembly Assembled
Brand Brynick
Standards Meets or exceeds OSHA and ANSI
Finish Powder Coated
Color Black
Include 1 panel and 2 safety Nuts
Construction 8 Gauge Steel Wire
Material Welded Steel
Weight 51 Lbs
