Adjustable Aluminum Dock Plate Leveler 36 X 24 Inch Diamond Thread Surface

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: in Compliance with ANSI Standard MH30.2 OSHA 1910.3 Compliant
Model Number: BN813624
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Cardboard Box per set and 50 sets per forkliftable pallet tray in shrink wrapped to prevent moist
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 sets
Detail Information
Description: Dock Plate Width: 36 Inch
Length: 24 Inch Material: 3/8" Aluminum
Assembly: Unassemled Weight: 35 Pounds

Product Description

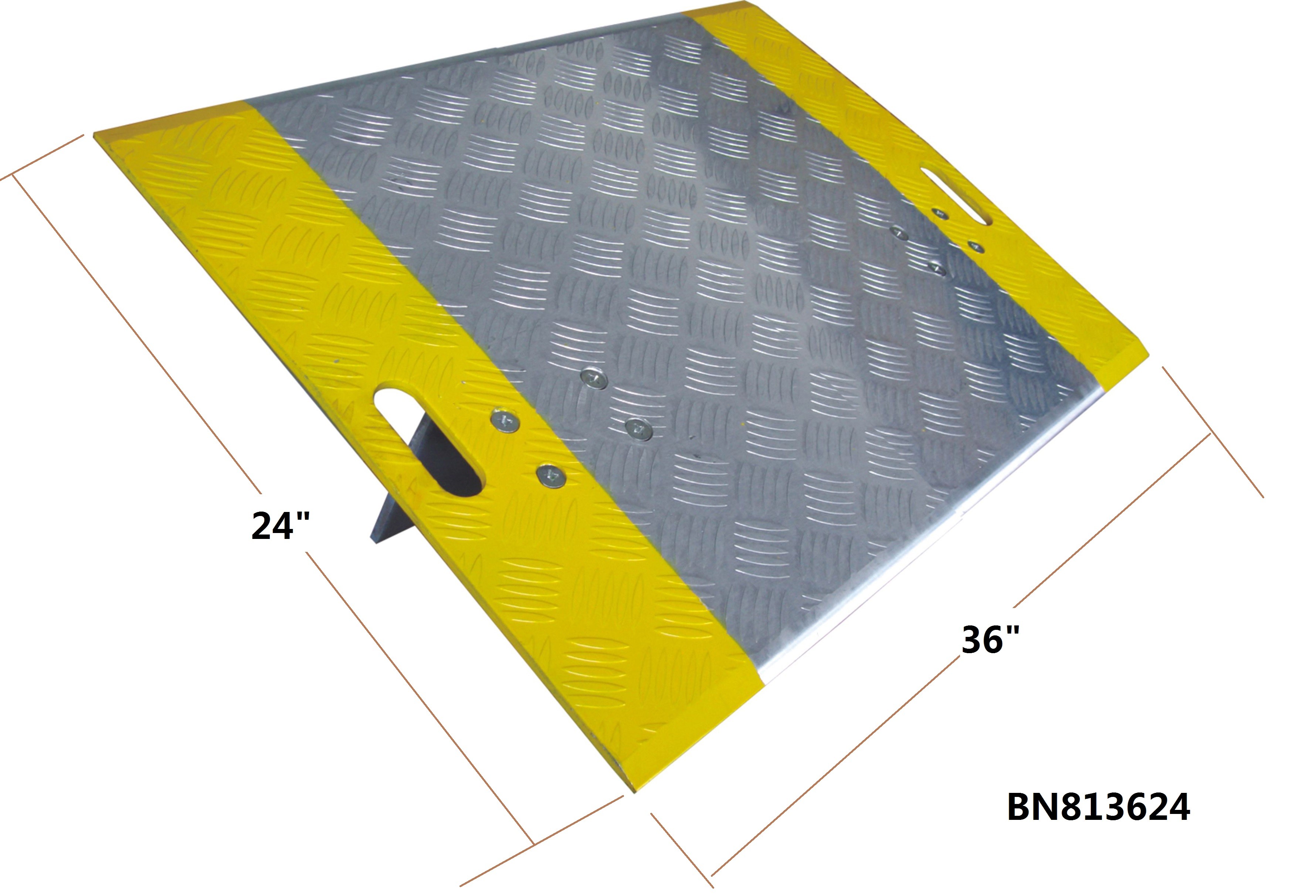

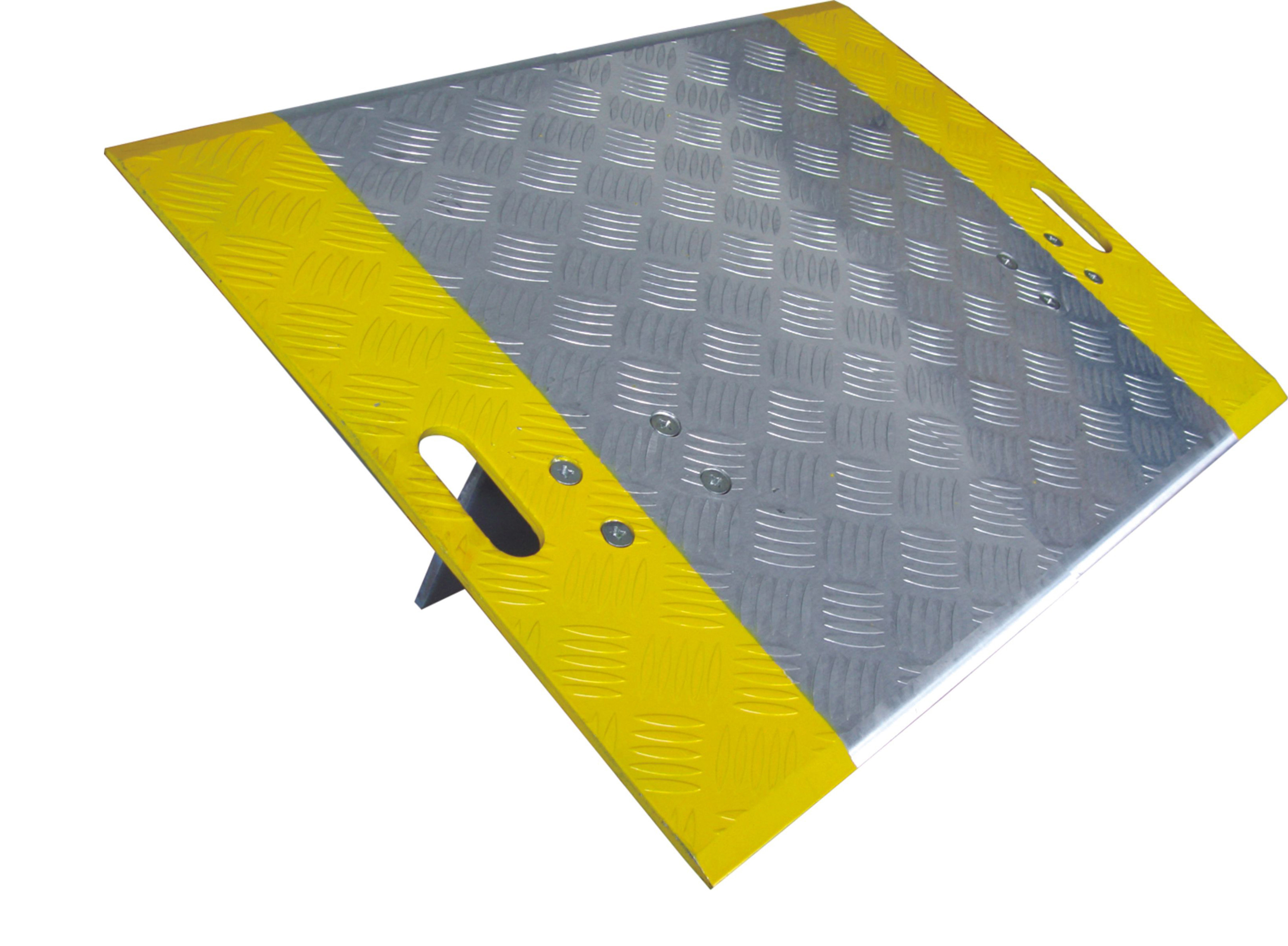

Diamond Thread Surface Aluminum Dock Plate 36 inch wide X 24 inch Long



Description

Dock plates feature a slip-resistant diamond tread surface with orange painted sides for edge awareness. This lightweight aluminum dock plates provide a smooth transition from the trailer to the dock. Ideal for pallet trucks and other non -motorized loading equipment. Features of these dock plates include two triangle steel lock legs to secure the dock plate in place and bolt underneath, handles make it easy to be moved or positioned by two people. A 11" lip bend and beveled edges provide a smooth transition from the trailer to the dock making them perfect for pallet jacks and other non-powered loading equipment applications. Sides are painted orange for edge awareness. Capacity (equipment and load combined) depends on the model selected, ranges from 2,660 lbs to 3,700 lbs.



Feature

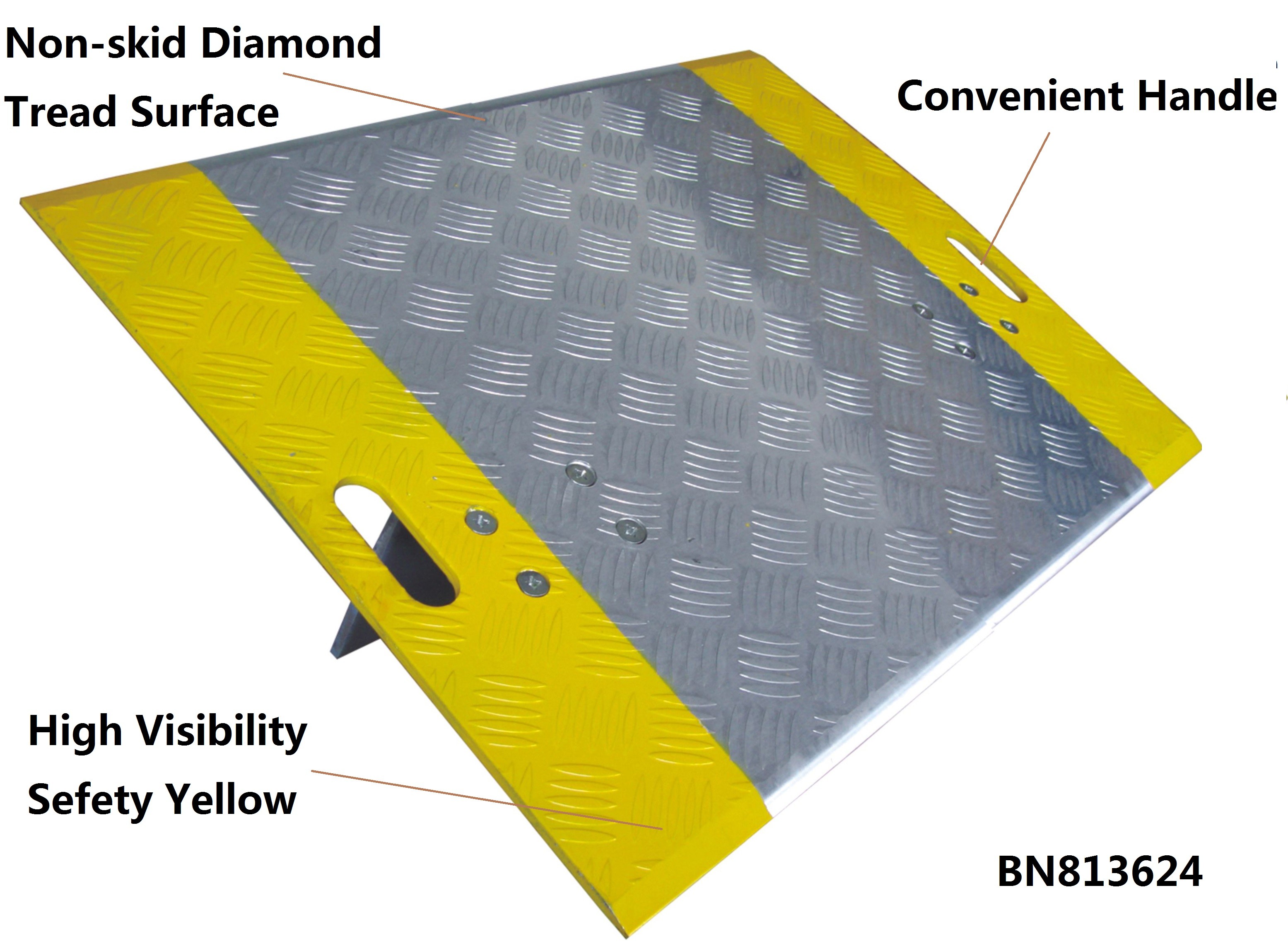

  • Manufactured from lightweight, high-strength aluminum
  • Skid resistant in all kinds of weather
  • 6 sizes to choose from with weight capacities ranging from 2,660 to 3,700 lbs.
  • Machine beveled edges provide smooth loading transition

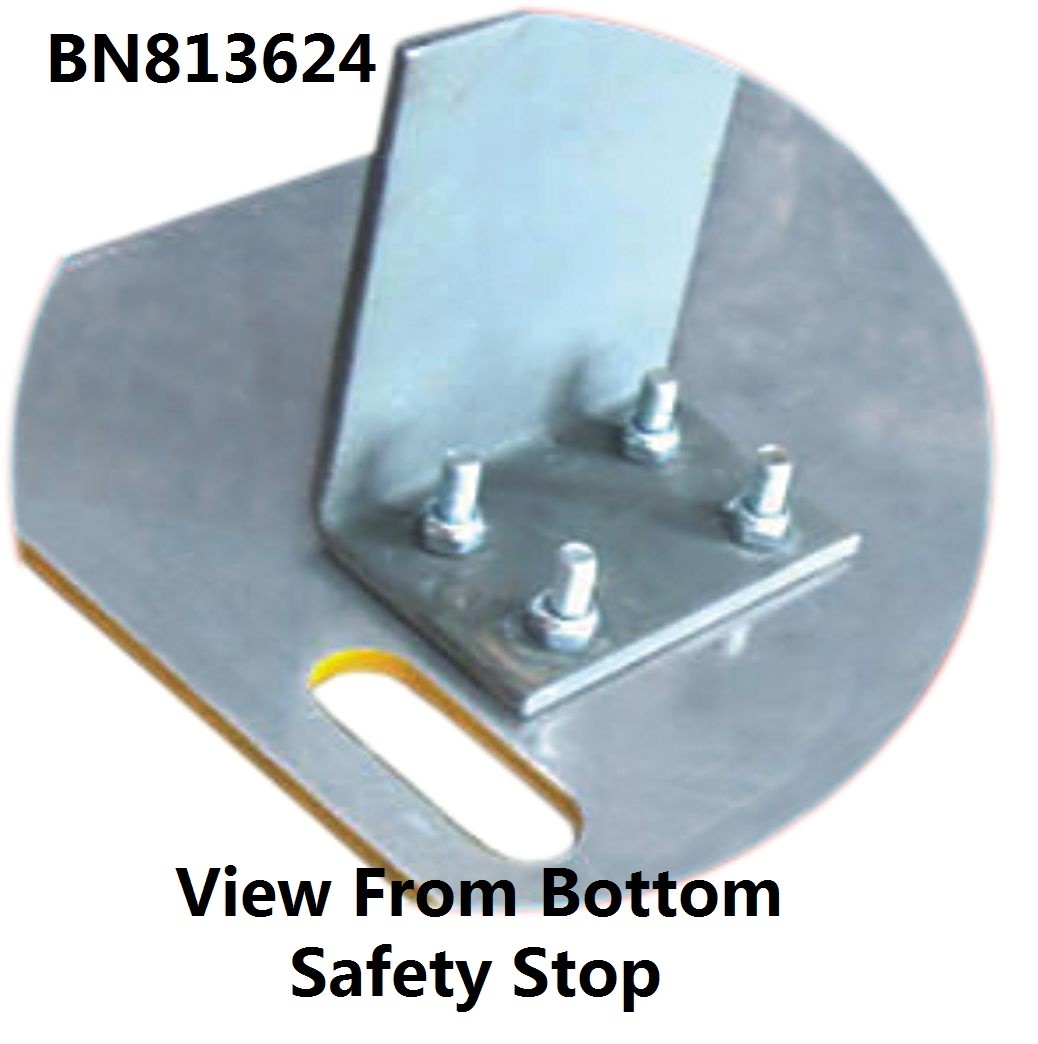

  • Safety legs secure plate between dock and trailer
  • Gradual 11° bend keeps edges flush with dock
  • Portable Hand holes for easy moving
  • For hand, platform or pallet trucks only



Application

  • Non power equipment such as forklift dock loading
  • Low-cost solution to bridge the gap between trucks, trailers and your loading docks
  • Bolt-on steel legs for securing position between the dock and the trailer
  • Used with hand trucks only
  • Lip bend is 11°. Standard lip length for conventional trailers is 11. Aluminum dock plates are designed to work well with pallet trucks or other non-powered dock loading equipment. Machine beveled deck edges allow for smooth transition



Specification

Description Dock Plate
Part Number BN813624
Width 36 inch
Length 24 inch
Material 3/8" Aluminum
Assembly Unassembled
Weight 35 Pounds
Capacity 3350 pounds
Original China
Finish Painted
Color Orange
Leg 2
Leg Material Triangle Steel
Use with Pallet Truck
