high capacity Aluminum Dock Plate for pallet trucks 5 *4 Feet Damage Preventing

Basic Infomation
Place of Origin: China
Brand Name: Brynick
Certification: in Compliance with ANSI Standard MH30.2 OSHA 1910.3 Compliant
Model Number: BN816048
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Cardboard Box per set and 50 sets per forkliftable pallet tray in shrink wrapped to prevent moist
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 sets
Detail Infomation
Capacity: 2660 Lbs Weight: 100 Lbs
Width: 5 Feet Finish: Paint At Edge
Color: Orange Leg: 2 Underneath

Product Description

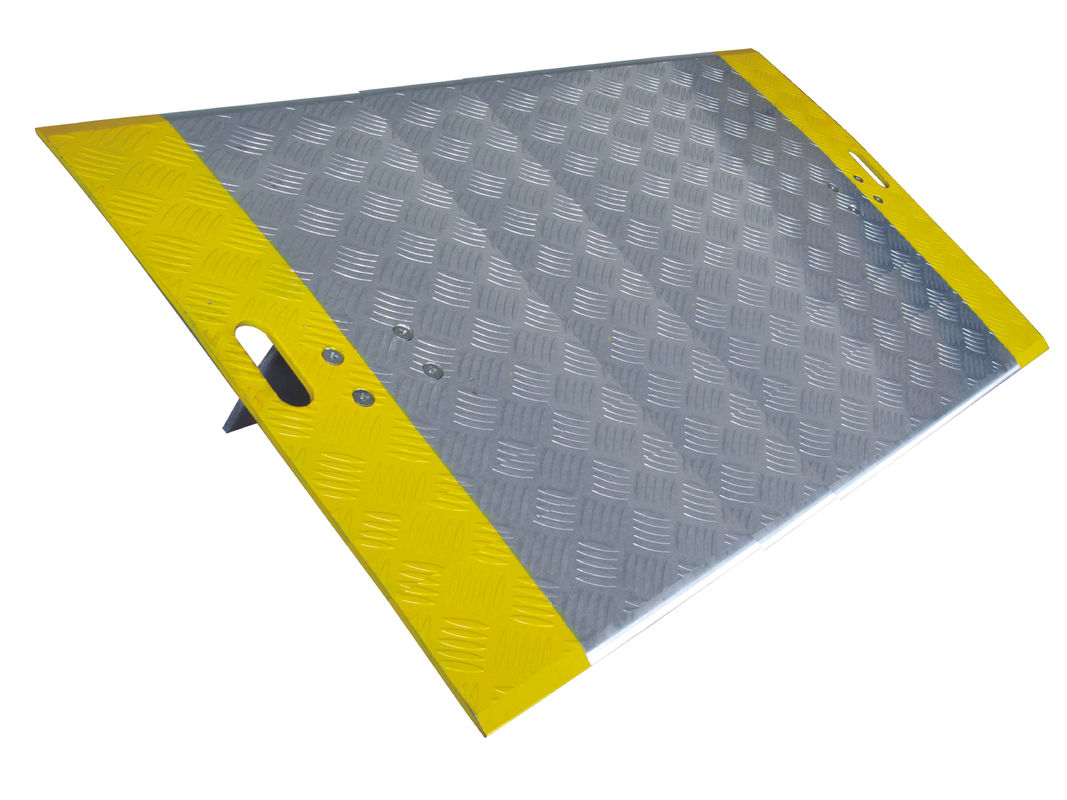

Damage Preventing Aluminum Dock Plate 5 Feet Wide and 4 Feet Long, Capacity of 2660 Pounds



Feature

  • Gradual 11° bend keeps edges flush with dock
  • Aluminum diamond dock plate is skid resistant in all kinds of weather
  • Safety legs secure plate between dock and trailer
  • Manufactured from lightweight, high-strength aluminum
  • Slip resistant diamond tread surface
  • Portable Hand holes for easy moving
  • For hand, platform or pallet trucks only
  • 6 sizes to choose from with weight capacities ranging from 2,660 to 3,700 lbs.



Description

Diamond tread surface aluminum dock plate provides more traction points per square foot than normal surface. Lightweight 3/8 thick T6061 aluminum withstands heavy traffic but lifts easily using 2 side handholds. The 11” lips with beveled edges and an 11° crown provide smooth, efficient entry and exit. Aluminum Plates are specially designed for the safe transport and distribution of industrial, medical and specialty product between docks and your trucks or trailers. Plates are made of 3/8” aluminum diamond plate. These plates are light enough to be easily maneuvered by hand yet strong enough to accommodate capacities of up to 2,660 lbs. Prevent damage to the merchandise transported, while minimizing the risk of personnel injury and property damage. Plates provide a smooth transition surface for manually maneuvering in a fully controlled manner. Bottom includes a bolted safety stop to keep plate in position. Note that width should be 12 wider than load. Not for use with power equipment like forklift, only hand truck.





Application

  • Non power equipment such as forklift dock loading
  • Low-cost solution to bridge the gap between trucks, trailers and your loading docks
  • Bolt-on steel legs for securing position between the dock and the trailer
  • Used with hand trucks only
  • Lip bend is 11°. Standard lip length for conventional trailers is 11. Aluminum dock plates are designed to work well with pallet trucks or other non-powered dock loading equipment. Machine beveled deck edges allow for smooth transition



Specification

Description Dock Plate
Part Number BN816048
Width 60 inch
Length 48 inch
Material 3/8" Aluminum
Assembly Unassembled
Weight 100 lbs
Capacity 2660 pounds
Original China
Finish Painted
Color Orange
Leg 2
Leg Material Triangle Steel
Use with Pallet Truck
