Assembled Heavy Duty Metal Shelving Rack Shrink Packed 3 Steel Deck Supports

Basic Information
Place of Origin: Zhejiang China
Brand Name: Brynick
Certification: N/A
Model Number: BN630543
Minimum Order Quantity: 1 Pack
Price: Negotiable
Packaging Details: 3 piece packed in shrink wrapped plastic, and 500 pack in pallet rack
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 pairs per 30 days
Detail Information
Part: Deck Support Overall Length: 4 Feet
Material: 16 GA Steel Assembly: Assembled
Color: Grey Quantity: 3 Per Pack

Product Description

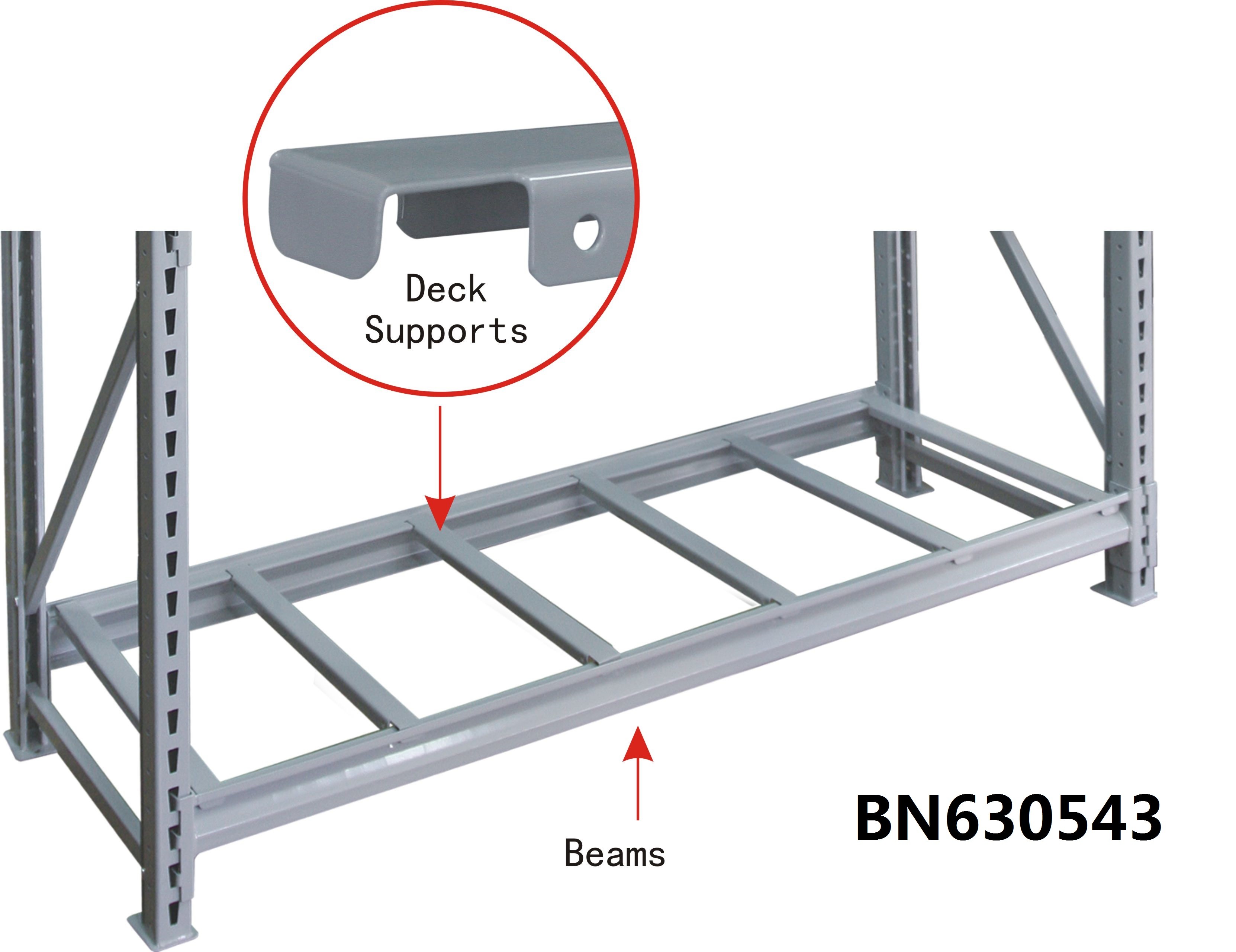

Shrink Packed 3 Steel Deck Support 48 Inch long for Wire Decking



Features

  • Includes 3 supports per shelf
  • Deck supports drop between 2 beams to eliminate twisting under load and prevent
  • Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
  • Easy assembly with tools in the package
  • Z shape to place beam under extra load and provide protected surface for labeling
  • Formed front edge for easy sliding on and off
  • 5/8" step recess puts decking flush with top of beam
  • Keystone slots for Beam snap into place and adjust on 2" increments
  • 3 hooks at each side of the beam assure absolute rigidity
  • Welded footplates for floor mounting
  • Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency



Description

48 inch long deck supports, 3 per level for the wire mesh deck to increase extra rigidity of the racking. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments. 3 hooks at each end of the beam allow positive connection with the upright. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.



Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf



Specification

Description Deck Support
Part Number BN630543
Use With Beam
Type Formed Steel
Overall Length 48 inch
Material 16 GA Steel
Assembly Unassembled
Color Grey
Finish Powder Coated
Shelf Adjustments 2"
Package 3 pieces
Original China
