Durable Metal Mesh Partitions , Adjustable Wire Mesh Security Partitions 18 Lbs

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BNAP0708
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Shrink Wrapped with pallet
Delivery Time: 5-30 days based on order quantity
Payment Terms: Western Union, T/T, MoneyGram, D/A, D/P, L/C
Supply Ability: 5000 pieces per mon
Detail Information
Width: 1 1/2 To 12 Inch Color: Grey
Height: 8 Feet Weight: 18 Lbs
Material: Punched Sheet Description: Adjustable Panel

Product Description

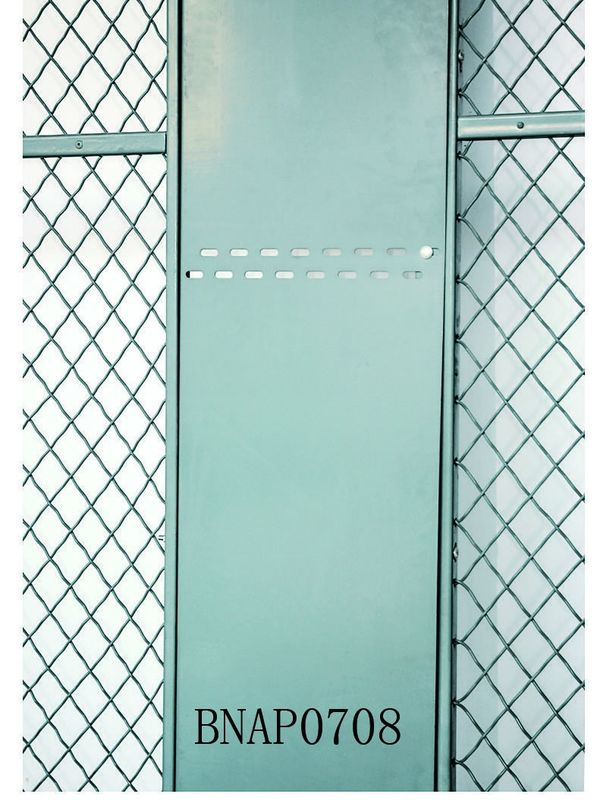

Adjustable Metal Panel for Woven Wire Mesh Partition 8 Feet High and Up to 12 Inch Width



Description

Adjustable panel can fill a gap less than 12 inch for 8 foot high panel wall. Use this adjustable-in-size panel to fill a gap ranging from 1-1/2" to 12" wide. Connects wire mesh panels up to 12" apart. Woven wire mesh security rooms provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise doorlock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details. Add suffix A to any model to include sliding service window 5’ wide, padlockable with 12” depth shelf.



Application

Protect and control access to work areas, inventory and equipment

Enclose work areas, to create secure storage cages in factories and to provide access control and loss prevention in warehouse and transit center

Enclosed, lockable areas for service and data security

Separating and securing space in industrial, commercial, or governmental environments

Security for stock rooms and commercial storage facilities as post office



Features

- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- Floor sockets to be cast aluminum.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- Finish to be powder coated industrial Grey



Specifications

PART NUMBER BNAP0708
WIDTH FEET 1 ½ TO 12 Inch
HEIGHT FEET 8 Feet
COLOR FINISH Grey
ASSEMBLY Assembled
BRAND Brynick
CONSTRUCTION Steel Sheet
DESCRIPTION Adjustable Panel
WEIGHT LBS 18 Lbs
