C Shape 8 Feet Heavy Duty Steel Posts For Woven Wire Mesh Partitions Anticorrosive

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BNCP7108
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Packed Horizontally on a palletized metal base
Delivery Time: 5-30 days depend on order quantity
Payment Terms: T/T, D/P, Western Union, D/A, MoneyGram, L/C
Supply Ability: 10,000 pieces per month
Detail Information
Width: 1 1/4 Inch Color: Grey
Height: 8 Feet Weight: 11 Lbs
Material: Tri-angel Steel Assembly: Welded Foot

Product Description

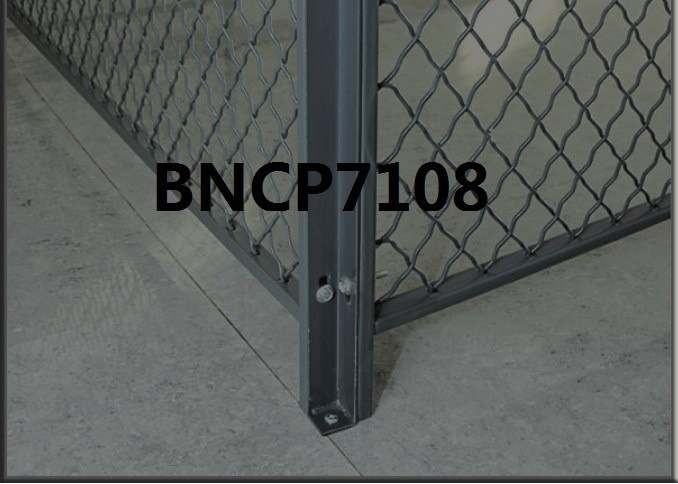

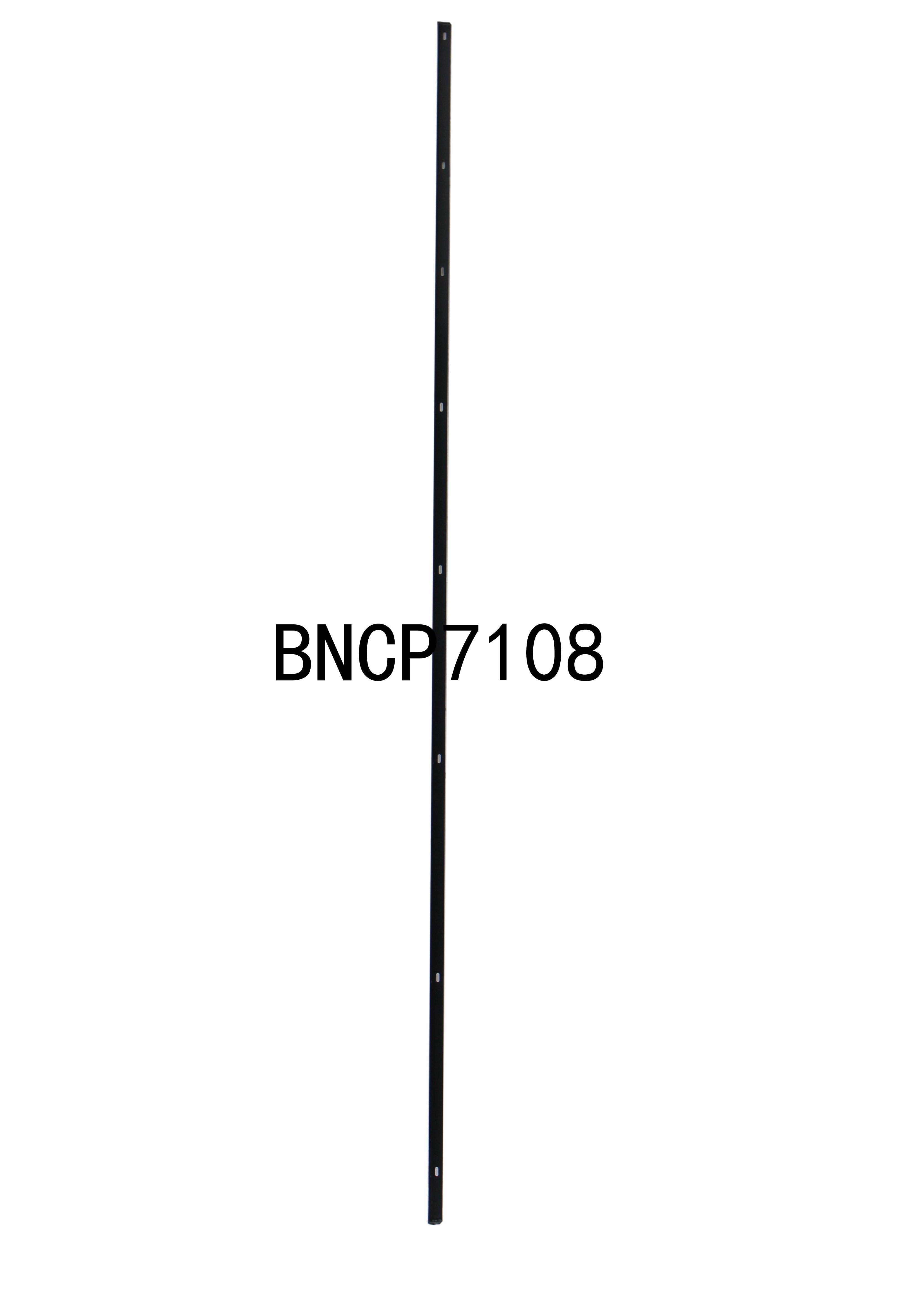

Heavy Duty Steel Corner Post, C shape 8 Feet High for Woven Wire Mesh Partition



Description

Heavy Duty steel 8 feet high post is welded for extra strength. Corner posts are required for each right angle corner connection. Connects wire mesh partitions at a 90 degree angle for corners. Need floor anchoring for stability, panels can be bolted onto the post. Woven wire mesh security rooms provide high-visibility security, safety, protection and access control. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise door lock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details. Add suffix A to any model to include sliding service window 5’ wide, padlockable with 12” depth shelf.



Application

Data Center and livery center

Protect and control access to work areas, inventory and equipment.

Create enclosed, lockable areas for securing valuables.

Separating and securing any space in industrial, commercial, or governmental environments.

Used to enclose work areas, to create secure storage cages in factories and warehouses, and to provide access control and loss prevention.

Perfect for stock rooms and commercial storage facilities



Features

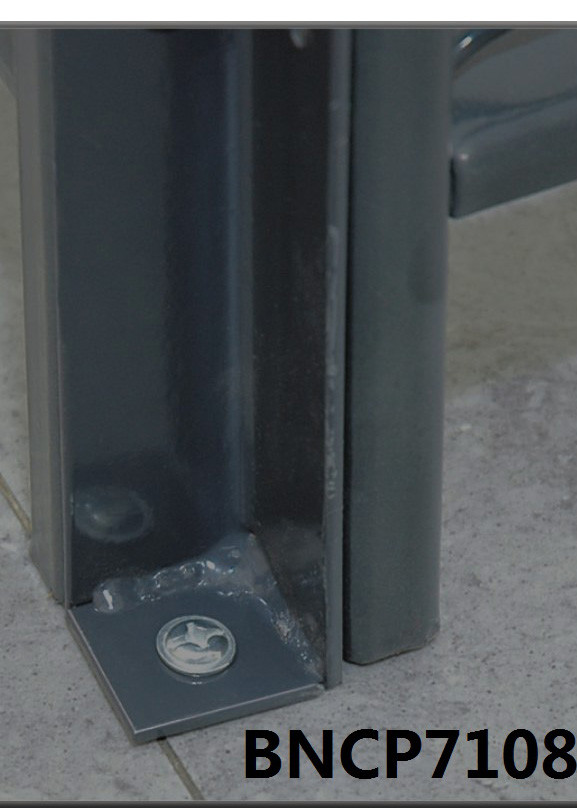

- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.
- Floor sockets to be cast aluminum.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated industrial Grey



Specifications

PART NUMBER BNCP7108
WIDTH FEET 1 ¼ inch
HEIGHT FEET 8 Feet
COLOR FINISH Grey
ASSEMBLY Assembled
BRAND Brynick
CONSTRUCTION Wire Mesh
DESCRIPTION Corner Post
WEIGHT LBS 11 Lbs
