products

Grey Color Heavy Duty Steel Brackets Stand Off Size 100mm Depth Anticorrosive

Basic Information
Place of Origin: Ningbo
Brand Name: Brynick
Certification: Meets or exceeds OSHA and ANSI specifications
Model Number: BN8050302
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: 20 pieces packed in carton box with label outside
Delivery Time: 5-30 days depend on order quantity
Payment Terms: L/C, D/A, Western Union, T/T, MoneyGram, D/P
Supply Ability: 5000 Pieces per month
Detail Information
Parts: Bracket Use With: Mesh Panel And Hardware
Material: 11 Gauge Steel Plate Color: Instrial Grey
Weight: 2 Lbs Include: Hook

Product Description

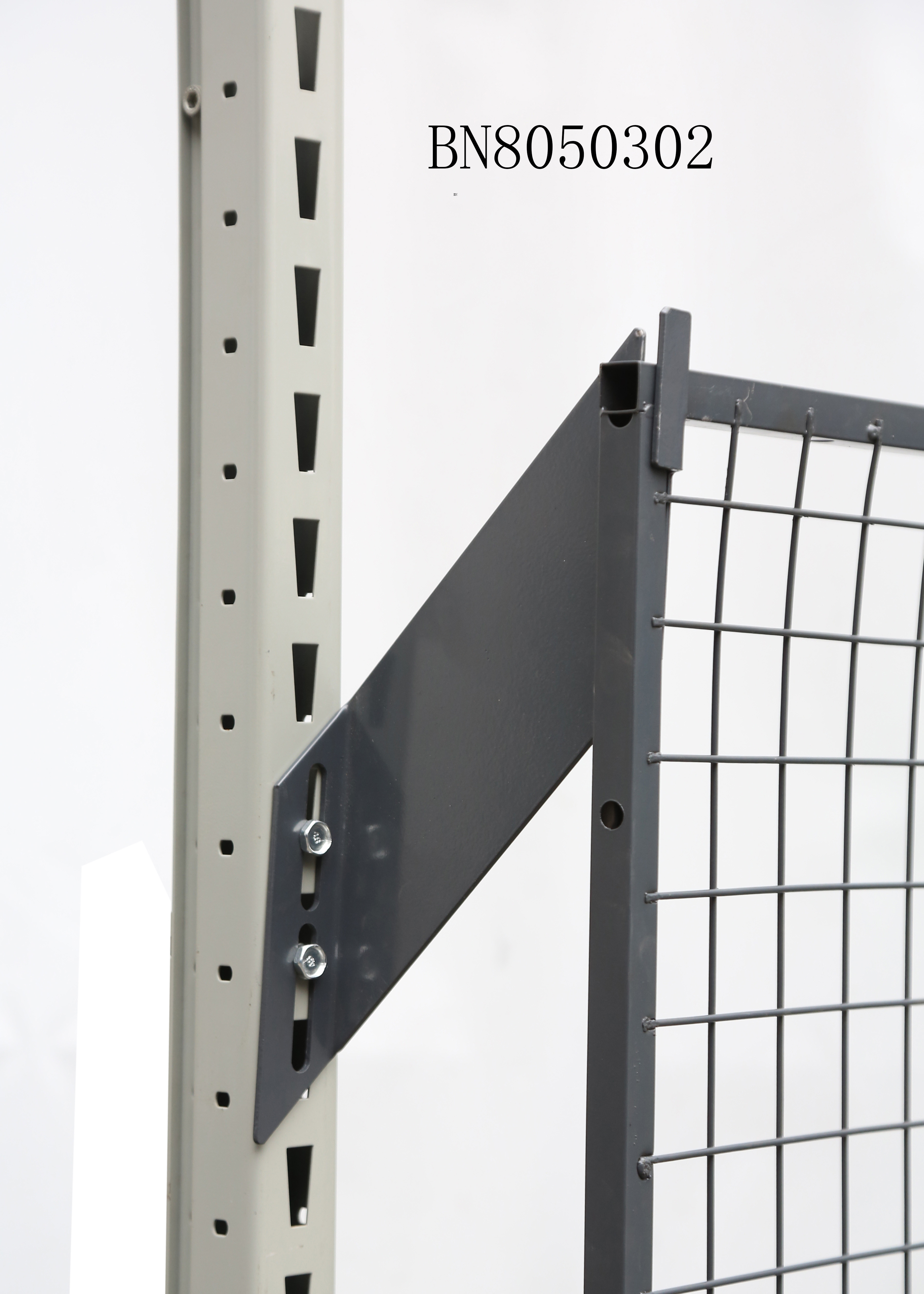

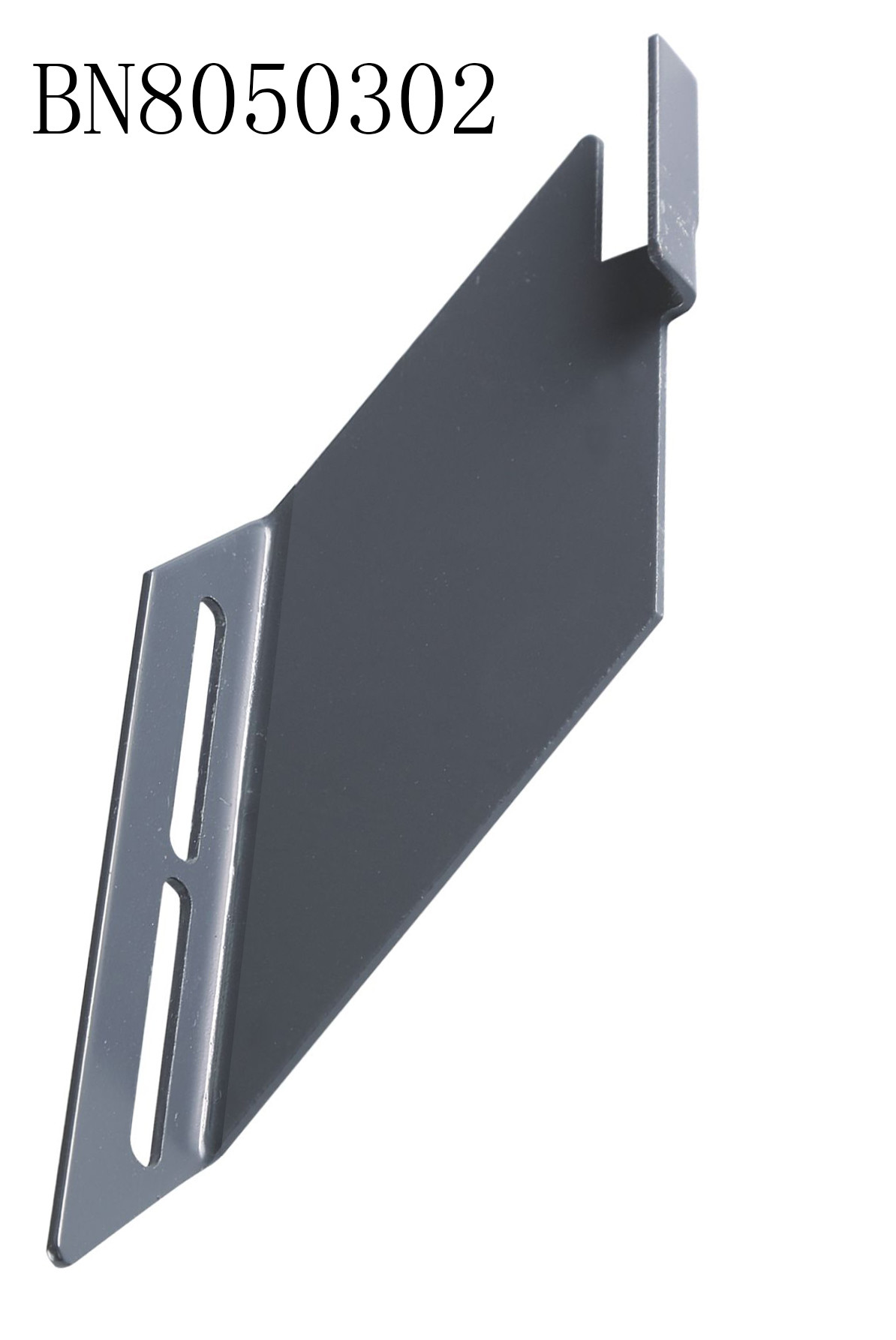

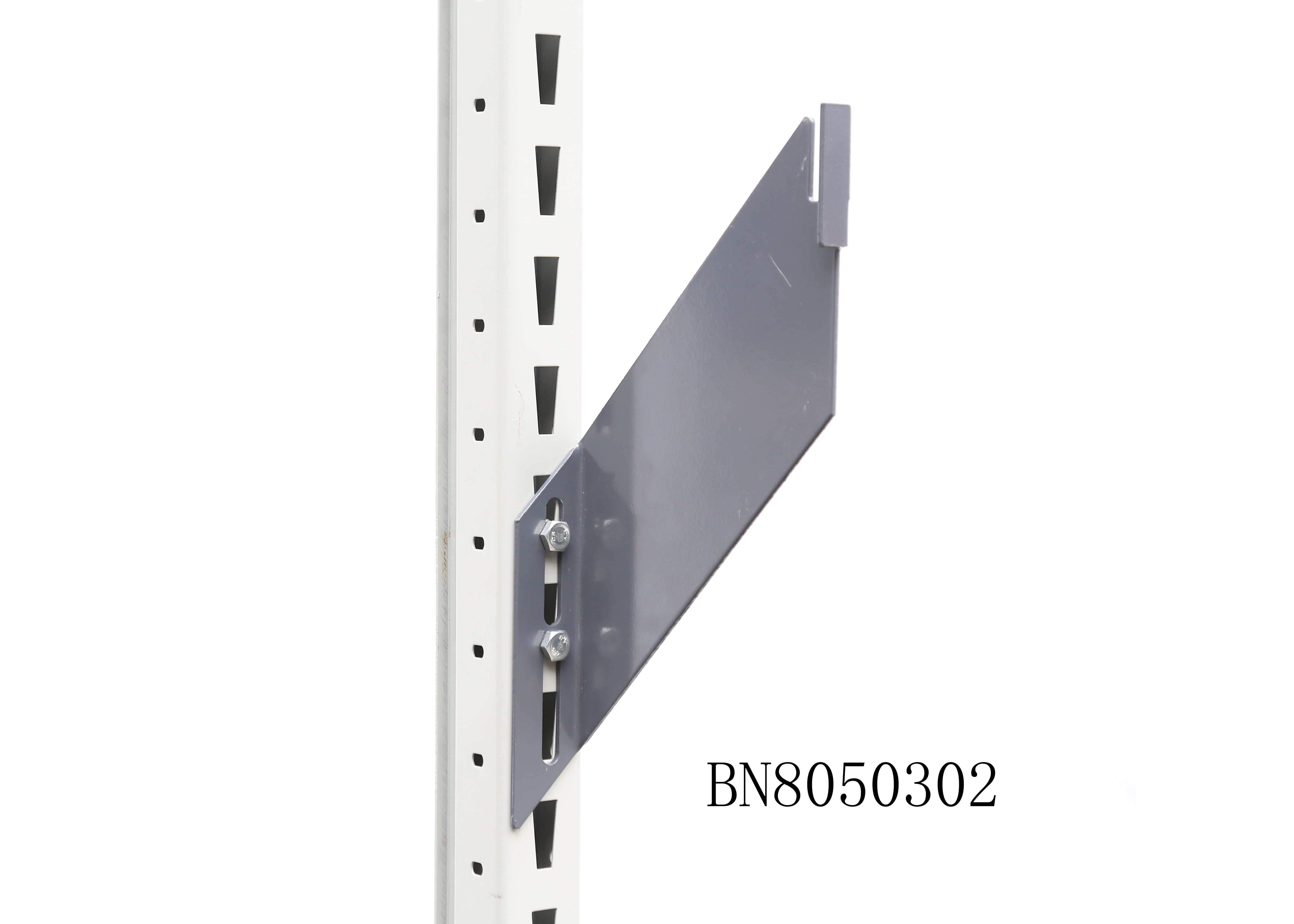

Bend and Punched with Holes for connect Heavy Duty Steel Bracket Stand - off Size 100mm Depth



Description

Meets or exceeds OSHA and ANSI specifications which have very strict requirements validate the safety of products and services in order to protect humans against hazards. Pallet rack backing panels are easy to mount using this 11 gauge extra strong stand-off brackets in 3mm thick that fit the majority of pallet racks, size vary from 50mm, 100mm, 150mm, 200mm, 250mm, 300mm. The system is made from fully welded mesh 11 gauge or 3mm wire welded into 2 inch x 2 inch mesh or 50mm x 50mm mesh, and whole mesh welded onto steel tube frames 19 cm x 19 cm x 1mm, which absorb impacts. Brynick’s anti-collapse pallet rack backing system is the strongest on the market and is a durable barrier against accidents caused by goods falling from or being wrongly knocked off pallet racks. Anti-collapse pallet rack backing is used to protect staff in automated warehouses and to secure crane walkways in high-bay storage areas for unauthorized access. The panels are available in eight sizes with different levels of protection. Easy to install, the pre-drilled mesh panels are simply bolted together by M8 x 60mm and secured to the uprights using a range of universal stand-off brackets. To achieve an optimum fit panels both horizontally and vertically, can be cut to size and finished with a U- profile to enclose exposed wires. Should the RG anti-collapse system be required to be installed above the racking, various sized extension mesh panels can be bolted to create additional height.





Mesh Panels

The mesh panel is the basis of the anti-collapse pallet rack backing system. The panels have a very durable construction with a welded frame and mesh. There are eight different mesh sizes available in order to suit different types of goods in your stock. The Brynick anti-collapse system can be combined with many sizes of pallet rack. Choose between panels from 700 to 1500 mm wide, with a height of either 1100 or 2200 mm. The standard grey color is neutral and makes it easy to see through the mesh, and also mesh panels can be supplied in the color on your choice or galvanized.



Application

To create a physical barrier attach to the back or side of pallet rack to prevent products from dropping.

Improve Your Warehouse Racking

You can easily adapt the anti-collapse pallet rack backing system to your warehousing system. Mesh panel is mounted using brackets that fit the majority of pallet racks. Accessories including fixings and fasteners complete the system. The range of accessories also includes cut sections for adjusting the panels in places where the standard measurements are not completely perfect with a U profile 19 gauge 7/8 inch x 7/8 inch to cover on the cut section to avoid the sharp point which make the site assembly work much easier.



Features

1, Full welded wire mesh 2 inch x 2 inch

2, 19 gauge square tube frame full welded with mesh

3, Extra strong 11 gauge stand-off bracket that fit the majority of the pallet racks

4, 19 gauge U profile cut to fit the rough end of the mesh to avoid the sharp

5, M8 x 60 nylon lock bolt and nut connect the panel for extended the size meet your requirement



Specification

Components Bracket
For Use With Mesh Panel, U profile and hardware
Material 11 Gauge, 3mm

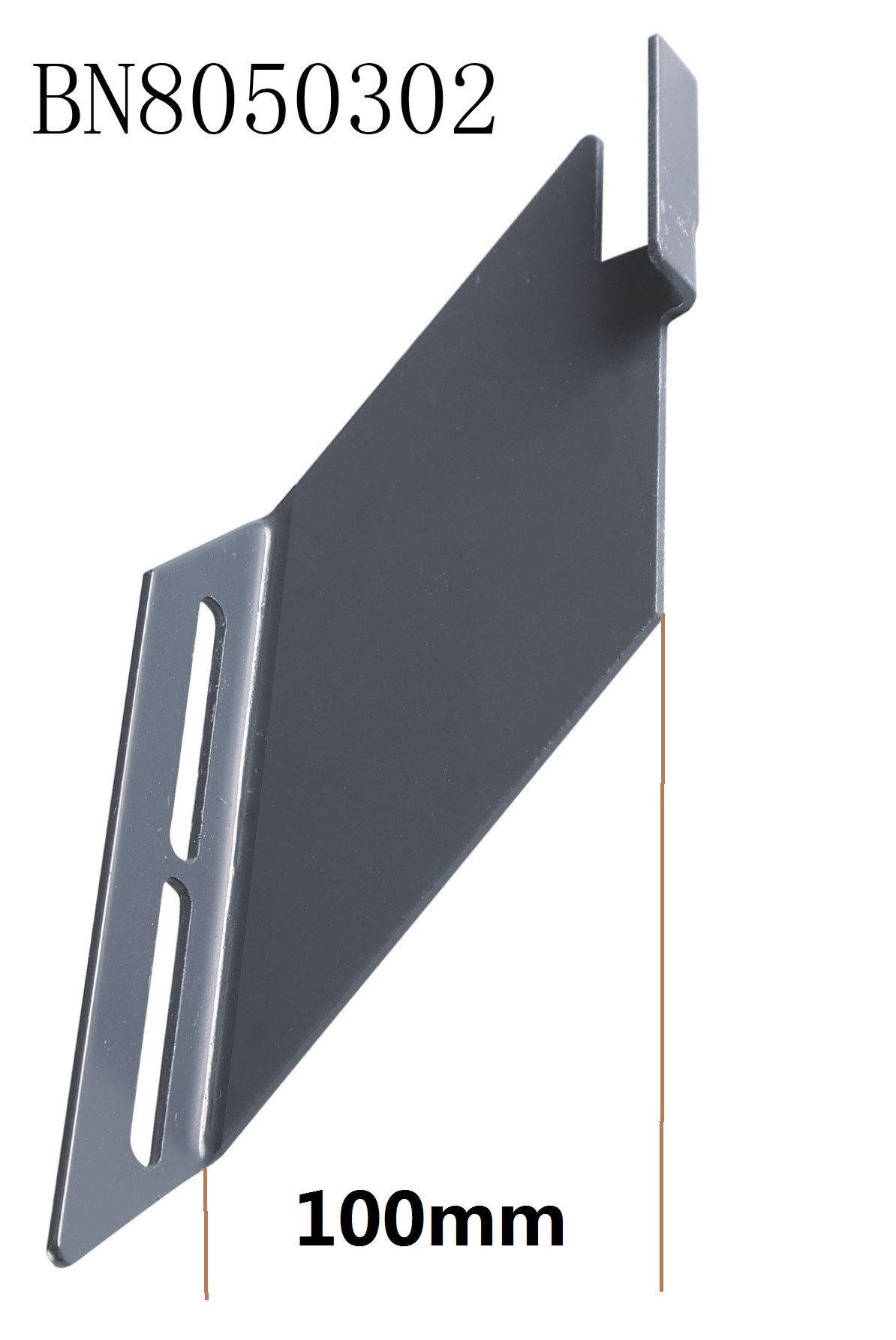

Distance 100mm
Assembly Assembled
Brand Brynick
Standards Meets or exceeds OSHA and ANSI
Finish Powder Coated
Color Grey
Include Hook
Construction Bent and Punched
Connect By Prepunched Holes
Weight 2 Lbs
