Galvanized 4 Ga Steel Wire Mesh Decking For Pallet Racking 60 X 36 Inch Silver Color

Basic Information
Place of Origin: China
Brand Name: Brynick
Certification: N/A
Model Number: BN630515
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Flat in a corned protected pallet with forklift workable base
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 units per 30 days
Detail Information
Part: Wire Deck Type: Wire Mesh
Overall Width: 60 Inch Overall Depth: 36 Inch
Wire Mesh: 2" X 2" Color: Silver

Product Description

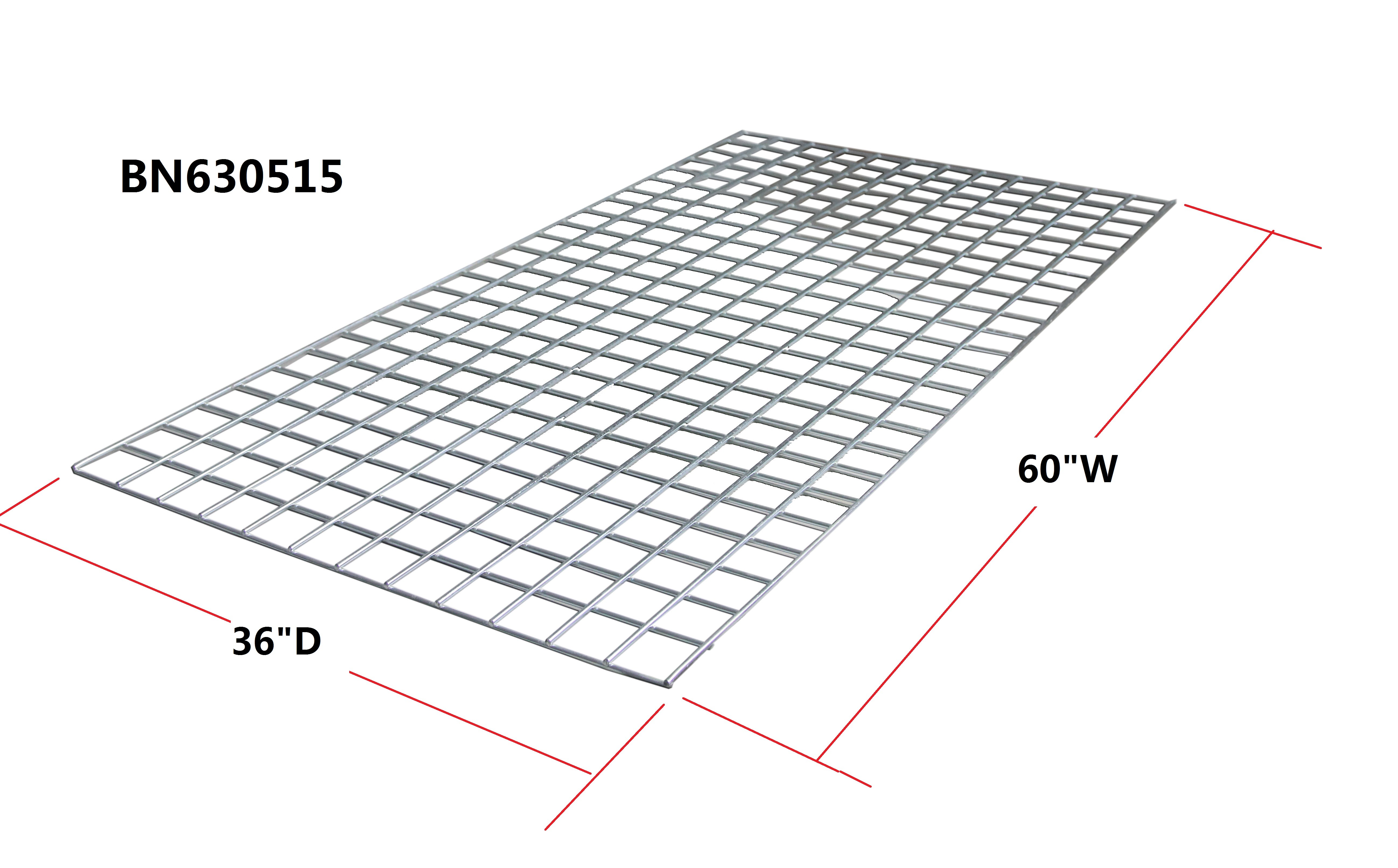

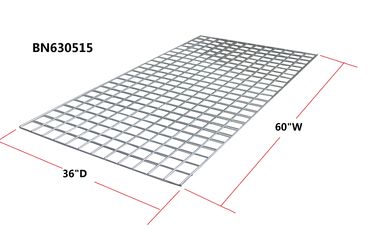

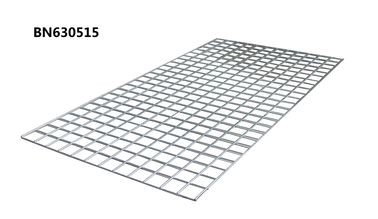

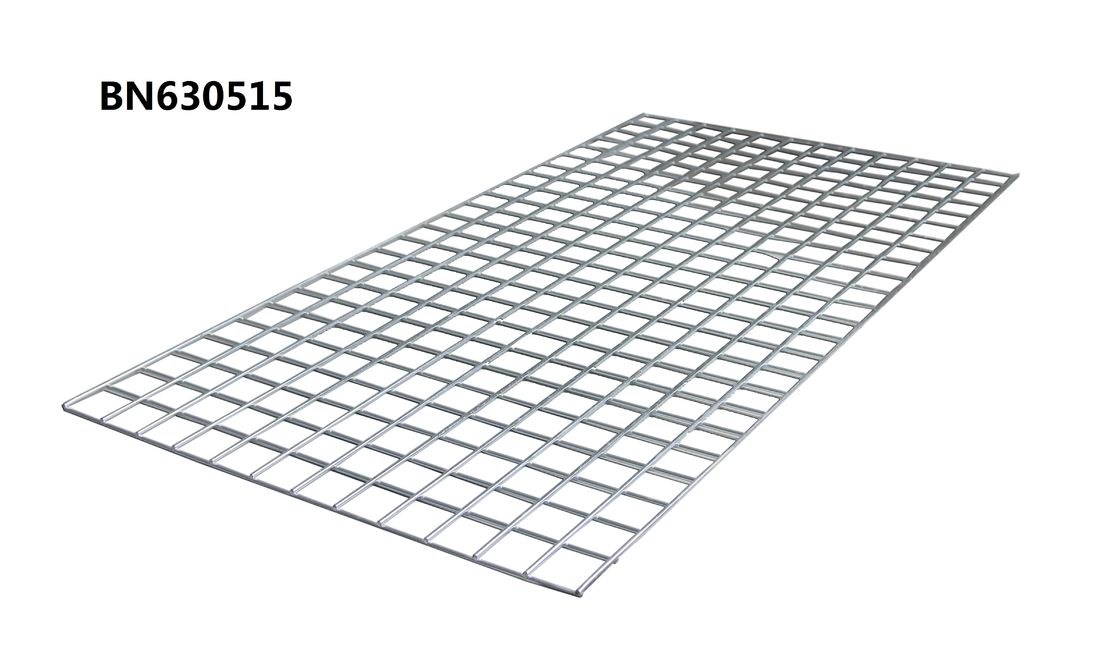

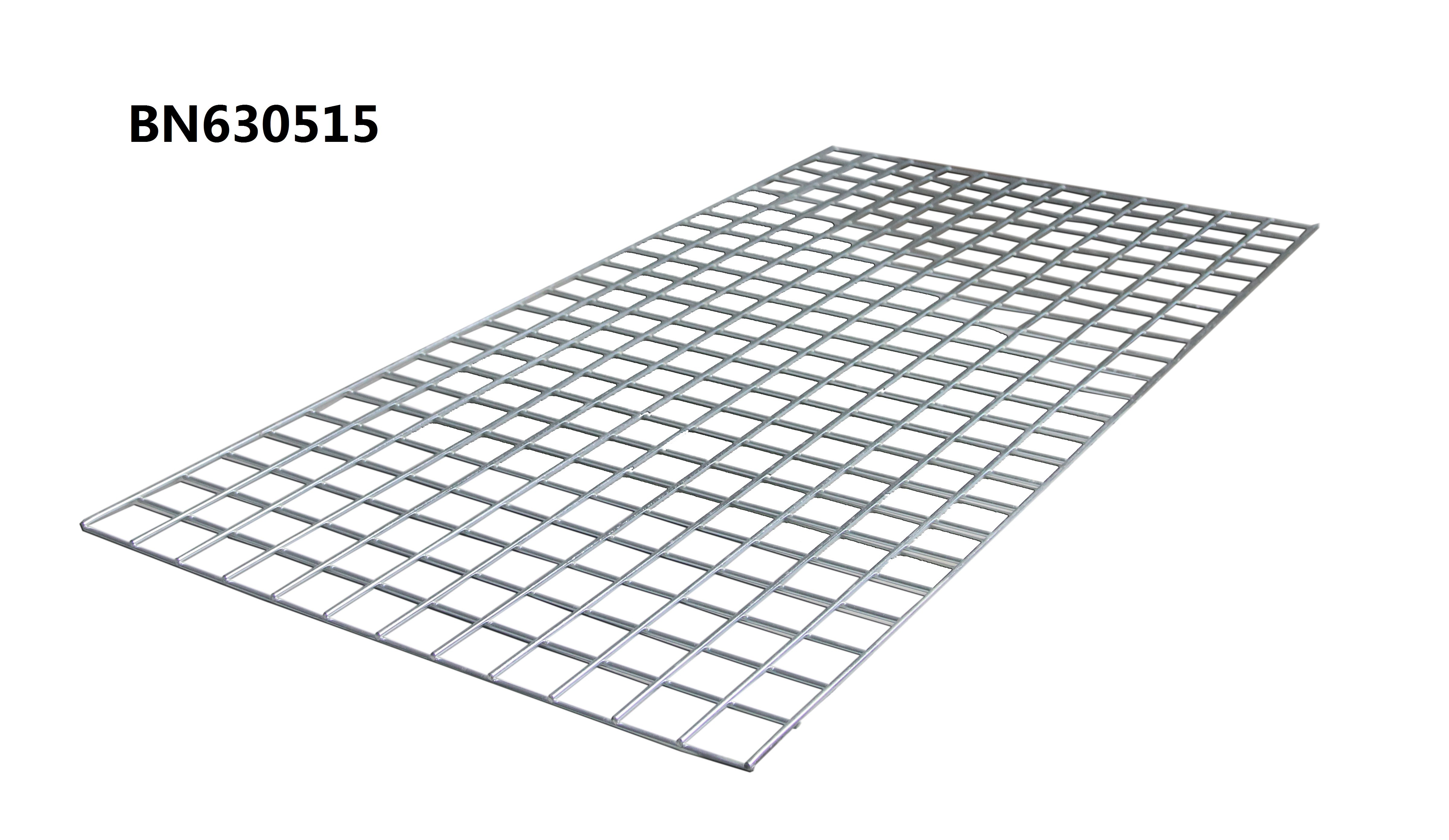

Galvanized 4 Ga Wire Mesh Decking 60 Inch Wide x 36 Inch Depth



Features

  • Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
  • Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
  • Easy assembly with tools in the package
  • Deck supports drop between 2 beams to eliminate twisting under load and prevent
  • Z shape to place beam under extra load and provide protected surface for labeling
  • Formed front edge for easy sliding on and off

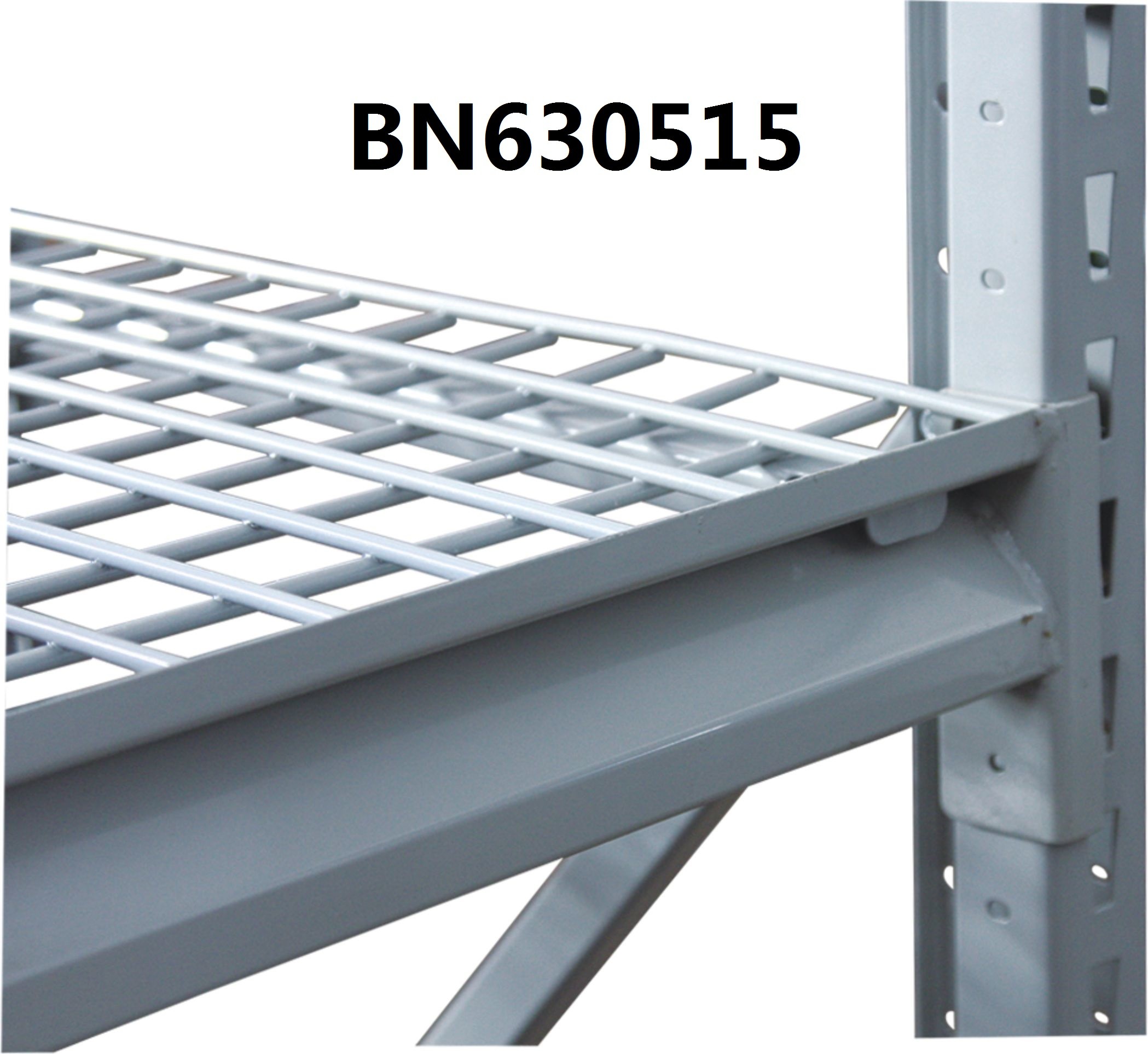

  • 5/8" step recess puts decking flush with top of beam
  • Keystone slots for Beam snap into place and adjust on 2" increments
  • Includes 5 supports per shelf
  • 3 hooks at each side of the beam assure absolute rigidity
  • Welded footplates for floor mounting



Description

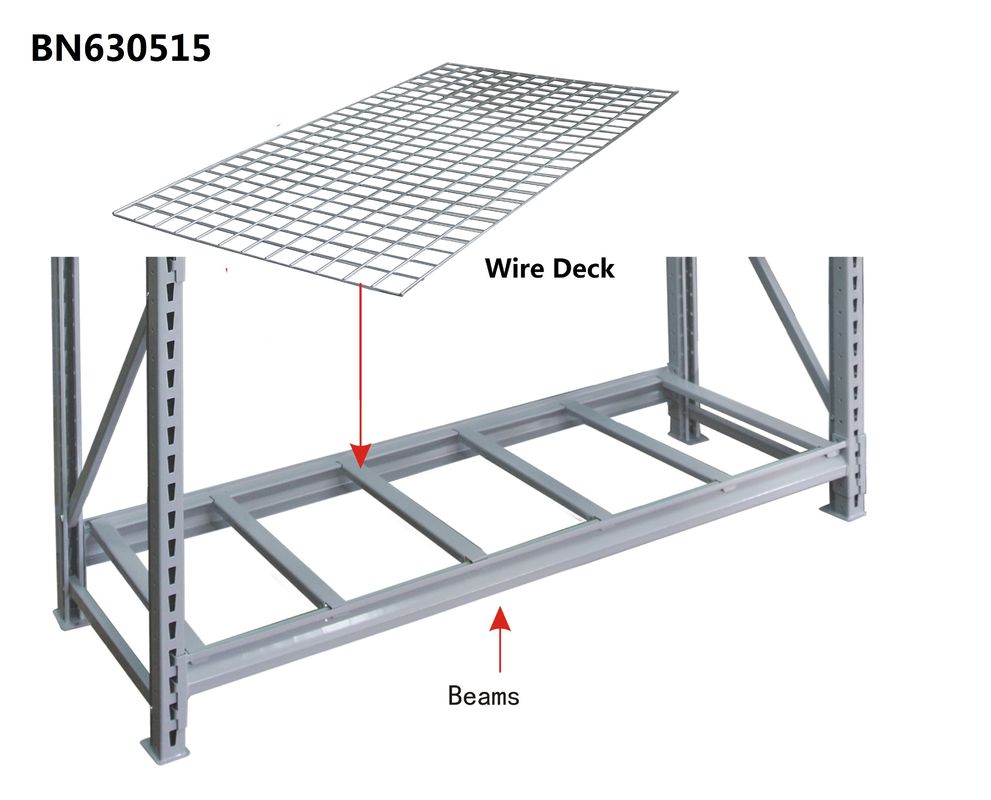

Steel wire mesh decking 2”x2” can drop on to step beams and deck support increase extra stability. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments. 3 hooks at each end of the beam allow positive connection with the upright. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.



Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf



Specification

Description Wire Deck
Part Number BN630515
Type Wire Mesh
Overall Width 60 inch
Overall Depth 36 inch
Wire Mesh 2" x 2"
Assembly Unassembled
Color Silver
Finish Zinc plated
Shelf Adjustments 2"
Original China
