Large Heavy Duty Steel Storage Racks Garage Shelving Unit 48*72 Inch Unassembled

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BN630531
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Shrink wrapped, and packed in box, 100 box per metal rack with framed protected
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, L/C, MoneyGram
Supply Ability: 5000 Units per 25 days
Detail Information
Material: 14 Ga Steel Depth: 4 Feet
Height: 6 Feet Work With: Beams
Assembly: Unassembled Pack: K/D In Box

Product Description

Garage Shelving High Capacity Upright 48 Inch Deep and 72 Inch High



Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf



Features

  • Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
  • Easy assembly with tools in the package
  • Deck supports drop between 2 beams to eliminate twisting under load and prevent
  • Z shape to place beam under extra load and provide protected surface for labeling
  • Formed front edge for easy sliding on and off
  • 5/8" step recess puts decking flush with top of beam
  • Keystone slots for Beam snap into place and adjust on 2" increments

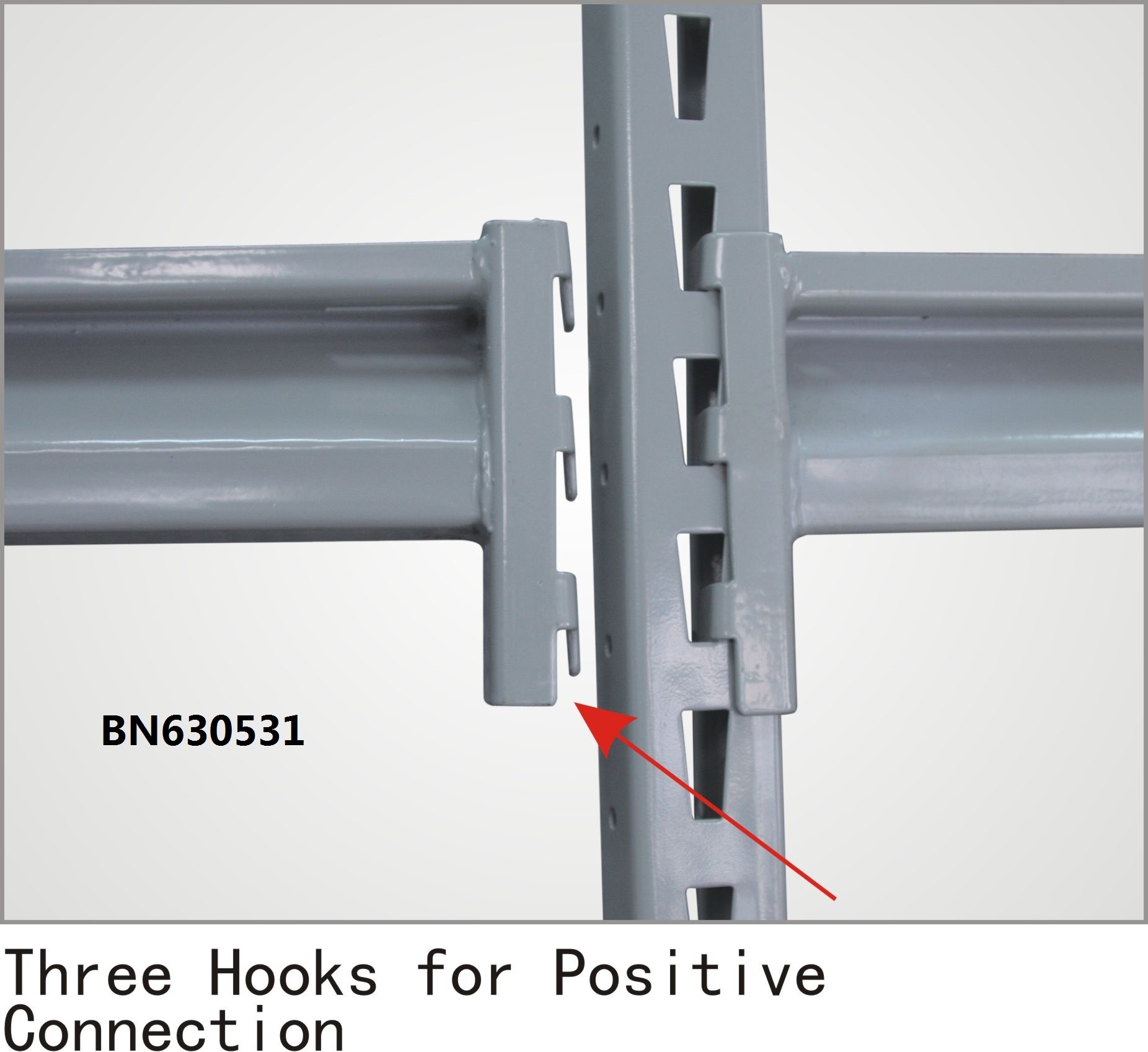

  • 3 hooks at each side of the beam assure absolute rigidity

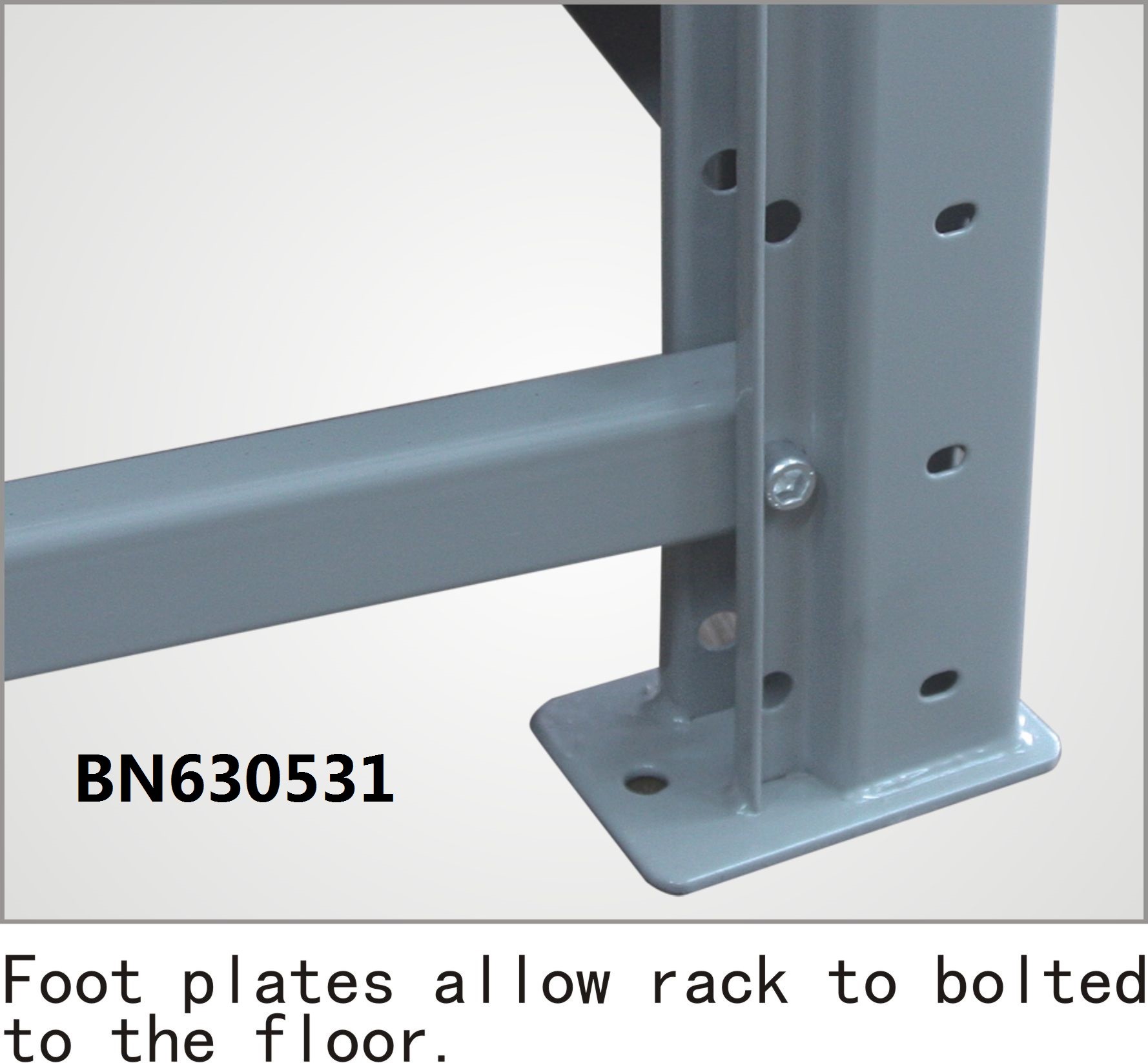

  • Welded footplates for floor mounting
  • Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
  • Includes 5 supports per shelf



Description

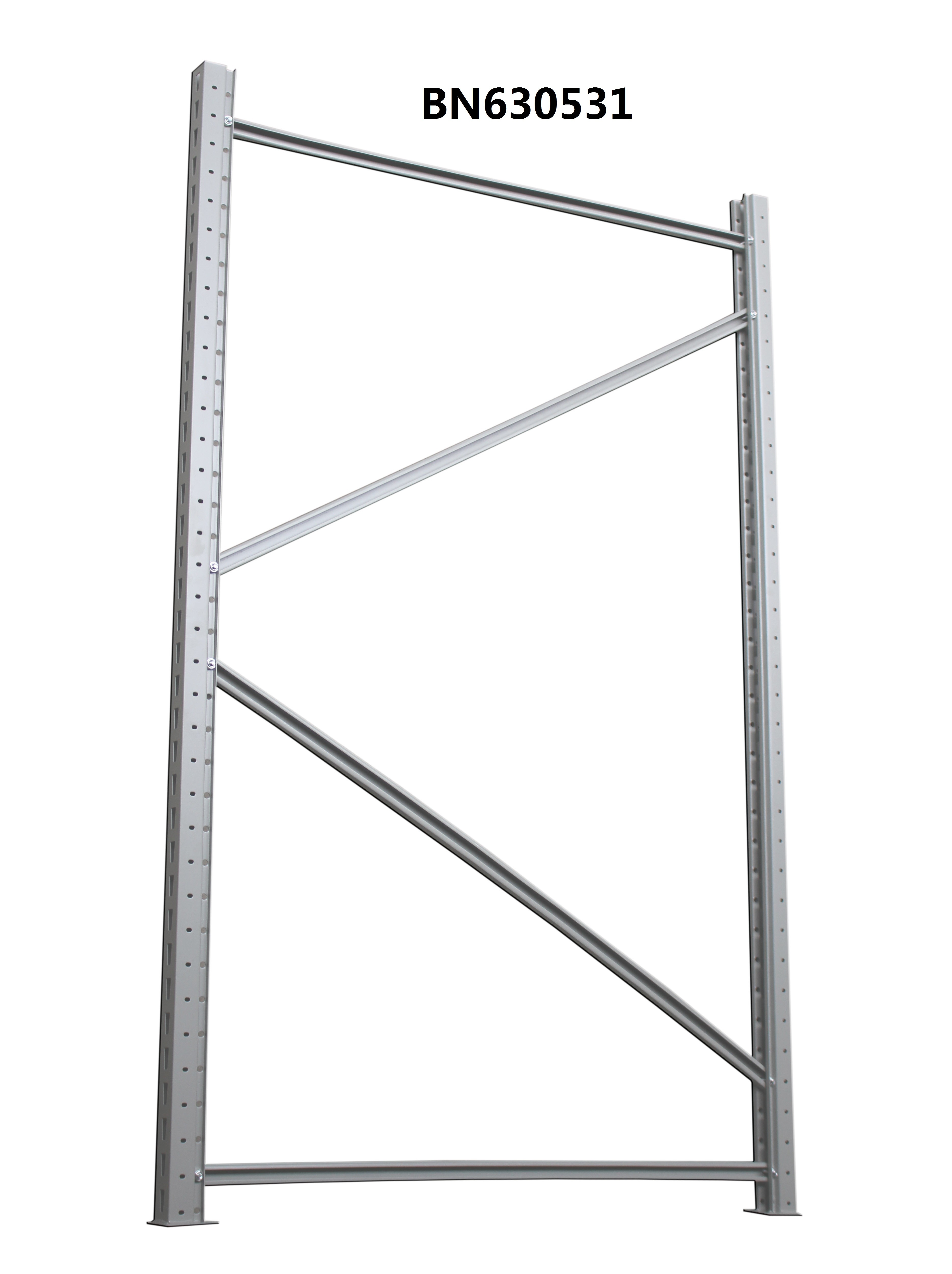

Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments. 3 hooks at each end of the beam allow positive connection with the upright. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.



Specification

Description Upright Frame
Part Number BN630531
Use With Beam
Type Formed Steel
Depth 48 Inch
Height 72 Inch
Material 14 GA Steel
Assembly Unassembled
Color Grey
Finish Powder Coated
Shelf Adjustments 2"
Include Hardware and Tool
Package Flat in Box
Original China



Large Heavy Duty Steel Storage Racks Garage Shelving Unit 48*72 Inch Unassembled
