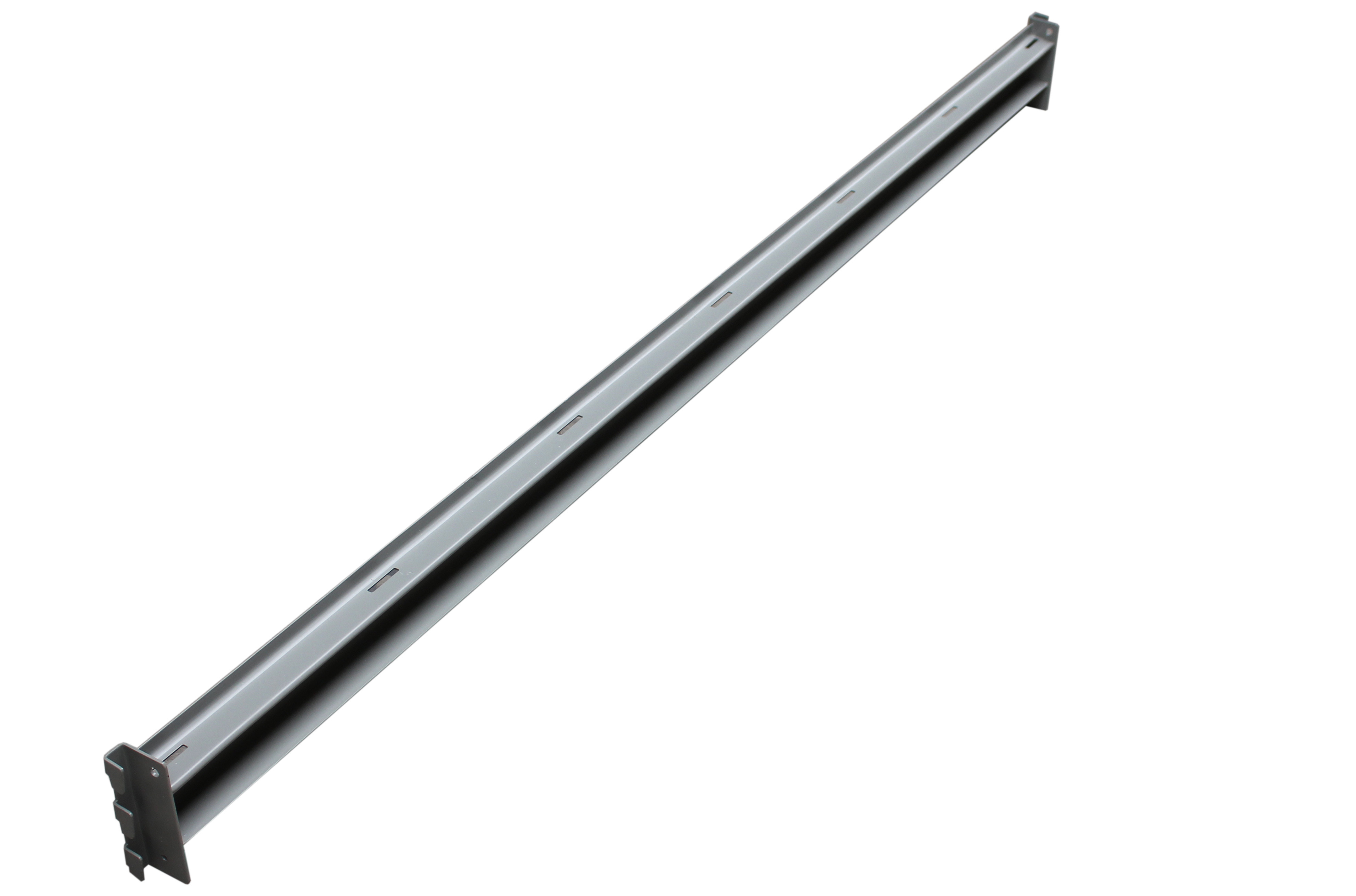

Commercial Metal Shelving Racks Z Beam 72 Inch Long Cold Rolled Steel With Pins

Basic Information
Place of Origin: Zhejiang
Brand Name: Brynick
Certification: N/A
Model Number: BN630539
Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Shrinked plastic wrapped per pair and on racking with forklift workable base
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 units per 30 days
Detail Information
Description: Z Beam Finish: Powder Coated
Color: Grey Assembly: Unassembled
Shelf Adjustment: 2" Include: 4 Safety Pins

Product Description

Packed in Pair Heavy Duty Beam 72 Inch Long Cold Rolled Steel with Pins



Features

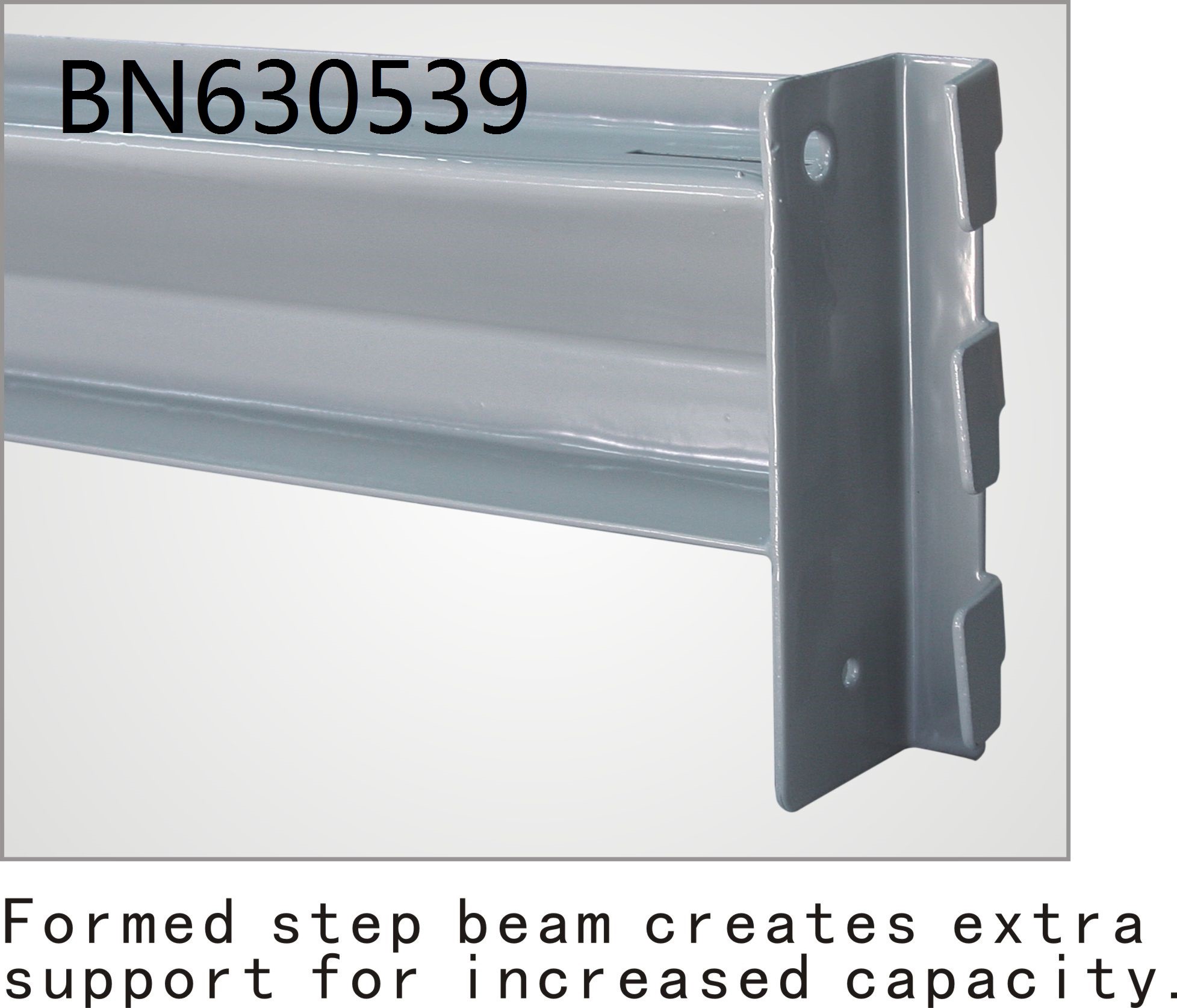

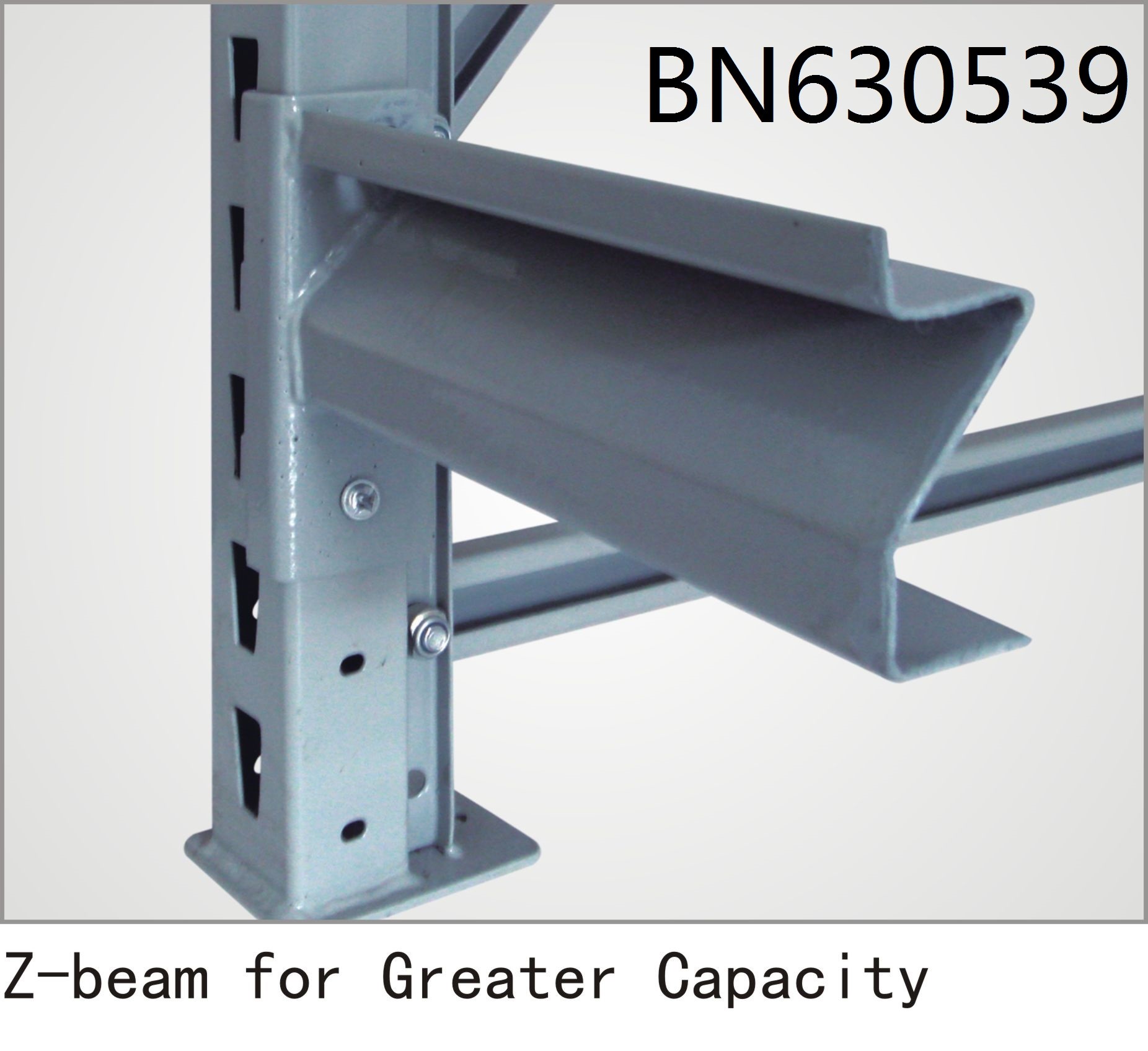

  • Z shape to place beam under extra load and provide protected surface for labeling
  • Formed front edge for easy sliding on and off
  • 5/8" step recess puts decking flush with top of beam
  • Keystone slots for Beam snap into place and adjust on 2" increments

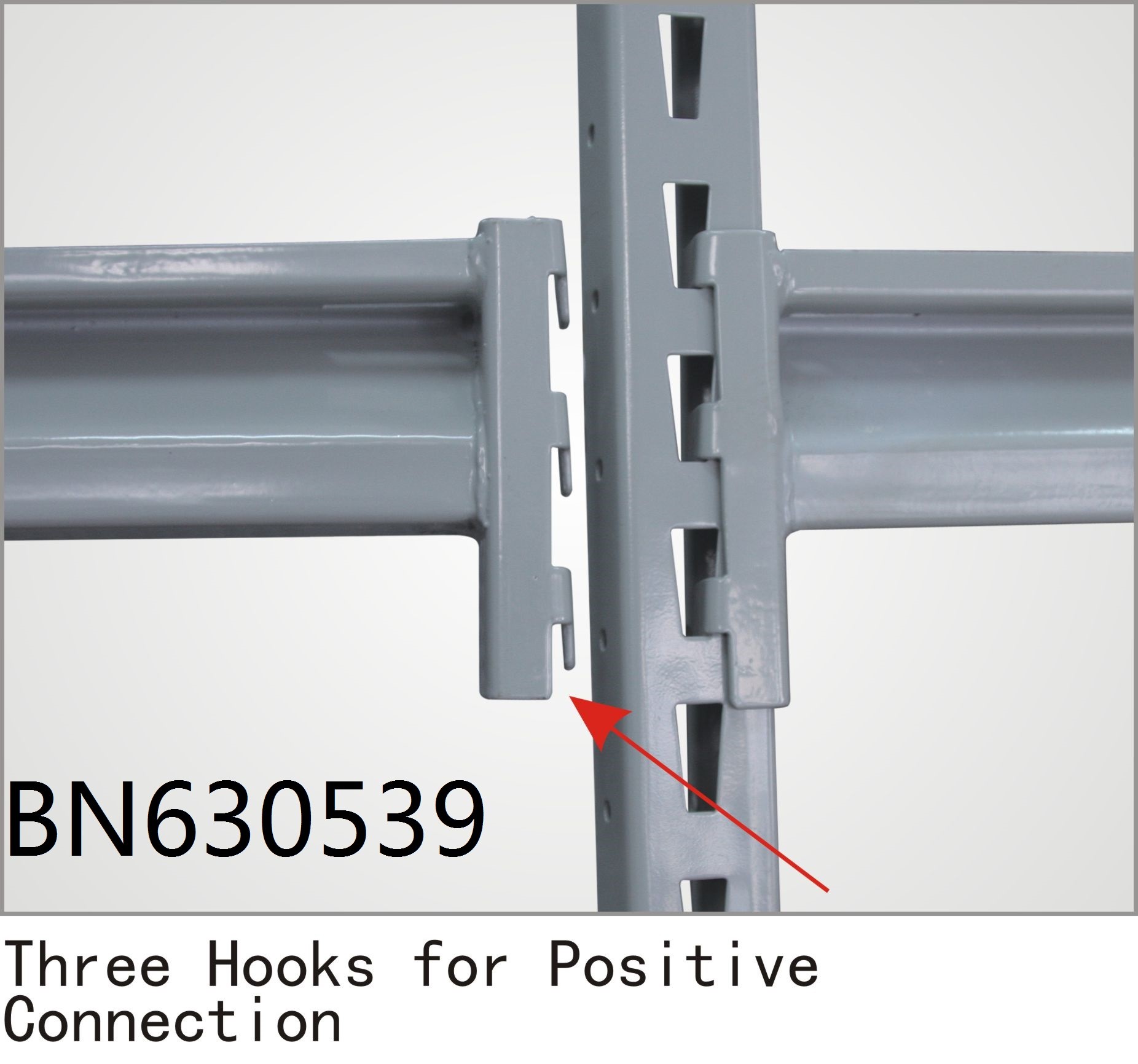

  • 3 hooks at each side of the beam assure absolute rigidity
  • Heavy duty 14 gauge bolted steel uprights with cross braces for maximum
  • Easy assembly with tools in the package
  • Deck supports drop between 2 beams to eliminate twisting under load and prevent
  • Welded footplates for floor mounting
  • Optional zinc plated steel mesh 2 x 4" prevent dust and dirt buildup, maximize fire sprinkler efficiency
  • Includes 5 supports per shelf



Description

72 inch long, heavy duty 12 GA formed step beam, boltless design allows installation without tools or hardware and adjusts in seconds at 2 inch increments, packed by 2 pieces in shrink plastic. 3 hooks at each end of the beam allow positive connection with the upright. This tough and dependable starter unit 60 inch wide x 36 inch depth x 72 inch high capacity of 3800LBs with 2 uprights, 3 pair of beams and 15 pieces of deck support, features industrial-strength welded steel frames and beams plus safety pin design for security. Optional 3 heavy-duty wire shelves adjust with beam in 2 inch increments and this bulk shelving starter unit has a 3,800 pound shelf capacity, based on evenly distributed loads. A center deck support channel provides additional support to the wire shelves. This commercial-grade shelving unit assembled in minutes with tools in the package. Made of 14-gauge steel measuring 1-3/4" x 1-3/4", these heavy duty uprights feature a gray powder coat finish. Each upright frame includes 2 upright posts and cross bracing. Upright posts include foot plates that allow rack to be bolted to the floor. And optional 5” x 1 ¼” non-marring polyurethane caster can be bolted to the foot plate for mobility, only for 18” wide and 72” high units.





Application

Store your heaviest, extra-wide or bulky items

Garage Storage Shelving

Up to 3,800 LBs per shelf



Specification

Description Beam
Part Number BN630539
Use With Upright and deck
Type Z Formed Steel
Overall Length 72 inch
Capacity 2,750 LBs
Material 12 GA Steel
Assembly Unassembled
Color Grey
Finish Powder Coated
Shelf Adjustments 2"
Package 2 pieces
Include 4 safety pins
Original China



Commercial Metal Shelving Racks Z Beam 72 Inch Long Cold Rolled Steel With PinsCommercial Metal Shelving Racks Z Beam 72 Inch Long Cold Rolled Steel With Pins
