16 Feet Opening Folding Security Dock Door Gates , Steel Collapsible Security Gate

Basic Information
Place of Origin: Zhejiang
Brand Name: Brynick
Certification: N/A
Model Number: BN670015
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton flat kocked down packing with pallet base for forlift
Delivery Time: 5-30 days based on order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 4000 sets
Detail Information
Material: Channel Steel Width: 16 Feet
Finish: Powder Coating Height: 6 1/2 Feet
Gate Type: Double Opening Weight: 180 Lbs

Product Description

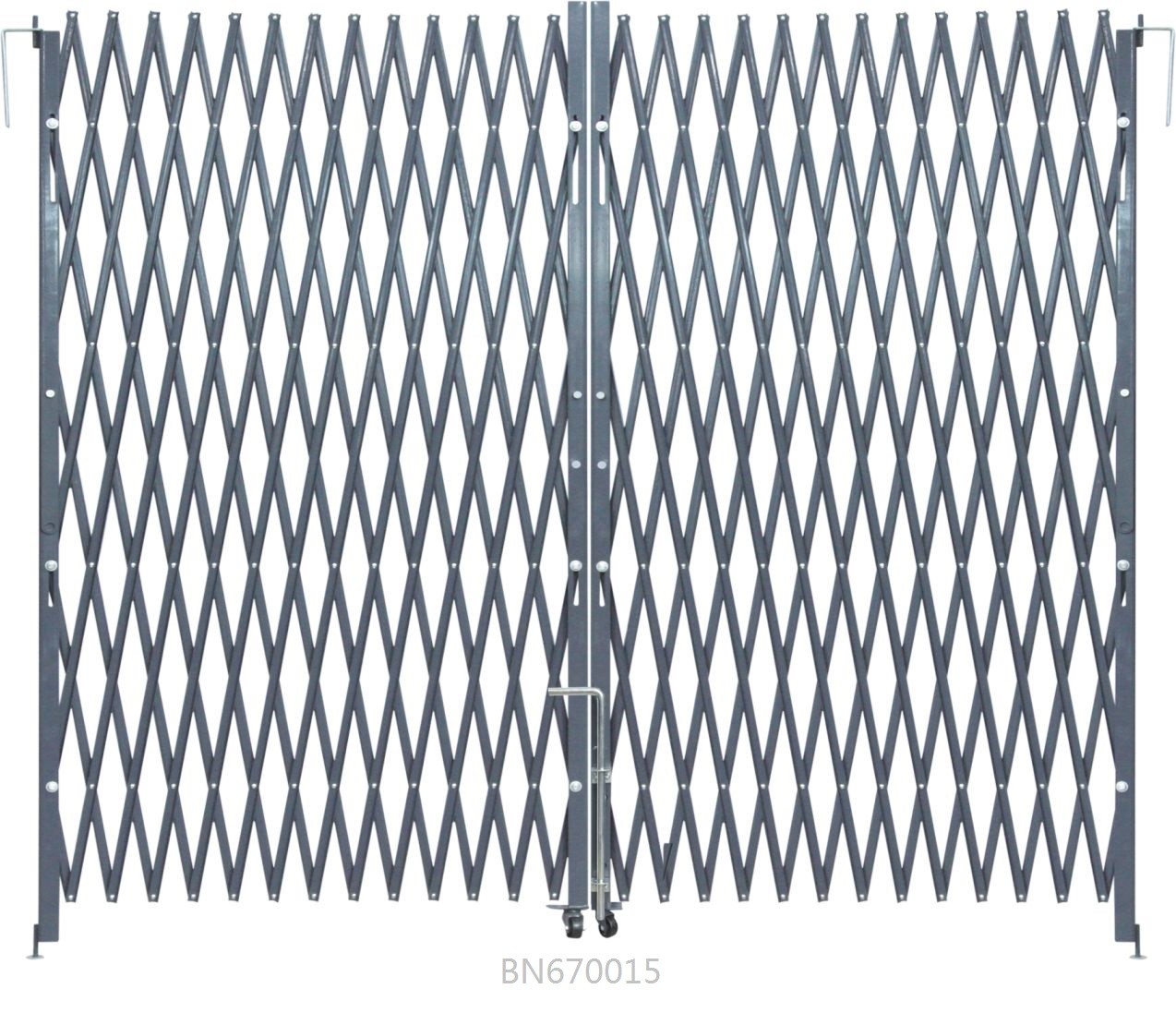

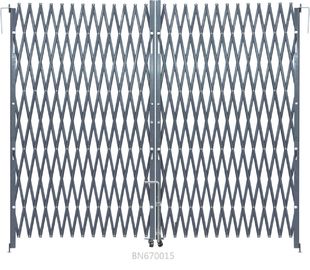

16 Feet Opening Dock Doorway Control Steel Double Collapsible Security

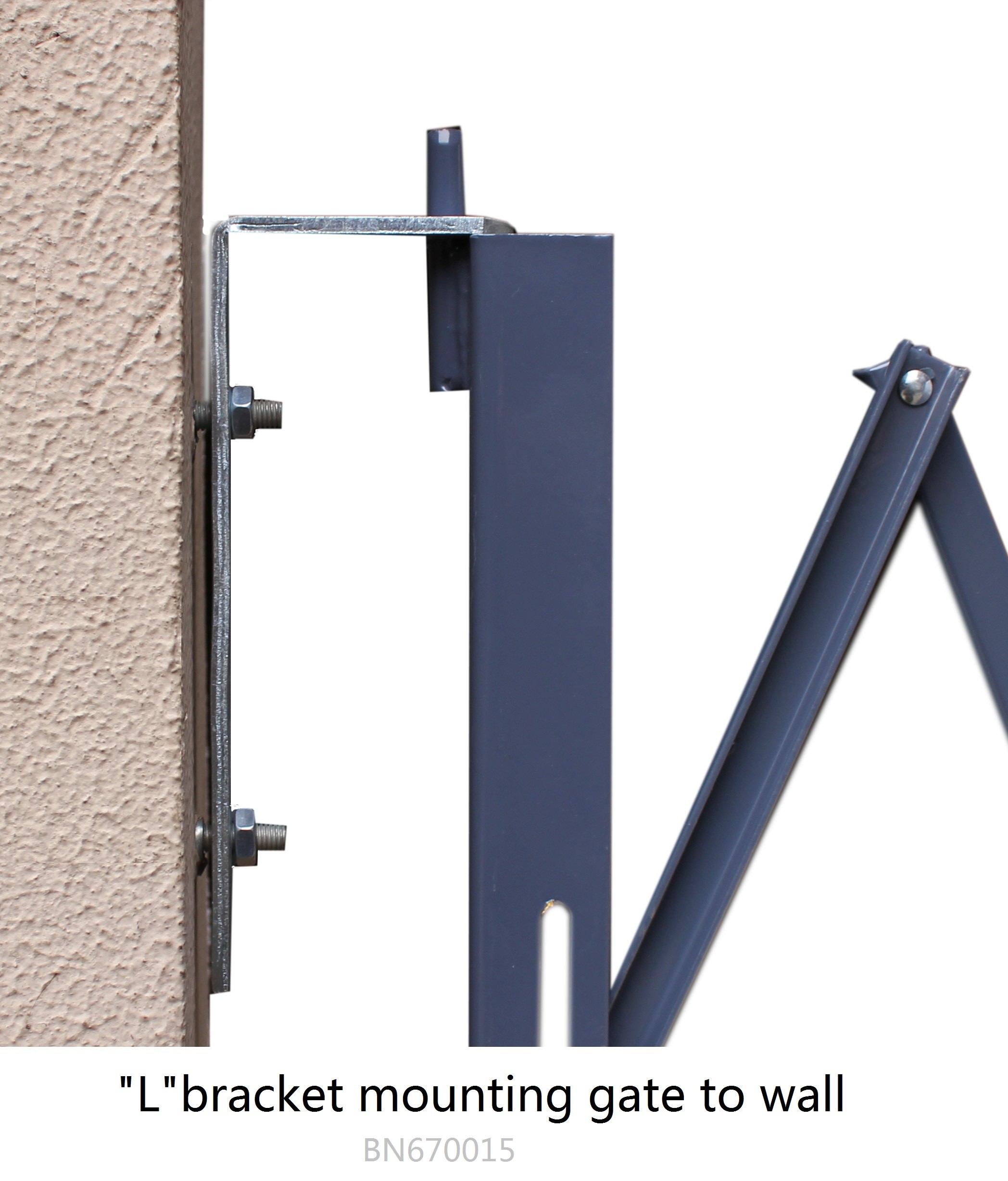

16 feet opening dock doorway control steel double collapsible security gates are made with heavy duty 14 gauge channel steel. These rolling security gates have an excellent construction fold completely and swing up to 180 degrees for opening and preserve the integrity of durable gray powder coat finish for a longer life. Zinc-plated rivets help prevent corrosion. Package includes mounting brackets for wall, bearing washers, metal durable casters, and lock lugs. Padlocks not included.



  • Fast, efficient crowd control
  • Divide space securely

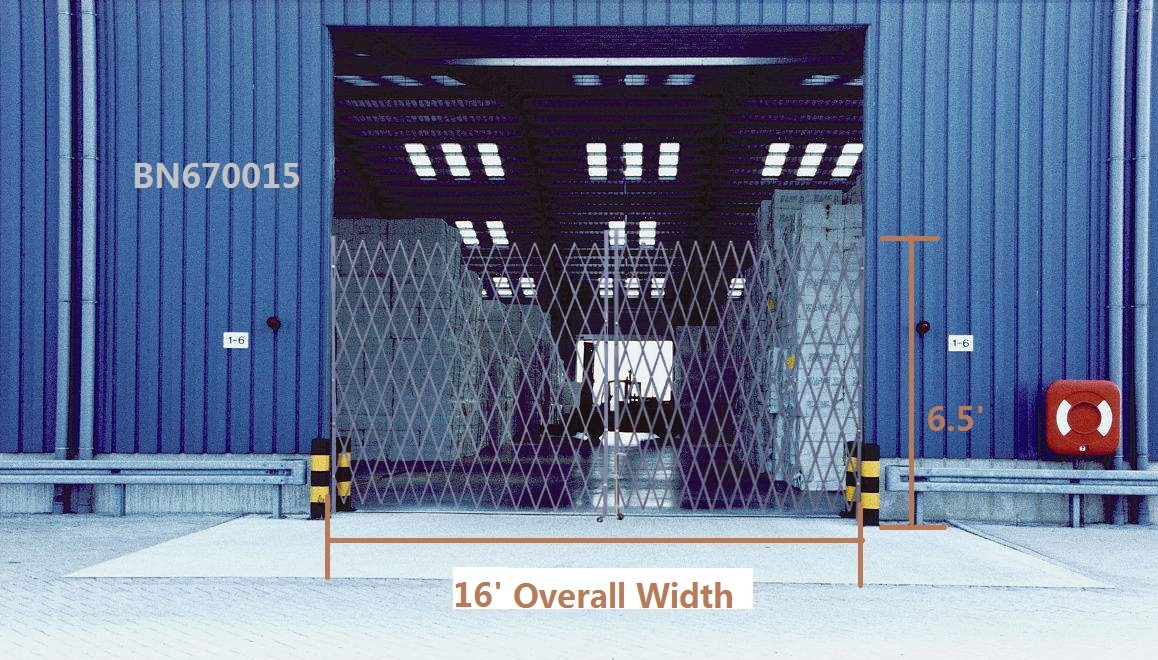

  • Designed to secure dock doors, receiving, doorways, garage and service doorways, hallways and entrance ways up to 16 feet wide
  • Protect Against Pilferage and Unauthorized Entry
  • Used in all - weather like hot summer, raining and snow winter
  • Inside door jambs, outside door jambs, between posts or bollards, attached to pallet racks, between walls and even on windows
  • Great air and light flow, and increased security and safety, industry gray powder coated steel folding security gates help make a healthier workplace, a more secure warehouse, a safer school guarder



  • Withstand more stress and never rust
  • Never crack and the webbing never separate.
  • Heavy – duty 1 1/2” x 1 1/2” vertical member angles
  • Heavy duty steel U channel webbing
  • Riveted Back to Back with high quality steel galvanized rivets
  • Strong 3/4 inch, 14 gauge channel steel, the most strength and security in the market
  • Solid galvanized steel 5/8” self – securing drop pins designed to fit directly into floor holes
  • Solid steel castor
  • Easily installation within 30 minutes
  • Swing up to 180 degrees for opening on the mounting, give a completely clear of obstructions
  • Locking on the right standard, and locking on the left available upon request



Width 16 Feet
Wipe Height 5.12 Inch
Height 6 1/2 Feet
Finish Powder Coating
Color Grey
Assembly Unassembled
Material Steel
Folding Gate Type Double Open
Mounting Bolt Hole Diameter 0.312 Inch
Retracted Width 12 1/2 Inch
