Place of Origin: | Ningbo China |
---|---|
Brand Name: | Brynick |
Certification: | N/A |
Model Number: | BN660408 |
Minimum Order Quantity: | 1 piece |
Price: | Negotiable |
Packaging Details: | Plastic sheet wrapped and with pallet foot |
Delivery Time: | 5-30 days upon order quantity |
Payment Terms: | D/P, Western Union, T/T, MoneyGram, L/C, D/P |
Supply Ability: | 5000 pieces per month |
Width: | 4 Feet | Color: | Grey |
---|---|---|---|
Height: | 8 Feet | Weight: | 49 Lbs |
Material: | 10 GA Wire Mesh | Part Name: | Basic Panel |

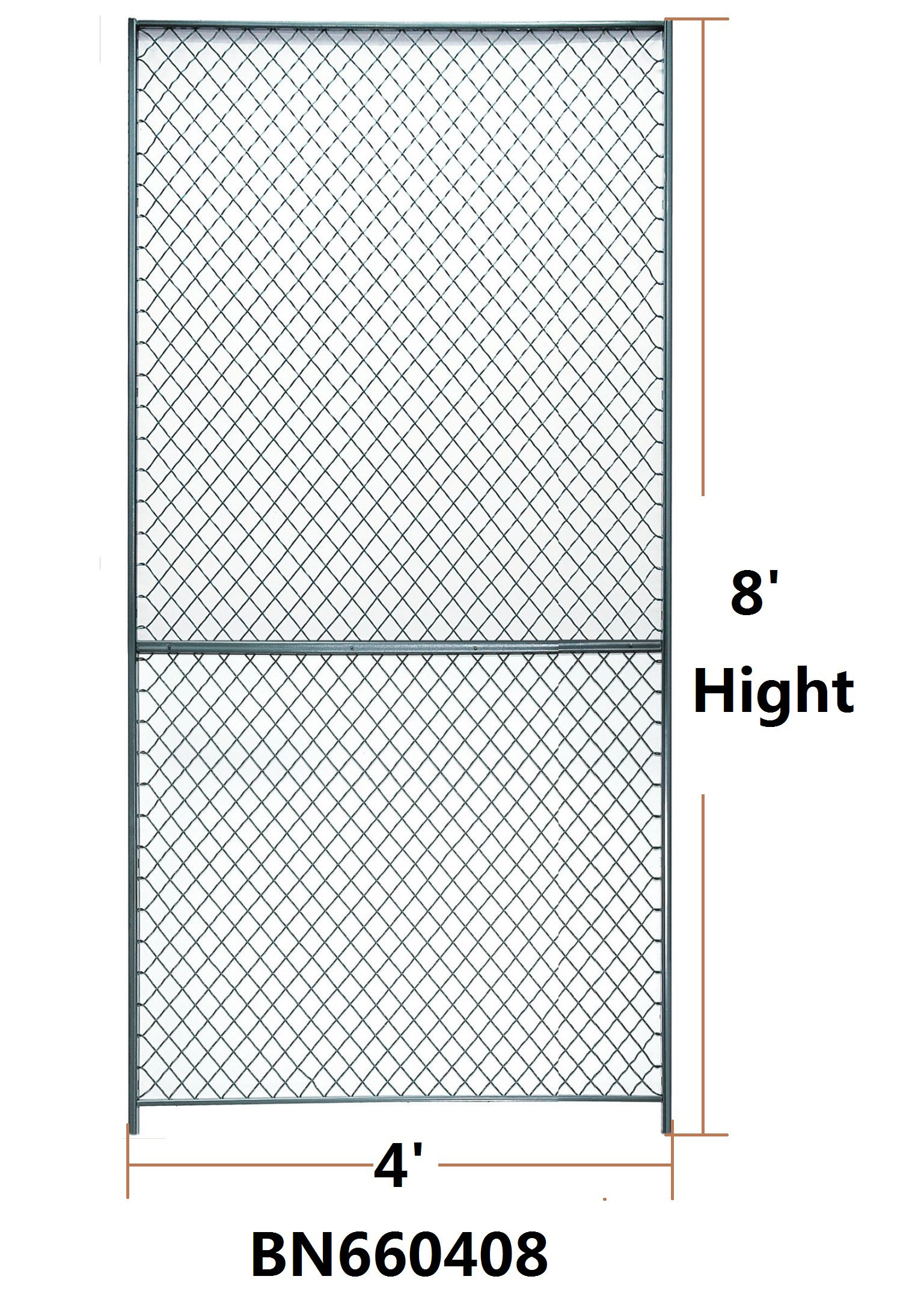

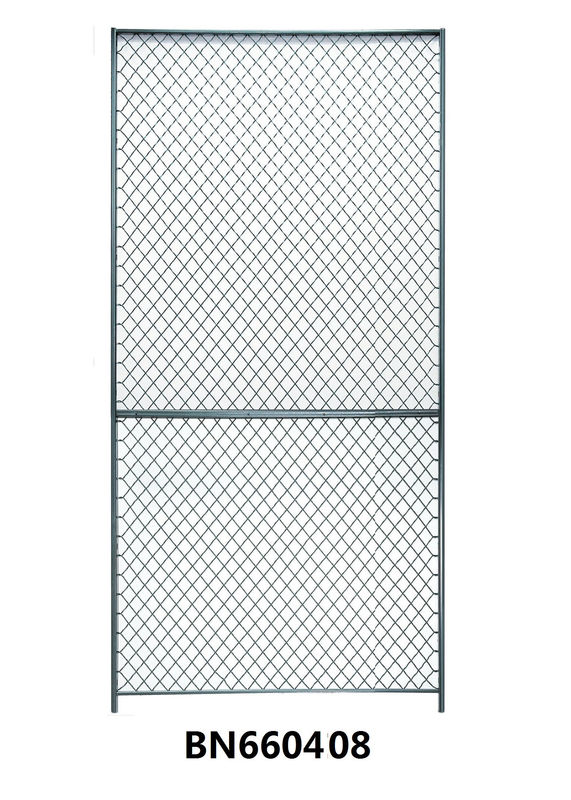

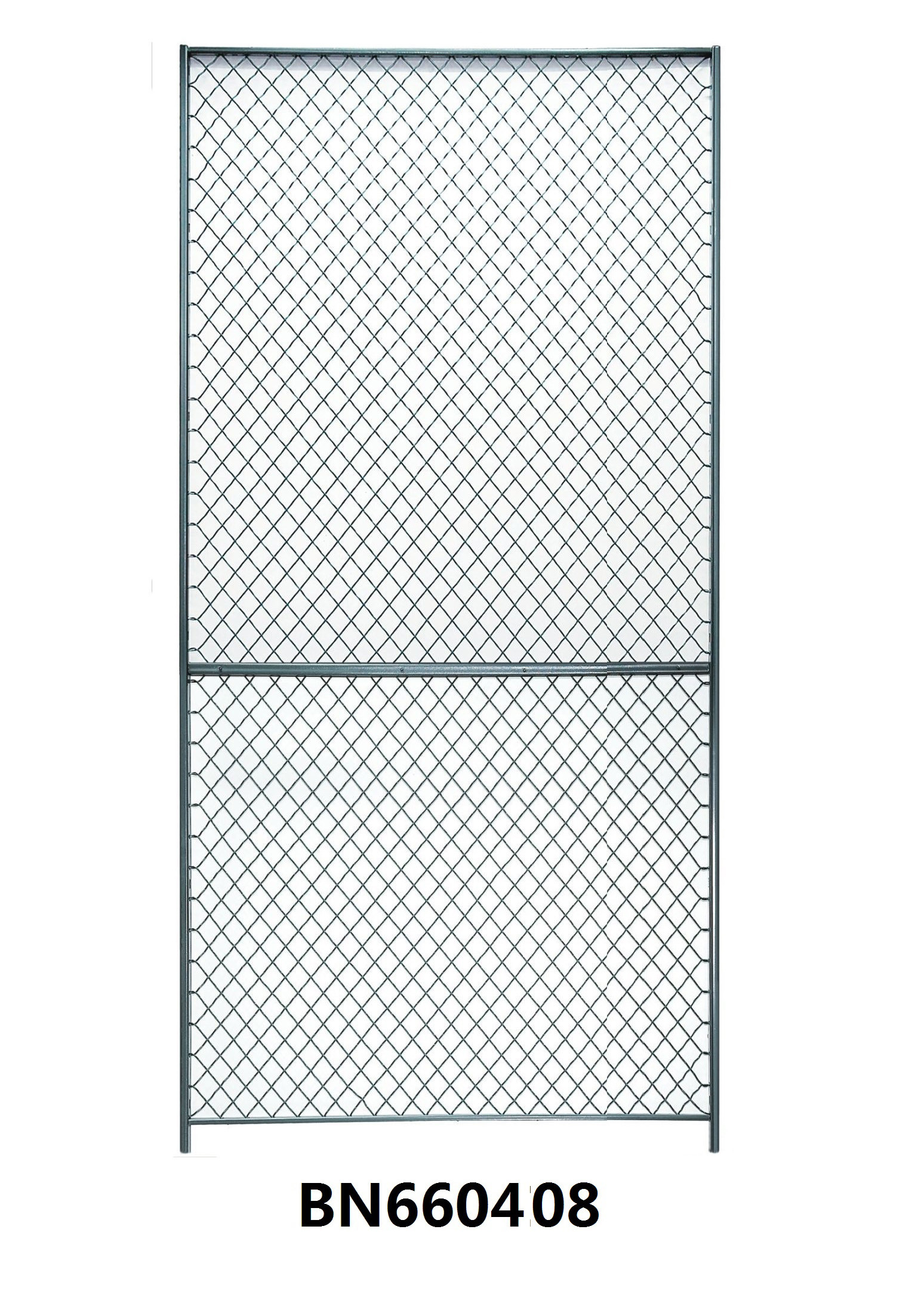

Standard Security Guard Wire Mesh Partition Panels 8 Feet High and 4 Feet Width
Description
These standard security woven wire mesh partition panels 10 gauge clinched, 8 feet high and 4 feet width is the basic wall panel for the high-visibility security, safety, protection and access control system, need to be used with other panels and top capping and channel stiffener post. These pre-designed rooms are available with or without a roof, in 2, 3 and 4 sided configurations. The rooms are constructed from high quality 10 gauge steel wire, woven into an extremely strong frame for heavy-duty strength and enhanced appearance. Modular components makes installation easily, protects your merchandise and valuables without change to existing heating, lighting or ventilation system. Components bolt together quickly and can be easily relocated. Long-lasting maintenance-free powder coat gray finish. Available in 8' and10' high in five standard sizes ranging from10' x 10' to 30' x 20'. All models can include a 5' W x 8' H sliding gate or hinged door with mortise cylinder lock, or service window as required. Components include: mortise door lock with 2 keys, top capping, channel stiffener posts, corner posts, floor sockets, wall clips, nuts, bolts and assembly instructions in details. Add suffix A to any model to include sliding service window 5’ wide, padlockable with 12” depth shelf.
Application
Can be used in service and data rooms
Create enclosed, lockable areas for securing valuables in warehouse
Separating and securing any space in industrial, commercial, or governmental environments.
Create secure storage cages in factories, and to provide access control and loss prevention
Protect and control access to work areas, inventory and equipment.
Features
- Locking to be hasps arranged for padlocking, or specify: cylinder mortise type lock operated by key outside, recessed knob inside.
- Horizontal frames to be 1" x 1/2" cold rolled steel channels.
- All joints to be mortised and tenoned.
- Center reinforcing bar to be two cold rolled steel channels 1" x 3/8" riveted through wire mesh at 3'6" from floor, additional bar required for 12'
- Top capping bar to be 1 1/2" x 1" cold rolled steel channel, with 1/4" bolts 30" O.C.
- Corner posts to be 1 1/4" x 1 1/4" steel angles with 1/4" bolt holes.

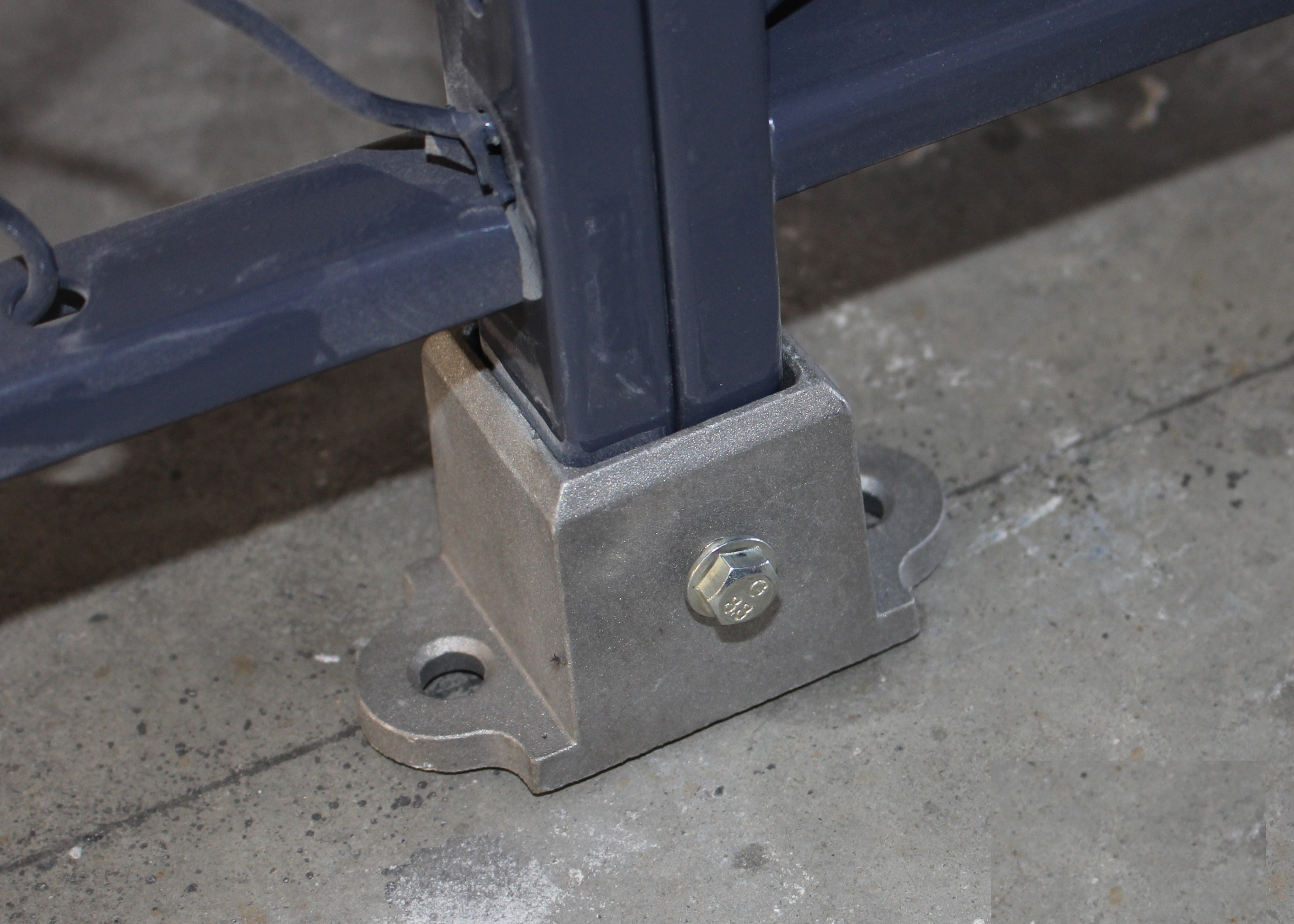

- Floor sockets to be cast aluminum.
- Door frames to be 1 1/4" x 1/2" cold rolled steel channel.
- All partitions to have 3" sweep space and include hardware and accessories for proper installation, specify partition to wall connection hardware separately.
- Finish to be powder coated industrial Grey - 10 Gauge steel wire woven into 1 1/2" diamond mesh, securely clinched to framing.
- Vertical frames to be 1 1/4" x 5/8" cold rolled 'C' steel channels with 1/4" bolt holes.
- Sliding doors to have two four-wheel roller bearing truck/hangers enclosed in a galvanized steel box track and one steel channel bottom guide.
- Hinge doors to have 1 1/2 pairs of butt hinges bolted to door and transom frame.
Specifications
PART NUMBER | BN660408 |
WIDTH FEET | 4 Feet |
HEIGHT FEET | 8 Feet |
COLOR FINISH | Grey |
ASSEMBLY | Assembled |
BRAND | Brynick |
CONSTRUCTION | 10 Gauge Steel Wire |
DESCRIPTION | Basic Panel |
WEIGHT LBS | 49 Lbs |
