Place of Origin: | Zhejiang China |
---|---|
Brand Name: | Brynick |
Certification: | meets or exceeds OSHA and ANSI specifications |
Model Number: | BN8020304 |
Minimum Order Quantity: | 1 unit |
Price: | Negotiable |
Packaging Details: | pair packed in one box and 200 box in a metal base |
Delivery Time: | 5-25 days upon order quantity |
Payment Terms: | D/A, Western Union, T/T, D/P, MoneyGram, L/C |
Supply Ability: | 10,000 units every 30 days |
Componnets: | Post | Use With: | Panles And Doors |
---|---|---|---|
Type: | Corner Connect | Finish: | Powder Coated |
Include: | 1 Post And 1 Base Plate | Brand: | Brynick |

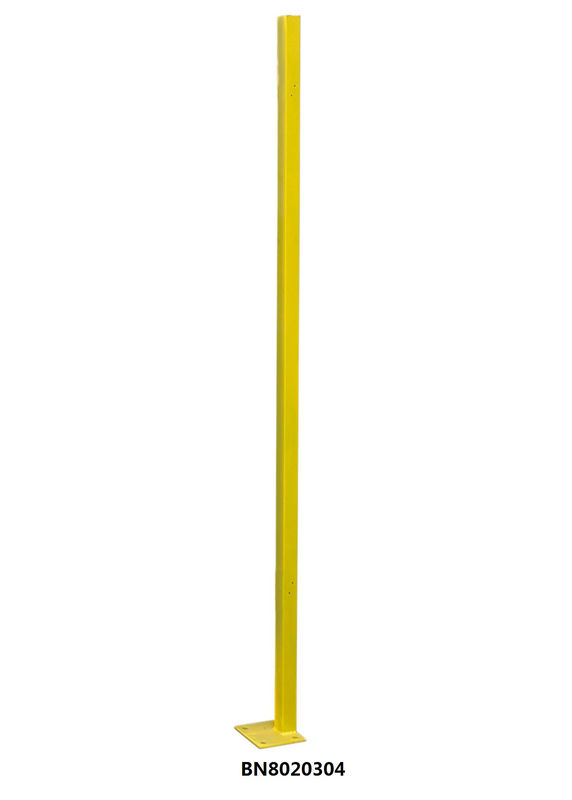

Corner Post Steel Full Welded 6 Feet Height with 2 x 2 Inch Gauge Tube and 6 x 6 Inch Base Plate Machine Guard System
Description
6 feet high Corner Post Connect 2 pieces of panels in 90 degreed direction, 2 x 2 Inch 14 Gauge Steel tube welded with 6 x 6 Inch Mounting Base Plate suitable for rough environments where there is a greater risk of collision or impact with, powder coated Yellow finish, meets or exceeds OSHA and ANSI specifications. For use with panels and doors, includes 1 post and base plate. All-steel, welded-tube post and panel system held in place with pins, brackets, and safety nuts. The welded base results in a stable and robust construction. Allows up to 12 inch sweep for easier cleaning and can be reconfigured. Safety socket wrench is included. Hinged doors lock. They are made of high quality steel using an automated production process, which ensures a high and consistent product quality. Offer good overview of the production line and protect against particles and fluids from the production process. The posts as well as the panels can be customized to create the desired dimensions. Posts can be made to customer order, while panels are either ordered in the desired size from the factory.
Theory
Operating machinery can cause injuries in many ways:
People can be struck and injured by moving parts of machinery or ejected material. Parts of the body can also be drawn in or trapped between rollers, belts and pulley drives
Sharp edges can cause cuts and severing injuries, sharp-pointed parts can cause stabbing or puncture the skin, and rough surface parts can cause friction or abrasion
People can be crushed, both between parts moving together or towards a fixed part of the machine, wall or other object, and two parts moving past one another can cause shearing
Parts of the machine, materials and emissions (such as steam or water) can be hot or cold enough to cause burns or scalds and electricity can cause electrical shock and burns
Injuries can also occur due to machinery becoming unreliable and developing faults or when machines are used improperly through inexperience or lack of training
Application
Protect packaging equipment or pallet wrappers which have a moving load and an arm that stretches shrink wrap around the load. Wire partition machine guard can be placed around the wrapper, and stop accessing by a lift truck.
Guard In-Line palletizer with machine guarding, wire partition could be used around the work area with a hinged gate which stops the robot entering.
Protect production environments: The modern industry with advanced processes places significant demands on safety. In particular, there is a great need for controlled access for authorized personnel. By selecting the right size of doors, locks, post and panels based on your needs, you can easily create a complete and integrated machine guarding system. Based on the results of your risk analysis you can select a system based on the impact level which it must be able to sustain, how quick your access to the machinery needs to be and what type of visibility you need in the area. The system should be designed to provide a good overview of the entire area.
Automated warehouse: Machine Guards are used to protect staff in automated warehouses and to secure crane walkways in high-bay storage areas from unauthorized access.
Outdoor environments: Hot-dip galvanized panels and posts designed to be used for outdoor or humid environments. These have corrosion protection, which means that they are suitable for spaces with a moderate level of humidity or airborne pollution from production processes.
Hygienic screening: Machines intended for use with food products, cosmetics and hygiene products or pharmaceuticals should be constructed to ensure that there is no risk of infection, disease or contamination.
Specification
Components | Post |
For Use With | Panels and Doors |
Description | Corner Post |
Height | 6 Feet |
Width | 2 Inch |
Assembly | Assembled |
Brand | Brynick |
Standards | Meets or exceeds OSHA and ANSI |
Finish | Powder Coated |
Color | Yellow |
Include | 1 Post and 1 Base Plate |
Construction | 14 Gauge Steel |
Material | Steel Tube and Sheet |
Weight | 16 Lbs |
