Rugged Lightweight Loading Dock Plates , Warehouse Dock Plates With Cut Handle

Basic Information
Place of Origin: P. R. of China
Brand Name: Brynick
Certification: in Compliance with ANSI Standard MH30.2 OSHA 1910.3 Compliant
Model Number: BN814836
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Cardboard Box per set and 50 sets per forkliftable pallet tray in shrink wrapped to prevent moist
Delivery Time: 5-25 days depend on order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 sets
Detail Information
Name: Dock Plate Use With: Pallet Truck
Assembly: Unassembled Package: Box
Parts: 2 Legs And 8 Bolts Leg Material: Steel

Product Description

Rugged and Lightweight Aluminum Dock Plate with Cut Handle on Both Sides



  • Manufactured from lightweight, high-strength aluminum
  • Skid resistant in all kinds of weather
  • 6 sizes to choose from with weight capacities ranging from 2,660 to 3,700 lbs.
  • Machine beveled edges provide smooth loading transition
  • Safety legs secure plate between dock and trailer
  • Gradual 11° bend keeps edges flush with dock
  • Portable Hand holes for easy moving
  • For hand, platform or pallet trucks only



  • Non power equipment such as forklift dock loading
  • Low-cost solution to bridge the gap between trucks, trailers and your loading docks
  • Bolt-on steel legs for securing position between the dock and the trailer
  • Used with hand trucks only
  • Lip bend is 11°. Standard lip length for conventional trailers is 11. Aluminum dock plates are designed to work well with pallet trucks or other non-powered dock loading equipment. Machine beveled deck edges allow for smooth transition

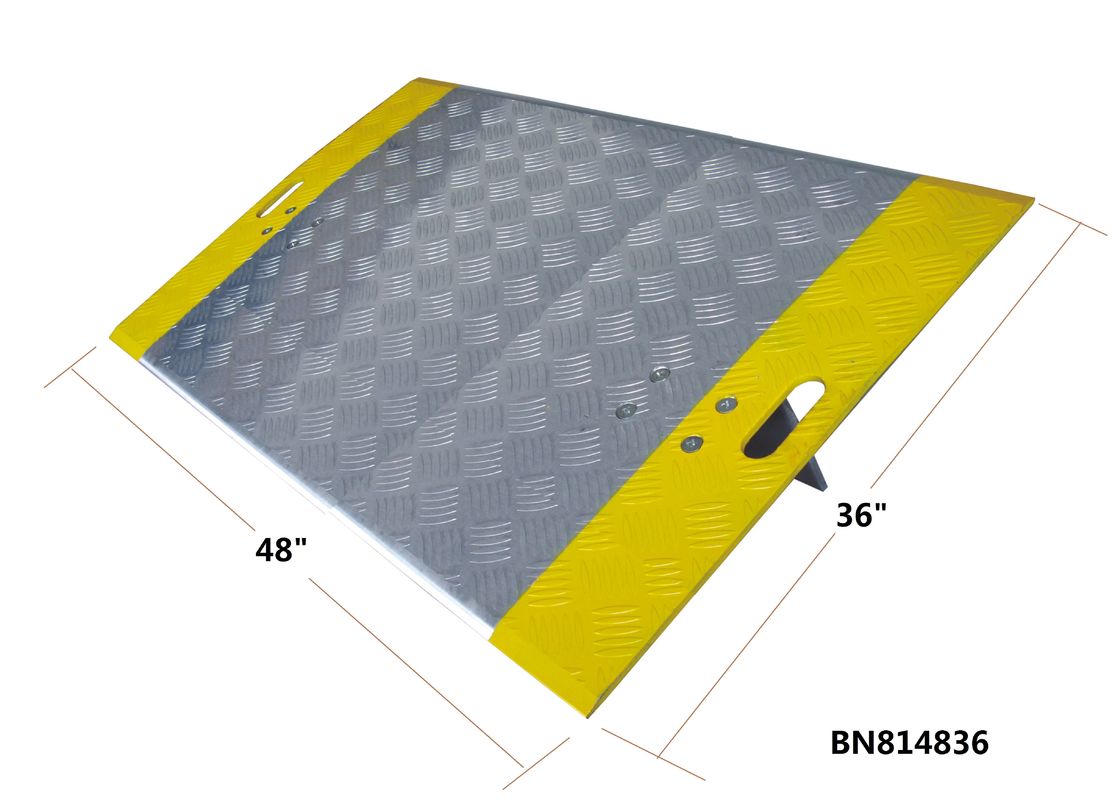

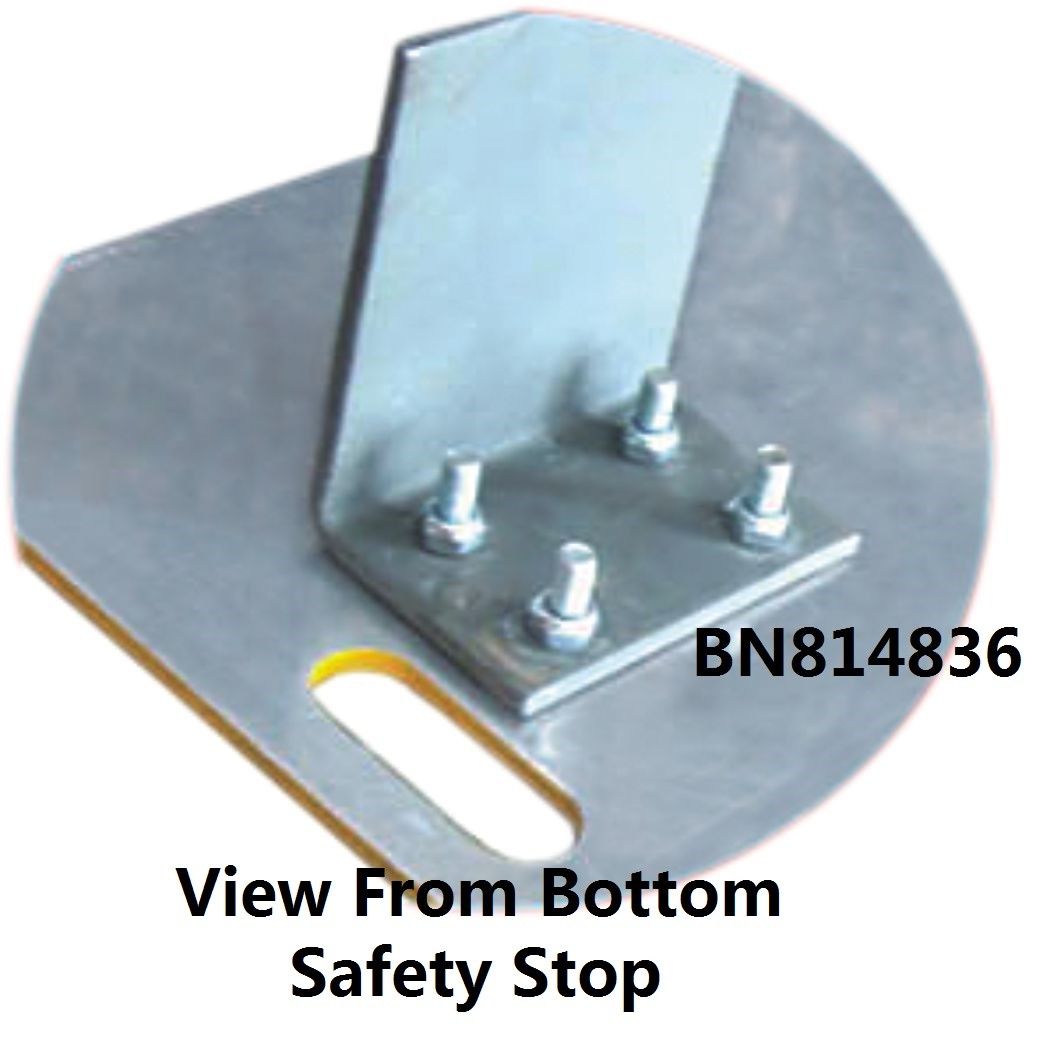

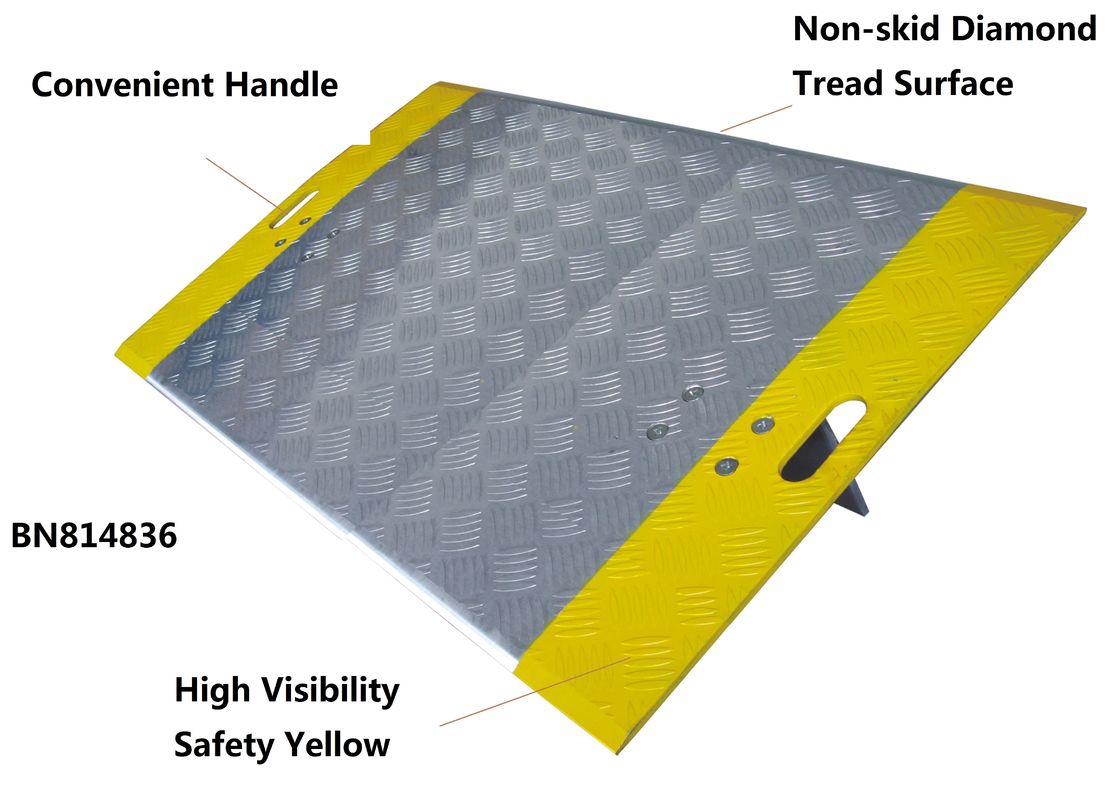

High-Traction Point Aluminum Dock Plates are rugged, lightweight 3/8" thick T6061 aluminum designed to withstand heavy traffic. Unique diamond tread surface provides more traction points per square foot than competitive dock plates to improve safety. Precut hand holds provide easy mobility by 1 or 2 person. 11" apron with beveled edges and an 11° crown provides smooth, efficient in and out. Bottom of dock plate includes a bolted safety steel triangle stop to keep plate in position. Width is 48". Length is 36". Capacity is 2700 pounds. You need purchase dock plate 12" wider than anticipated load. Not for use with rider type trucks. Assemble easily with bolt. An aluminum dock plate is ideal for low to medium volume dock loading applications. Use a dock board for fork lift applications.



Description Dock Plate
Part Number BN814836
Width 48 inch
Length 36 inch
Material 3/8" Aluminum
Assembly Unassembled
Weight 66 pounds
Capacity 2700 pounds
Original China
Finish Painted
Color Orange
Leg 2
Leg Material Triangle Steel
Use with Pallet Truck
