3” X 3” Section Teardrop Pallet Racking Upright Frame 4" X 4 1/4" Footplates

Basic Information
Place of Origin: China
Brand Name: Brynick
Certification: N/A
Model Number: BN640096
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Parts: Upright Frame Type: Full Welded
Material: Roll Formed Steel Height: 144 Inch
Depth: 42 Inch Color: Blue

Product Description

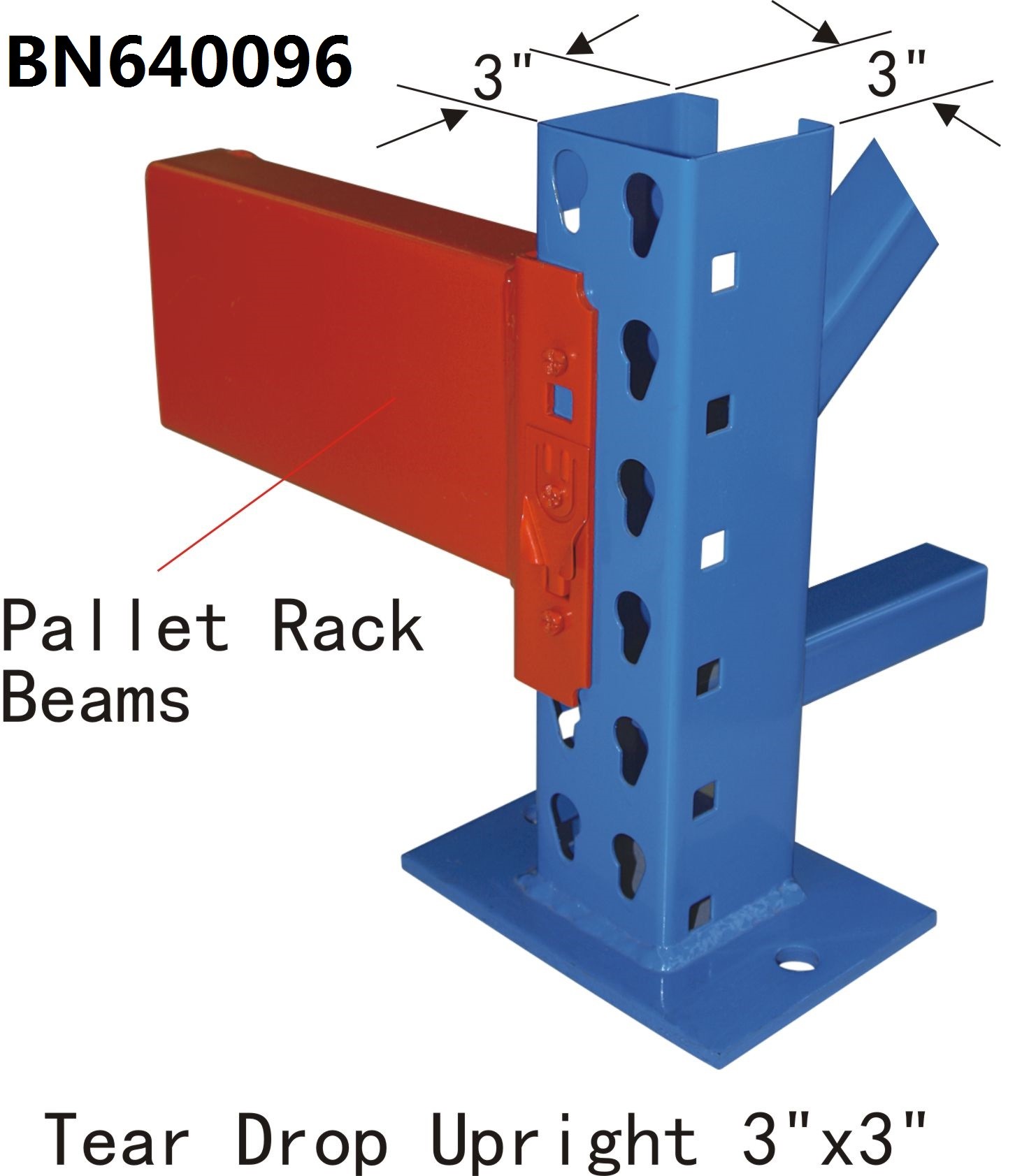

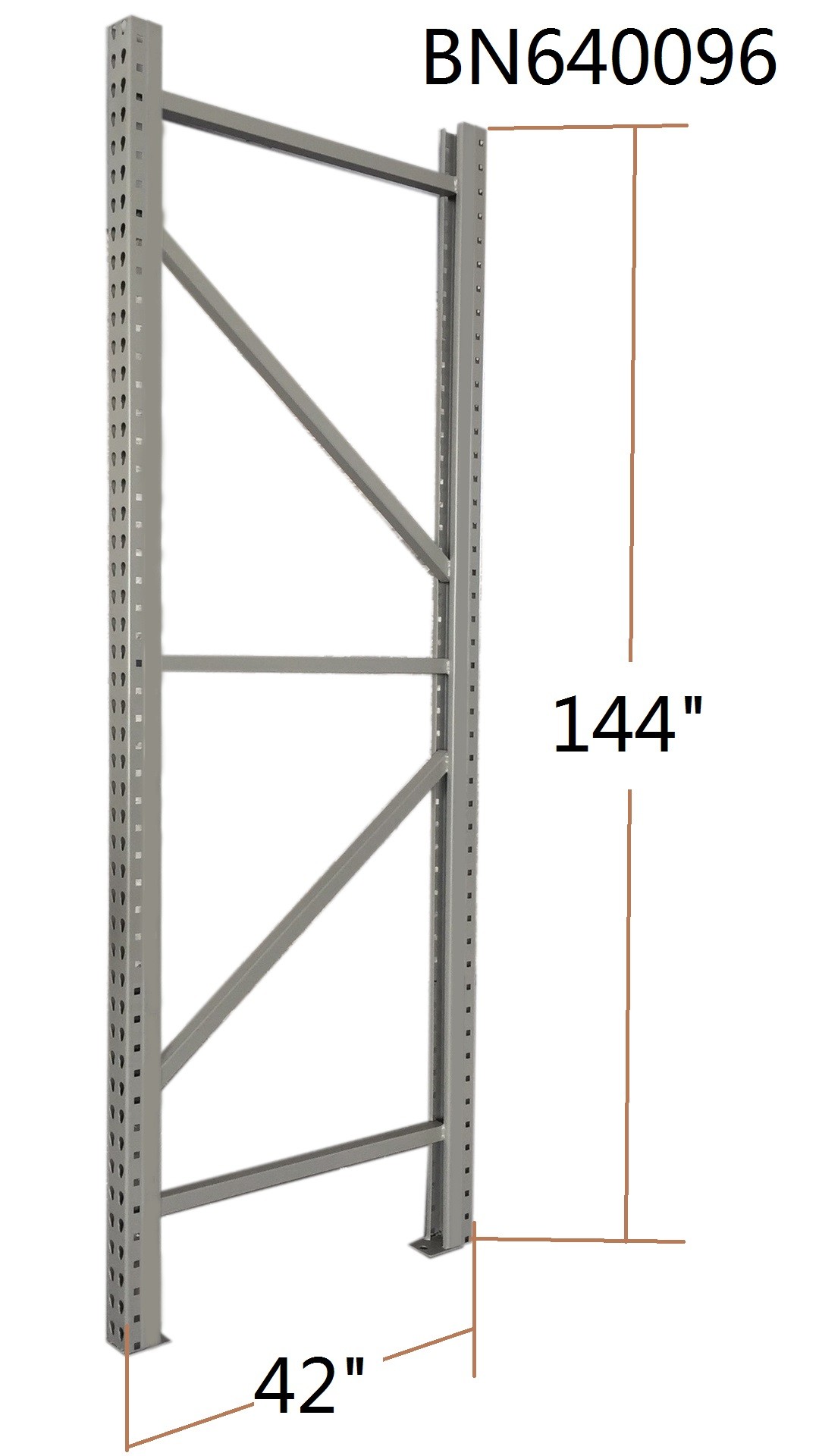

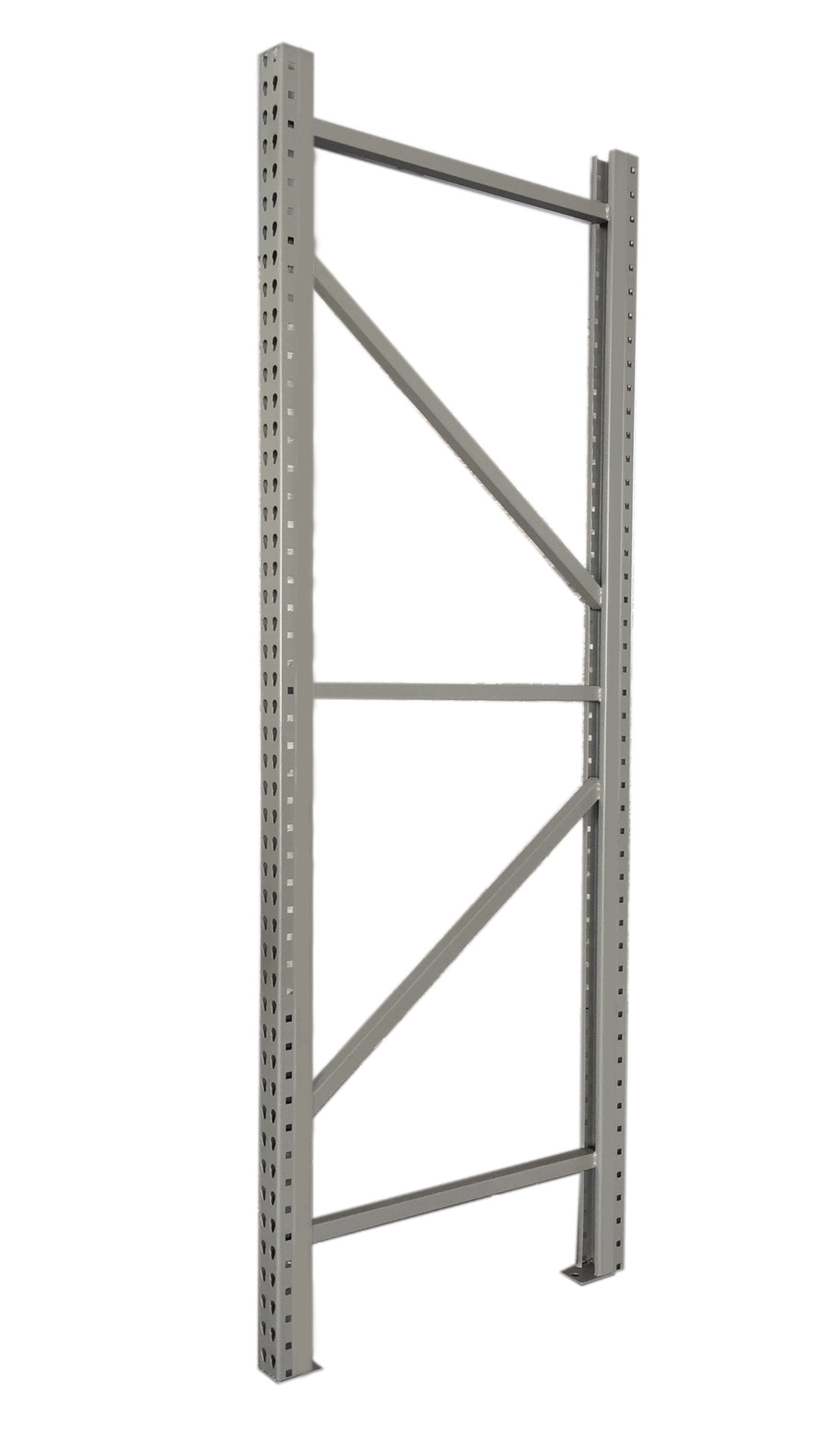

Heavy Duty Full welded 3” x 3” Section Teardrop Pallet Racking Upright Frame 12 Feet High and 42 Inch Depth

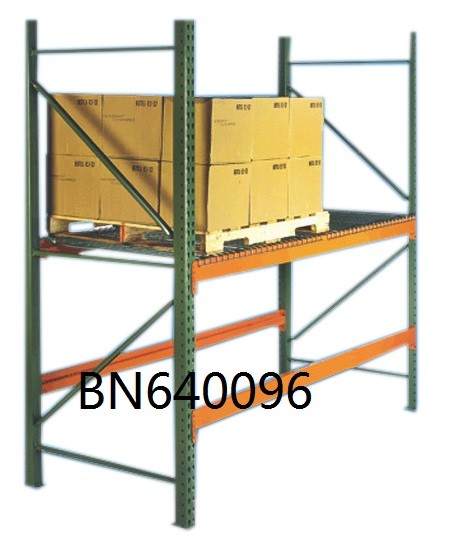

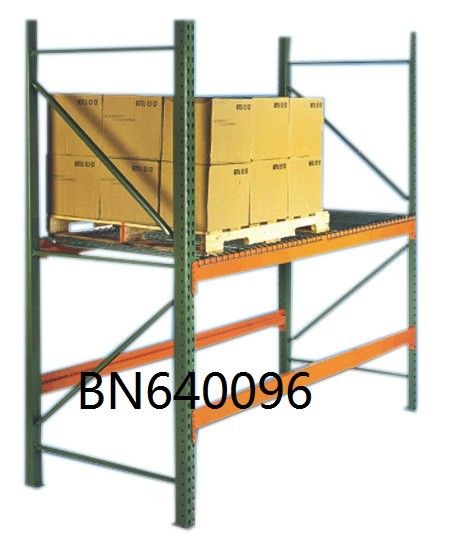

Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications



Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Easy and quick assembly for all your pallet storage needs, tool free, tear drop, snap-in locking slots ensure a secure and stable unit. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. 4" x 4-1/4" x 12 gauge welded base plate anchors upright to floor and distributes weight evenly. The Starter Units include two upright frames and two pairs of beams. Add-On Units include one upright frame and two pairs of beams. Long-lasting baked-on enamel finish.



  • Immediate access to every pallet load
  • 100% welded uprights
  • Beams adjustable on 2 inch centers
  • Large base plate
  • Easily and economical assembly
  • Many accessories available
  • Versatile for inventory changes
  • Lock automatically snaps into place and secures beam
  • Built in safety clips lock into place when the beam has been properly installed
  • Compatible with all tear-drop style uprights
  • Capacities range from 2,000 lbs – 7,000 lbs
  • Simplify stock management




Description Upright
Item# BN640096
Work With Beam
Type Full Welded
Construction Teardrop
Material Roll Formed Steel
Section 3" x 3"
Upright Gauge 14 GA
Height 144 Inch
Depth 42 Inch
Finish Powder coated
Color Blue
Footplates 4" X 4 1/4"
Original China
