High Visible Teardrop Pallet Rack Wire Decking 3 Channels Pallet Racking Accessories

Basic Information
Place of Origin: China
Brand Name: Brynick
Certification: N/A
Model Number: BN640151
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Description: Wire Mesh Decking Work With: Beam
Material: 4 GA Steel Wire Depth: 48 Inch
Width: 42 Inch Finish: ZInc Plated

Product Description

High Visible 48 Inch Depth x 42 Inch Wide Pallet Rack Wire Mesh Decking with 3 Channels



Description

Strong open grid 4 gauge galvanized welded wire decking features welded construction and 14-gauge channel supports, permits light, air and sprinkler penetration, minimizes dust and debris accumulation. Easy installation-simply drop into place over beams. Use beams that have 1 1/2" or 1 5/8" step. Capacity of 2000 LBs. Galvanized and powder coating are available. Measuring 48” deep front to back the 4’ x 42” wide pallet rack wire mesh decking works in conjunction with 48” deep upright frames and 96” long & 144” long pallet rack cross beams. Two wire decks are needed per 8’ beam level and three of these products are needed for each 12’ wide pallet rack cross beam level one is trying to cover. Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Easy and quick assembly for all your pallet storage needs, tool free, tear drop, snap-in locking slots ensure a secure and stable unit. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking

Specify channel suffix:

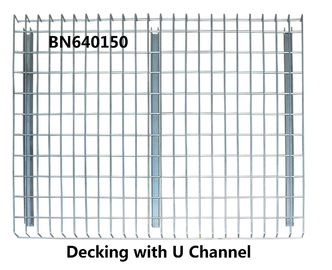

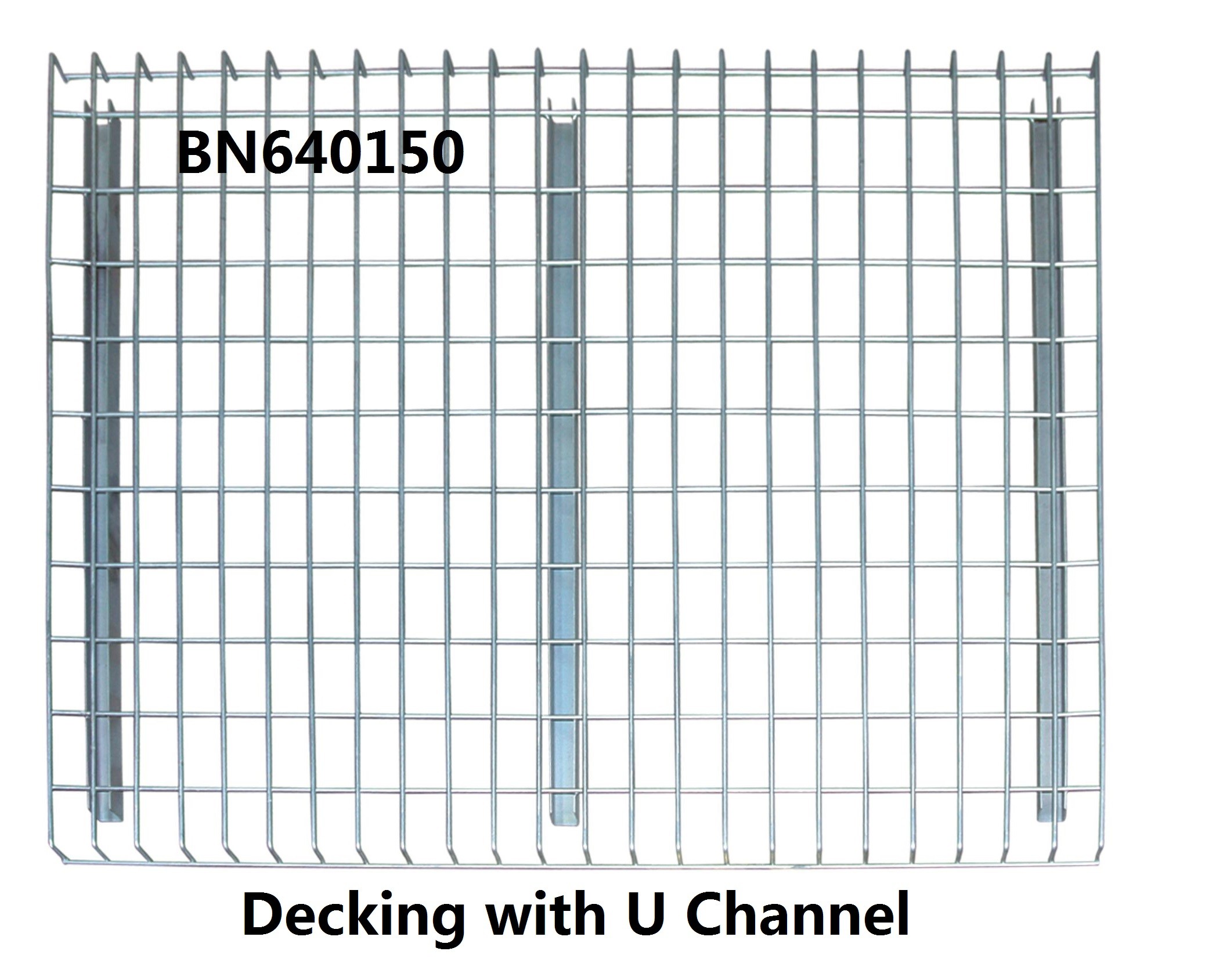

U channel (U)

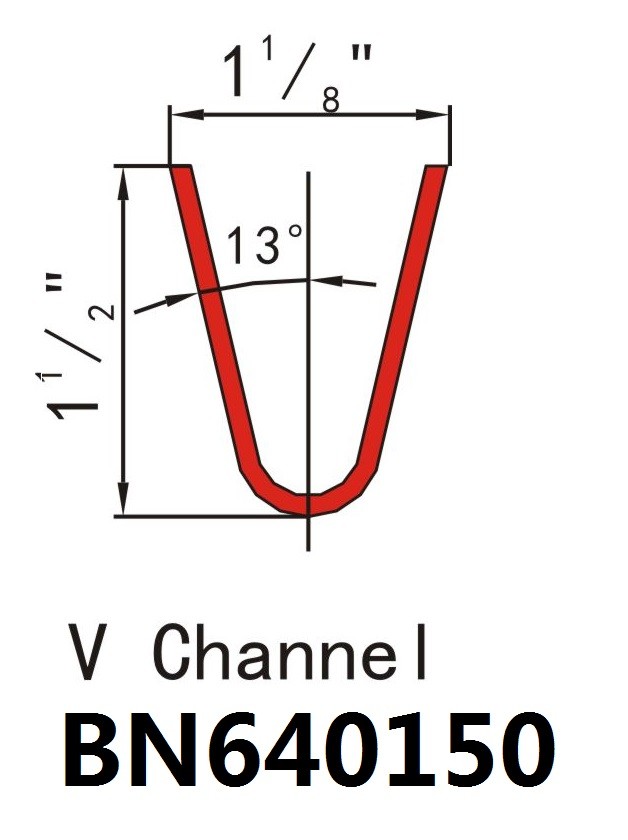

V channel (V)

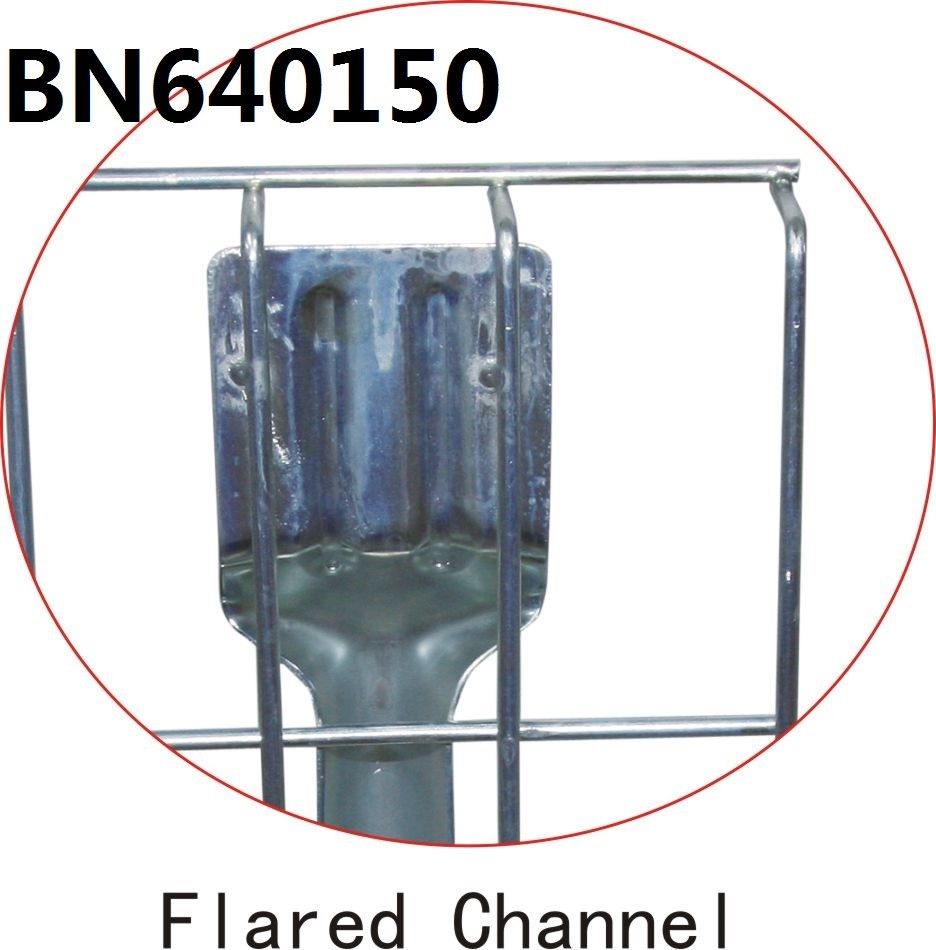

Flared channel (F)

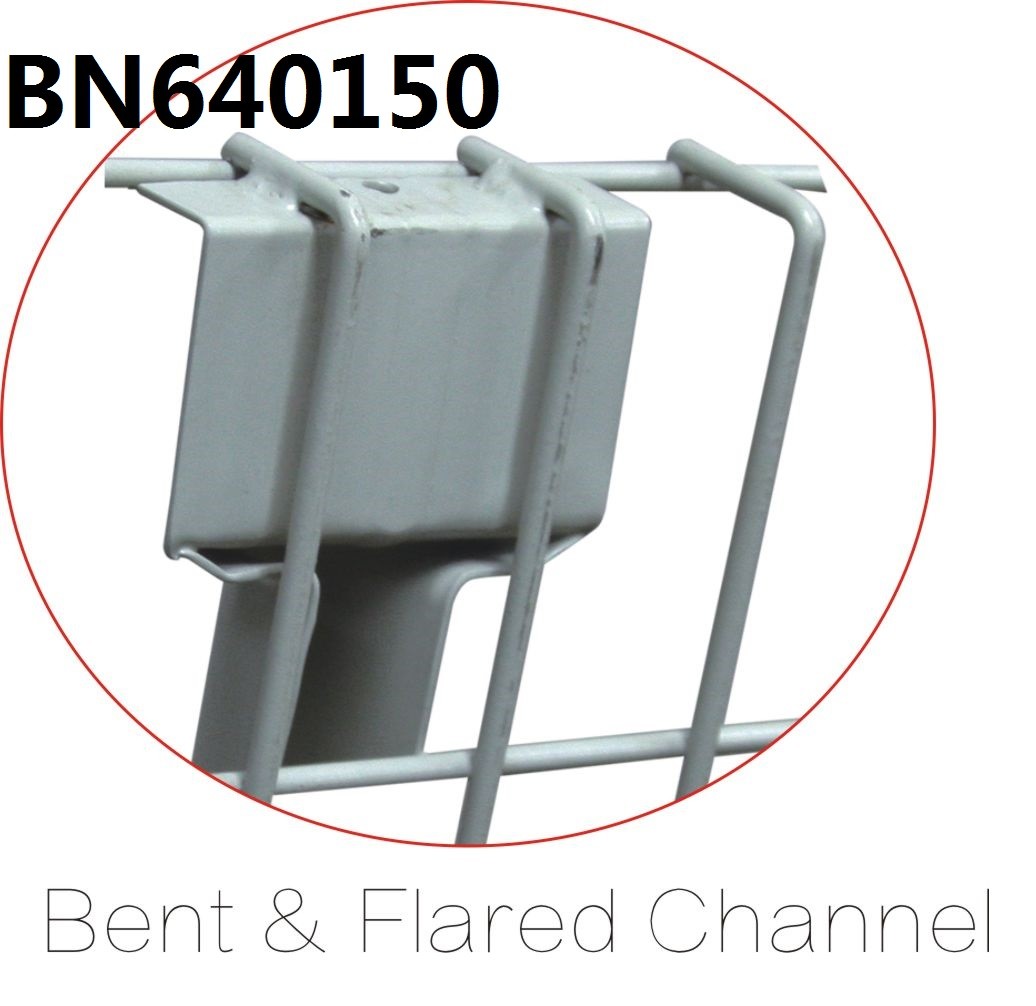

Bent & flared channel (BF)

A wide array of sizes and styles are available that will insure that the proper deck is specified. Store split case and open case items on shelves using wire decks, which have been proven to provide a more uniform support for pallet loads over conventional pallet support bars alone.



Features

  • Improves illumination, visibility and cooling throughout your warehouse
  • Adheres to fire codes that require 70% open decking for sprinkler penetration
  • Mesh design keeps items from falling through
  • No hardware required, decking is simply lowered into place
  • Capacity of 2,500 LBs per deck (evenly distributed)
  • Fully welded deck reinforced with U-channels
  • Powder coated gray finish protects your decking from corrosion and rust





Application

Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications





Specification

Description Wire Mesh Decking
Item# BN640151
Work With Beam
Construction Welded
Material 4 GA
Depth 48 Inch
Width 42 Inch
Mesh 2" x 4"
Assembly Unassembled
Capacity 2000 LBs
Finish Zinc Plated
Color Silver
Include 3 Channels
Original China
