High Strength 12 GA Steel Teardrop Pallet Rack Beams Powder Coating 6" Height

Basic Information
Place of Origin: Ningbo
Brand Name: Brynick
Certification: N/A
Model Number: BN640134
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Parts: Step Beam Work With: Teradrop Upright
Capacity: 6700 LBs Height: 6"
Finish: Powder Coating Color: Orange

Product Description

Heavy Duty 12 GA Steel 6 Inch High Steel Beam Capacity of 6700 LBs



Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications



  • Many accessories available
  • Beams adjustable on 2 inch centers
  • 100% welded uprights
  • Large base plate
  • Lock automatically snaps into place and secures beam
  • Immediate access to every pallet load
  • Built in safety clips lock into place when the beam has been properly installed
  • Simplify stock management
  • Compatible with all tear-drop style uprights
  • Capacities range from 2,000 lbs – 7,000 lbs
  • Easily and economical assembly
  • Versatile for inventory changes



High strength 14-gauge beams. 3 inch high x 1-1/2" step beams accommodate cross bars and decking. Lock automatically snaps into place and secures. To select load beam determine the desired length by adding a minimum of 10" to two pallet widths or 14" to three pallet widths. Additional spacing may be required for pallets with excessive load overhang. Ensure that each pair of beams is capable of supporting the weight of the pallets per level. Beam is used in pairs and sold by piece. Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Easy and quick assembly for all your pallet storage needs, tool free, tear drop, snap-in locking slots ensure a secure and stable unit. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. 4" x 4-1/4" x 12 gauge welded base plate anchors upright to floor and distributes weight evenly. The Starter Units include two upright frames and two pairs of beams. Add-On Units include one upright frame and two pairs of beams.



Description Beam
Item# BN640134
Work With Teardrop Upright
Construction Roll Formed
Material 12 GA

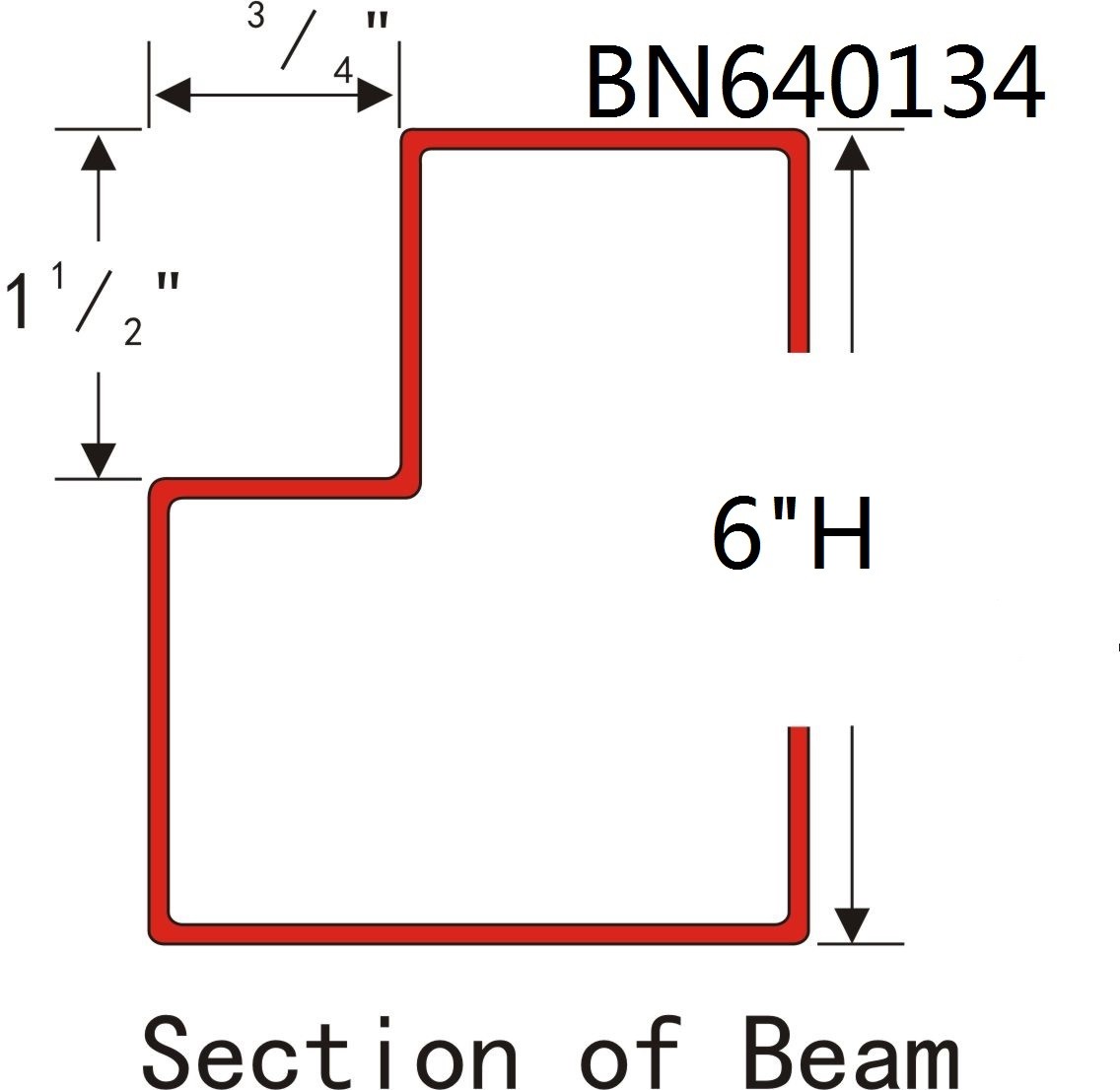

Height 6"

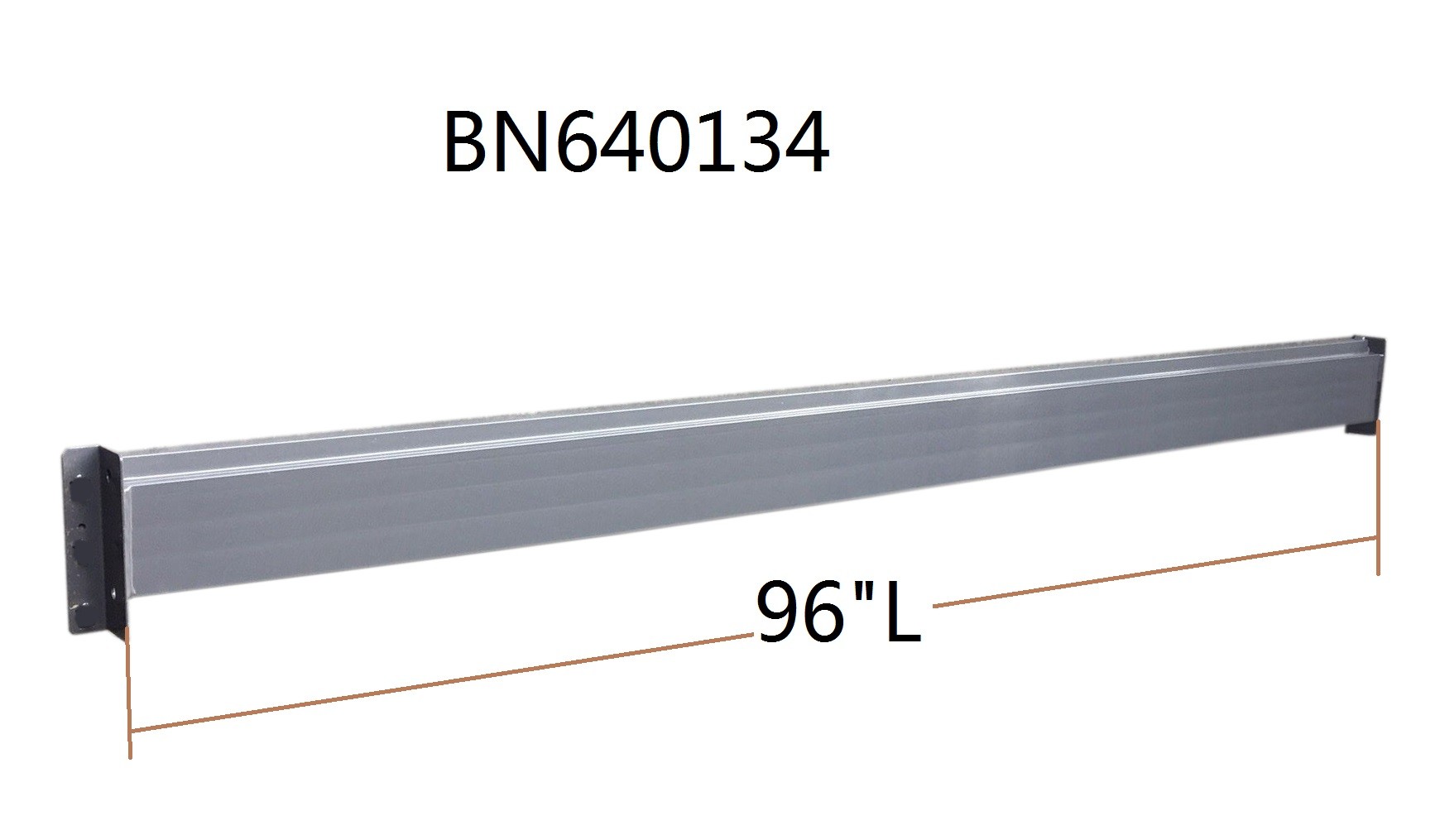

Length 96 Inch
Beam Style Step Beam
Beam Gauge 12 GA
Beam Step Depth 3/4"
Beam Step Height 1 1/2"
Assembly Unassembled
Capacity 6700 LBs
Finish Powder coated
Color Orange

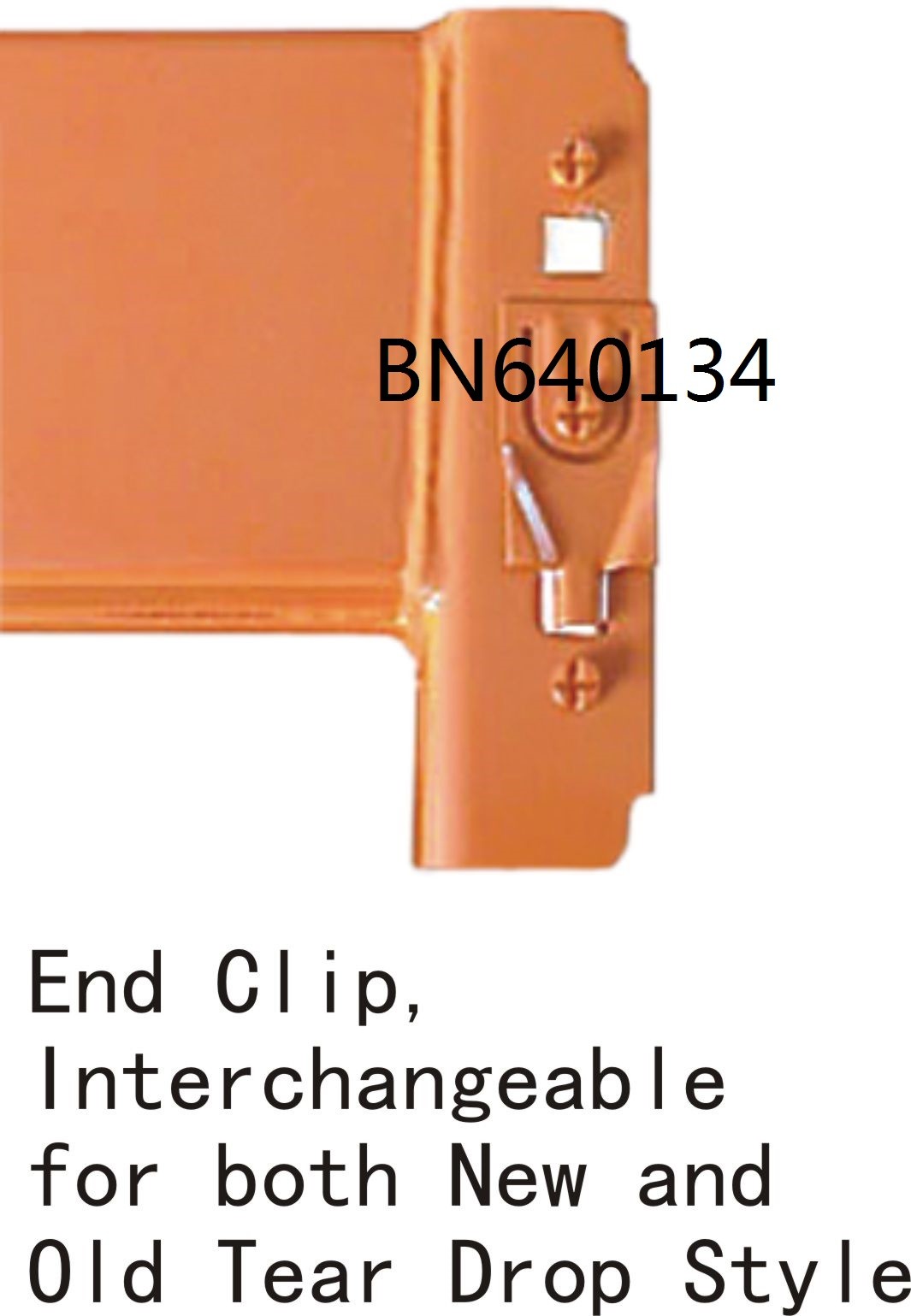

Include End Clip
Original China
