Roll Formed Steel Warehouse Racking Beams With End Clip / Removable Safety Pins

Basic Information
Place of Origin: Ningbo
Brand Name: Brynick
Certification: N/A
Model Number: BN640113
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Description: Beam Use With: Upright
Construction: Roll Formed Height: 3"
Length: 120 Inch Capacity: 2500

Product Description

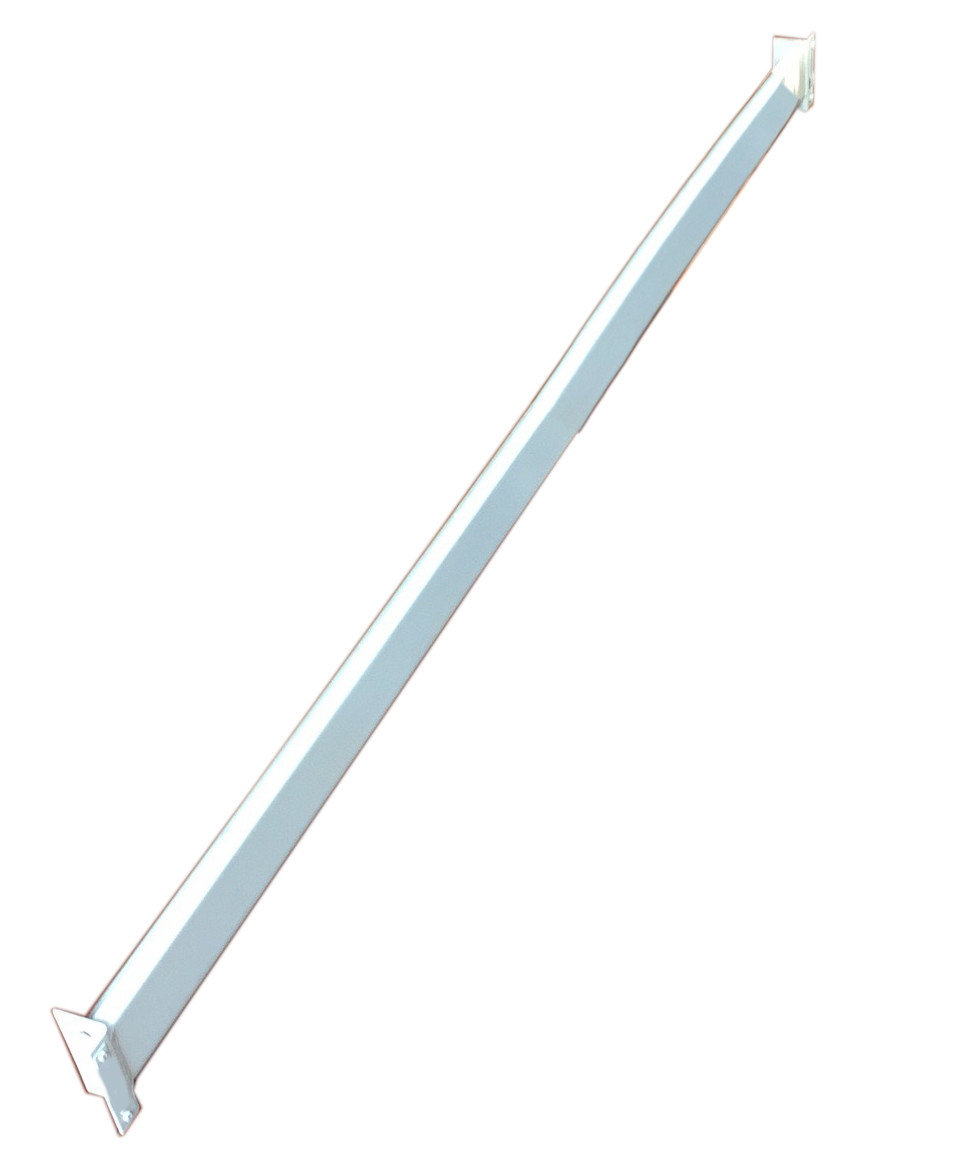

Roll Formed Steel Beam with End Clip and Removable Safety Pins 3 Inch High and 120 Inch Long



Description

High strength 14-gauge beams. 3 inch high x 1-1/2" step beams accommodate cross bars and decking. Lock automatically snaps into place and secures. To select load beam determine the desired length by adding a minimum of 10" to two pallet widths or 14" to three pallet widths. Additional spacing may be required for pallets with excessive load overhang. Ensure that each pair of beams is capable of supporting the weight of the pallets per level. Beam is used in pairs and sold by piece. Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Easy and quick assembly for all your pallet storage needs, tool free, tear drop, snap-in locking slots ensure a secure and stable unit. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. 4" x 4-1/4" x 12 gauge welded base plate anchors upright to floor and distributes weight evenly. The Starter Units include two upright frames and two pairs of beams. Add-On Units include one upright frame and two pairs of beams.



Application

Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications



Feature

  • Beams adjustable on 2 inch centers
  • 100% welded uprights
  • Large base plate
  • Easily and economical assembly
  • Many accessories available
  • Versatile for inventory changes
  • Lock automatically snaps into place and secures beam
  • Immediate access to every pallet load
  • Simplify stock management

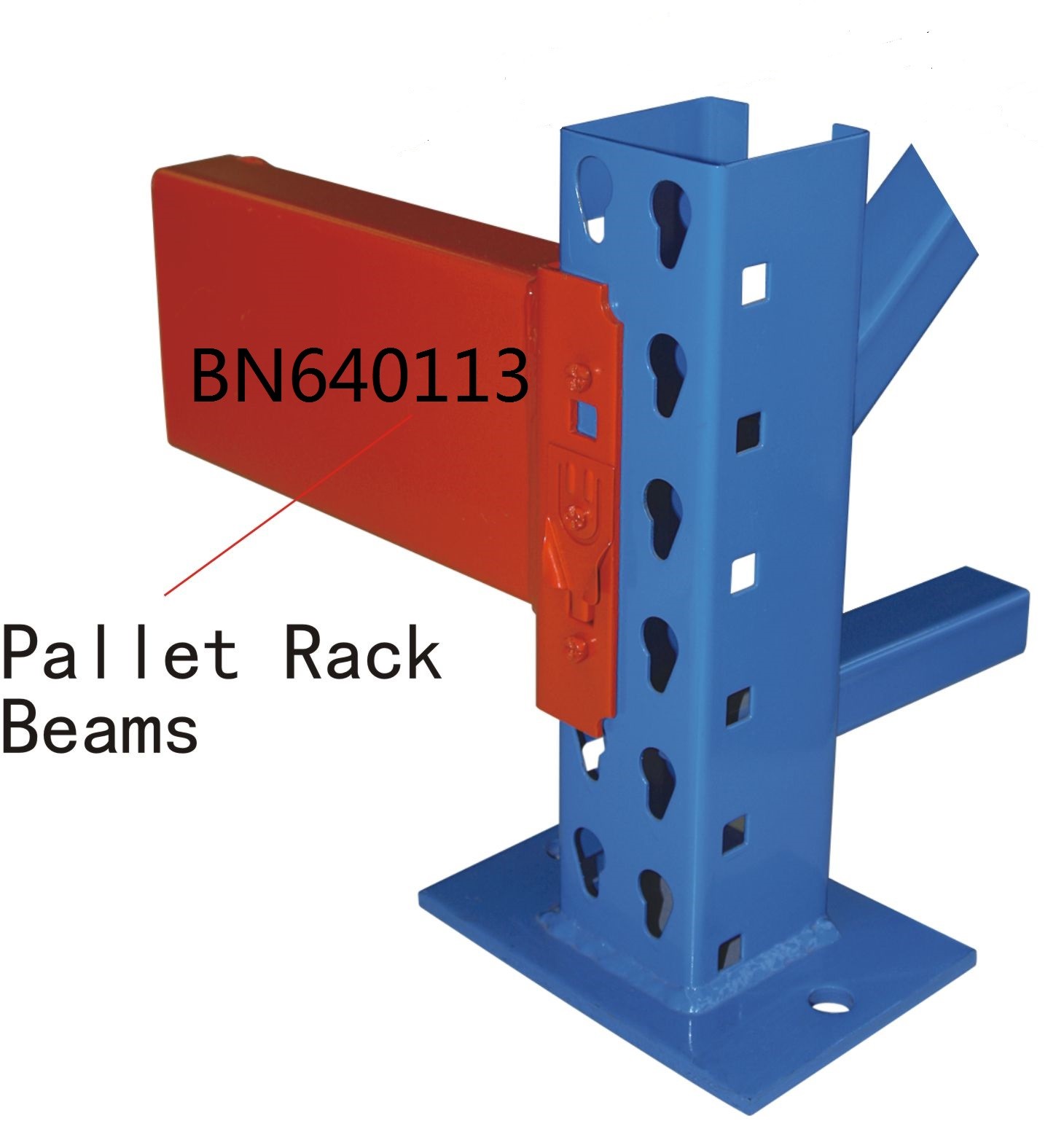

  • Compatible with all tear-drop style uprights
  • Capacities range from 2,000 lbs – 7,000 lbs

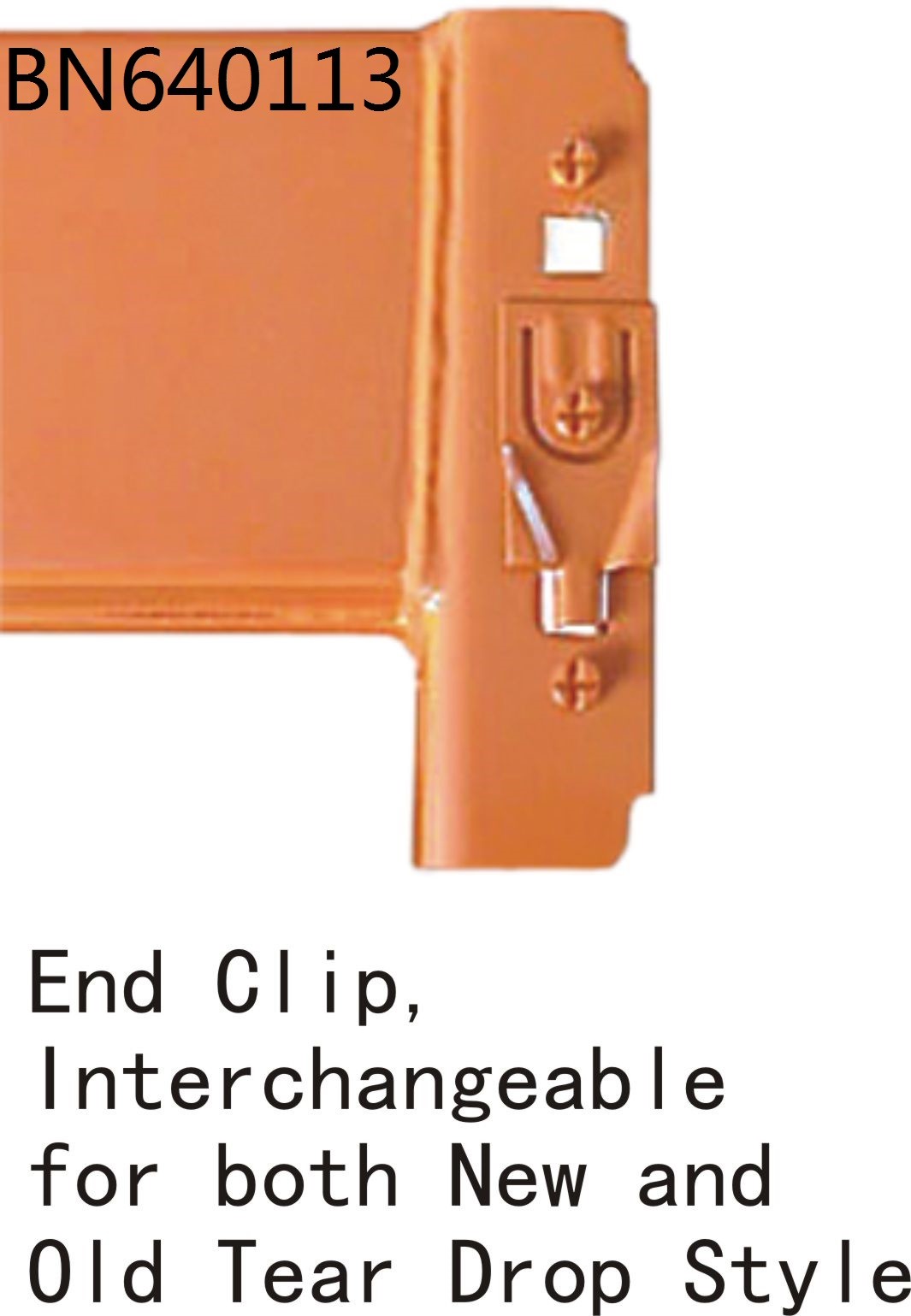

  • Built in safety clips lock into place when the beam has been properly installed





Specification

Description Beam
Item# BN640113
Work With Teardrop Upright
Construction Roll Formed
Material 14 GA
Height 3"

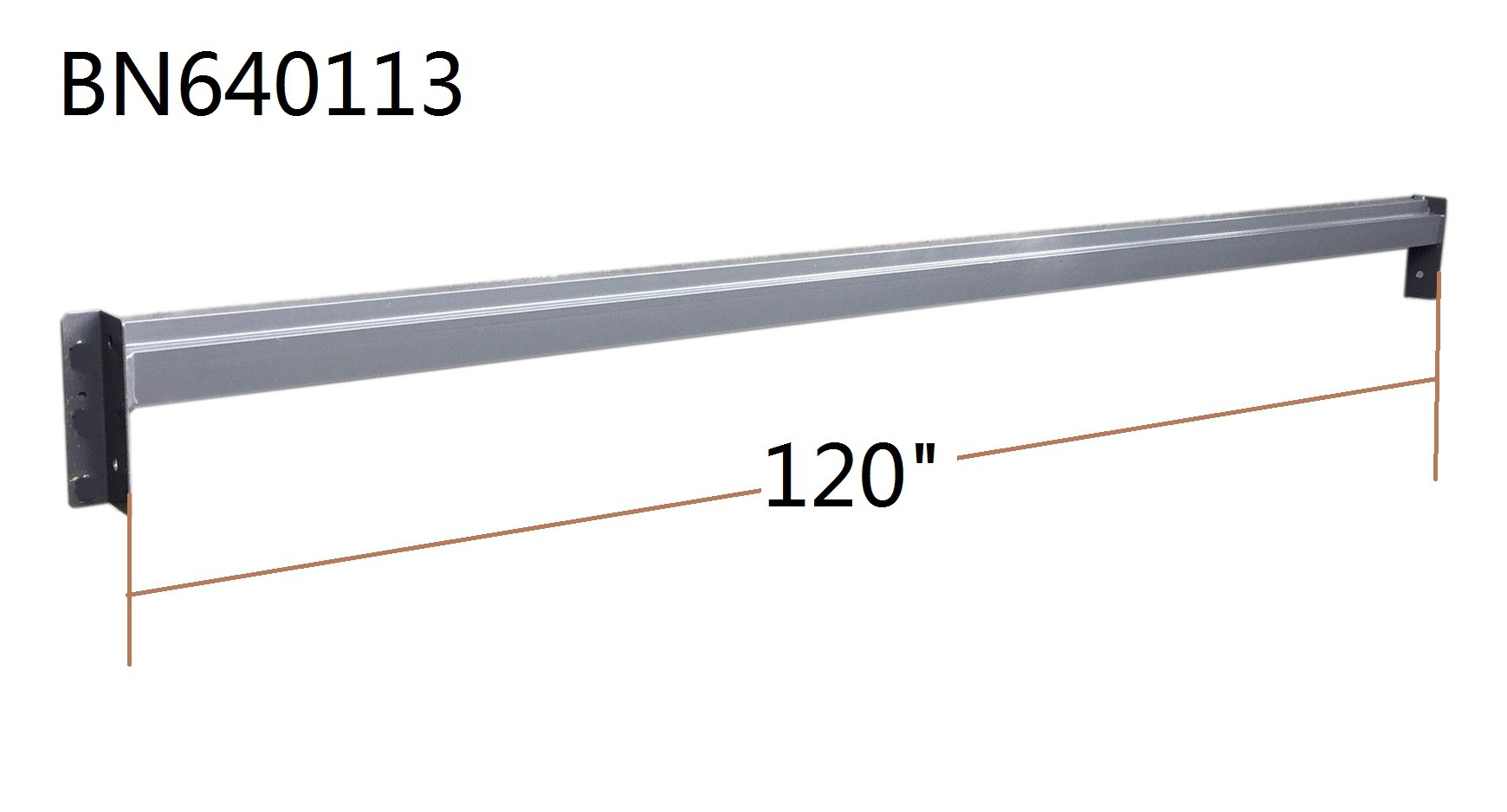

Length 120 Inch
Beam Style Step Beam
Beam Gauge 14 GA
Beam Step Depth 3/4"
Beam Step Height 1 1/2"
Assembly Unassembled
Capacity 2500 LBs
Finish Powder coated
Color Orange
Include End Clip
Original China
