| Place of Origin: | Ningbo China |
|---|---|
| Brand Name: | Brynick |
| Certification: | Meets OSHA 1910. 110standards |
| Model Number: | BN8010801 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Carton Flat Packing and Pallet |
| Delivery Time: | 5-30 days upon order quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2500 sets per 25 days |
| Description: | Cylinder Locker | Quantity Of Door: | 1 Door |
|---|---|---|---|
| Capacity: | 4 Gas Cylinders | Finish: | Powder Coated |
| Color: | Orange | Included: | Chain |
| Material: | 14 GA Steel | Construction: | Expanded Metal And Angle Frame |

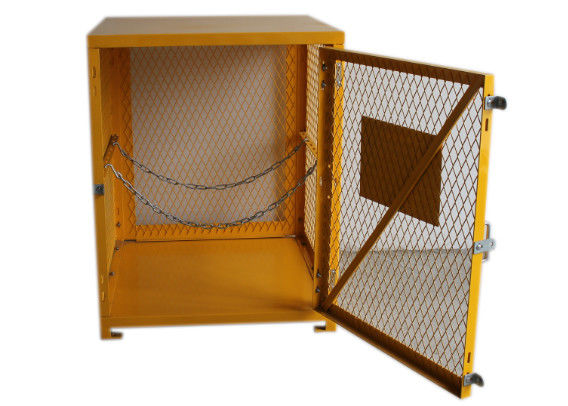

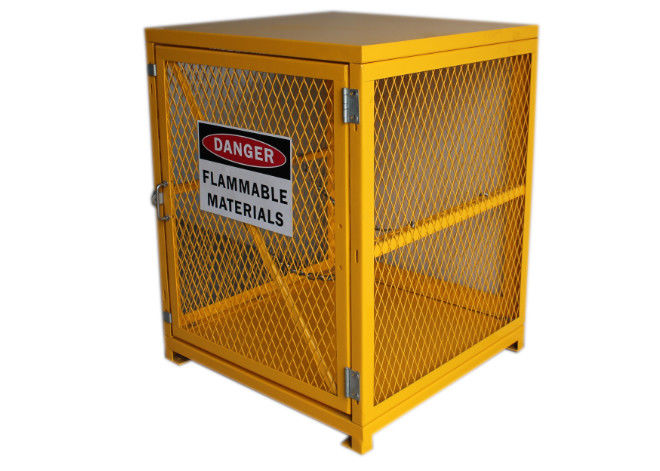

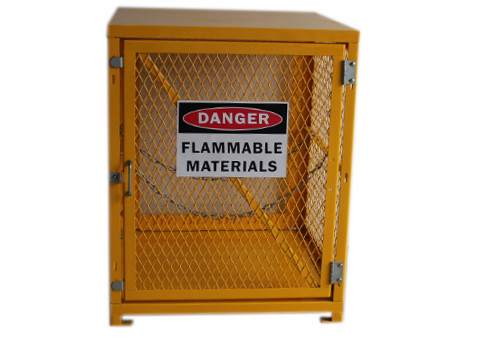

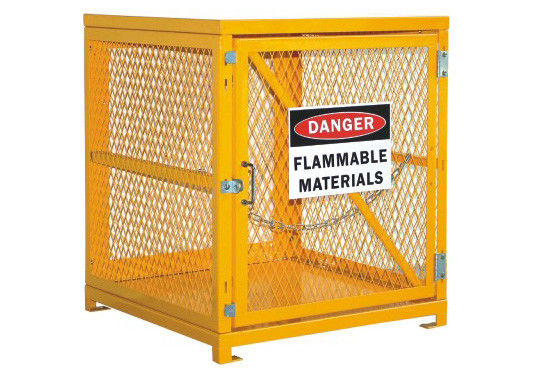

Desk Top Half Height Steel Cylinder Cabinet for 4 Vertical 31” W x 30” D x 35” H
Application
Vertical storage lockers Accommodate 4 vertical cylinders up to 30 inch tall
Features
Description
The steel Cylinder storage cabinet locker meet all relevant NFPA and OSHA standards for storing dangerous and flammable materials such as compressed gas/air cylinders and containers with ventilation and visibility. Made of heavy-gauge 14 GA expanded metal, 1 ½” x 1/8” angle steel frame, 14 GA steel top and bottom. Heavy-duty butt hinges and padlock hasp keeps contents secure for safety. Magnetic catch keeps door shut when not locked. Predrilled holes allow anchor to floor. Rust and acid resistant safety yellow powder coat finish for long lasting durability. Feature adjustable chains for securing vertical cylinders, adjust in 1" increments. Vertical storage lockers accept all standard vertical cylinders up to 59¾" or 65". Horizontal cylinder storage lockers accommodate 20 and 33½" lb. LPG cylinders and canisters. Warning " DANGER FLAMMABLE MATERIALS " sign located in front of the doors. Easy Assembly with pre – drilled holes on frame.
Specification
| Cylinder Cabinet Storage Type | Vertical |
| Cylinder Capacity | 4 Cylinder |
| Cylinder Size | 20 lb. & 33 lb |
| Cylinder type | LPG |
| Height | 35 Inch |
| Width | 31 Inch |
| Depth | 30 Inch |
| Safety Cabinet Door Type | Manual with Magnetic |
| Number of Adjustable Cabinet Shelves | 0 |
| Number of Fixed Cabinet Shelves | 1 |
| Total Shelf Quantity | 1 |
| Door Quantity | 1 |
| Number of Chain | 1 |
| Assembled/Unassembled | Unassembled / Predrilled Holes for Mounting |
| Color | Yellow |
| Cabinet Height Range | Desk or Table Height |
| Safety Cabinet Standards | OSHA 1910, NFPA 30 |
| Rated For Flammable Storage | Yes |
| Roof Material | 14 ga. Steel |
| Construction | Expanded Metal, Angle Iron Frame |
| Finish | Powder Coated |
| Weight | 117 Pounds |
