Place of Origin: | Ningbo Zhejiang |
---|---|
Brand Name: | Brynick |
Certification: | N/A |
Model Number: | BN670013 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Flat packing with forklift pallet base |
Delivery Time: | 5-30 days upon order quantity |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 2000 sets |
Material: | 14 Gauge Channel | Width: | 12 Feet |
---|---|---|---|
Finish: | Powder Coating | Height: | 6 1/2 Feet |
Gate Type: | Swing Double Open | Weight: | 164 Lbs |

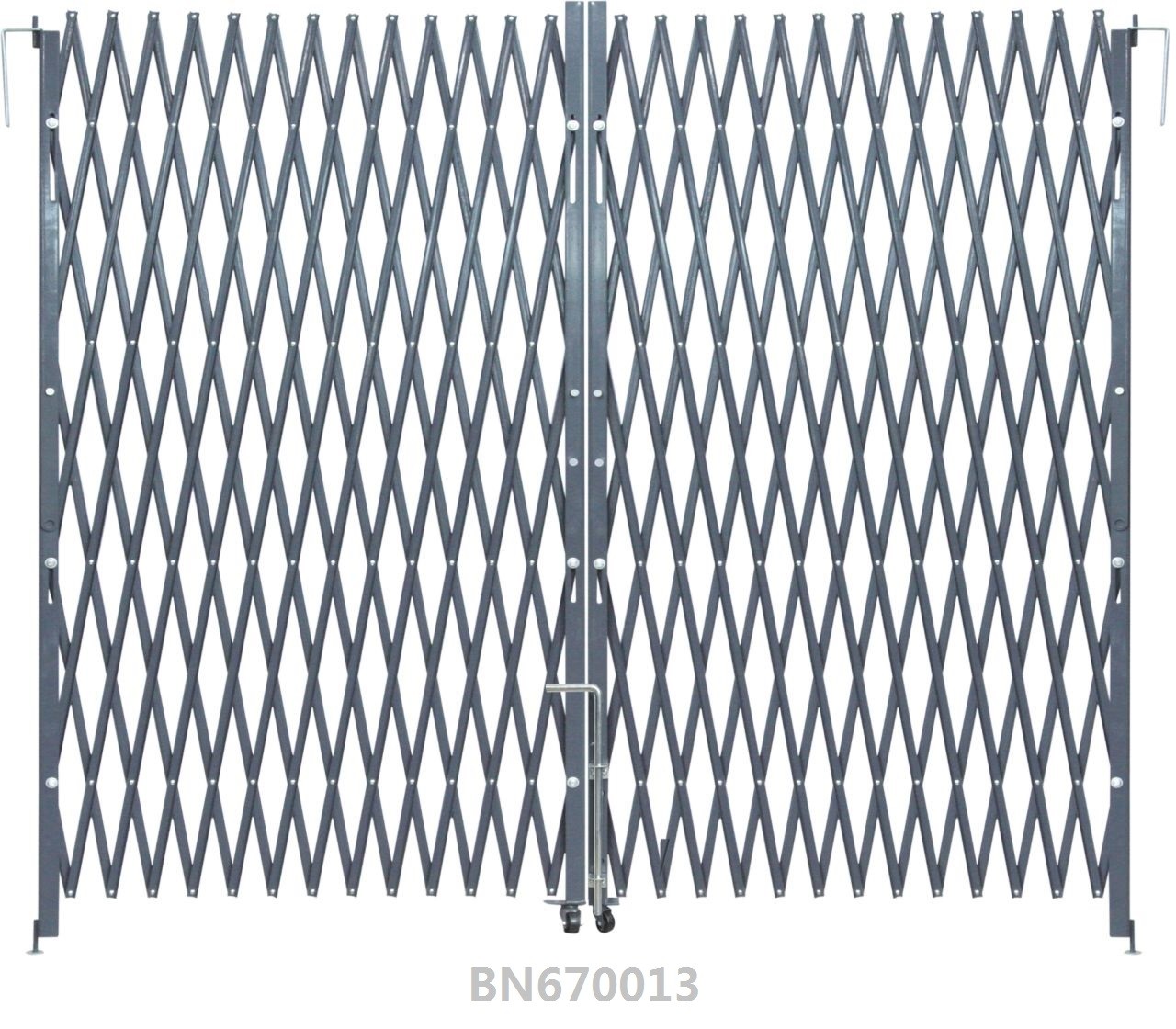

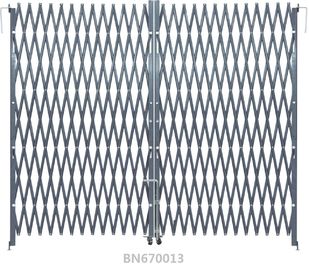

Dock Door Security Steel Double Folding Gate 12’ Opening x 6 1/2’ High, Grey Color
Application
Description

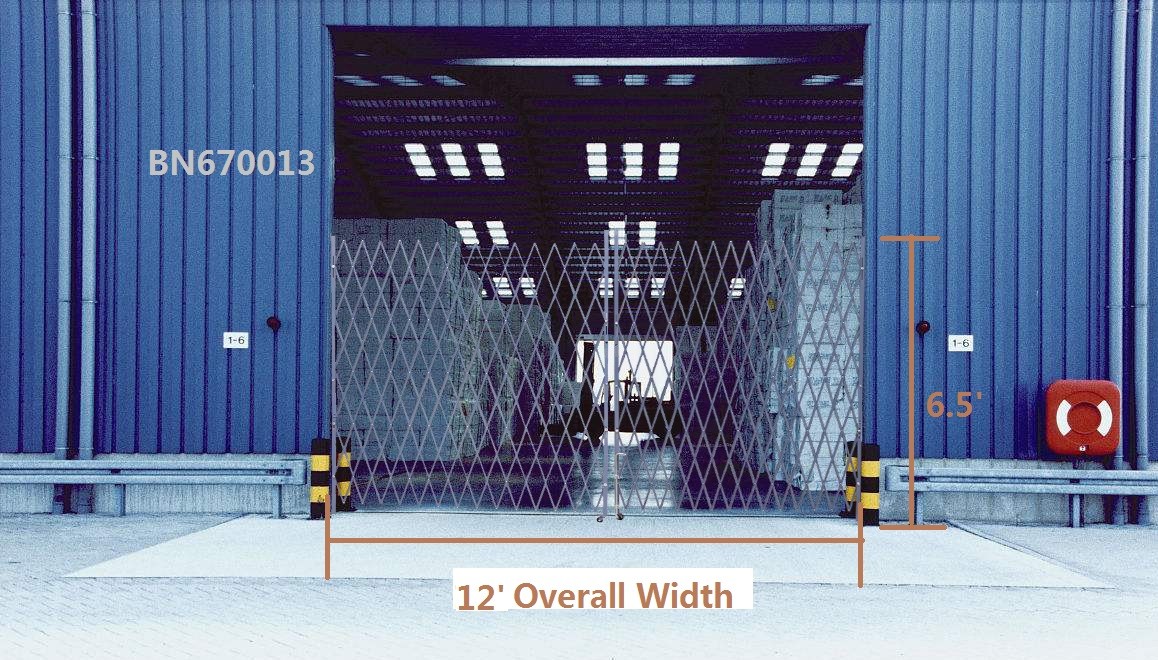

12’ opening and 6.5’ high dock door security steel double folding gate is portable, wall-mounted and can be quickly collapsed or expanded and locked. Steel Folding security gates are made with strong 3/4 14 gauge channel steel. These rolling security gates have an excellent construction fold completely and swing up to 180 degrees for opening and preserve the integrity of durable gray powder coat finish for a longer life. Zinc-plated rivets help prevent corrosion. Package includes 2 mounting brackets for wall, bearing washers, metal durable casters, and lock lugs. Padlocks not included.
Features
1, Heavy duty steel U channel webbing
2, Riveted Back to Back with high quality steel galvanized rivets. They'll withstand more stress and never rust, and never crack and the webbing never separate.
3, Heavy - duty 1 1/2” x 1 1/2” vertical member angles
4, Strong 3/4 inch, 14 gauge channel steel, the most strength and security in the market
5, solid galvanized steel 5/8" self - securing drop pins designed to fit directly into floor holes
6, swing up to 180 degrees for opening on the mountings, give a completely clear of obstructions.

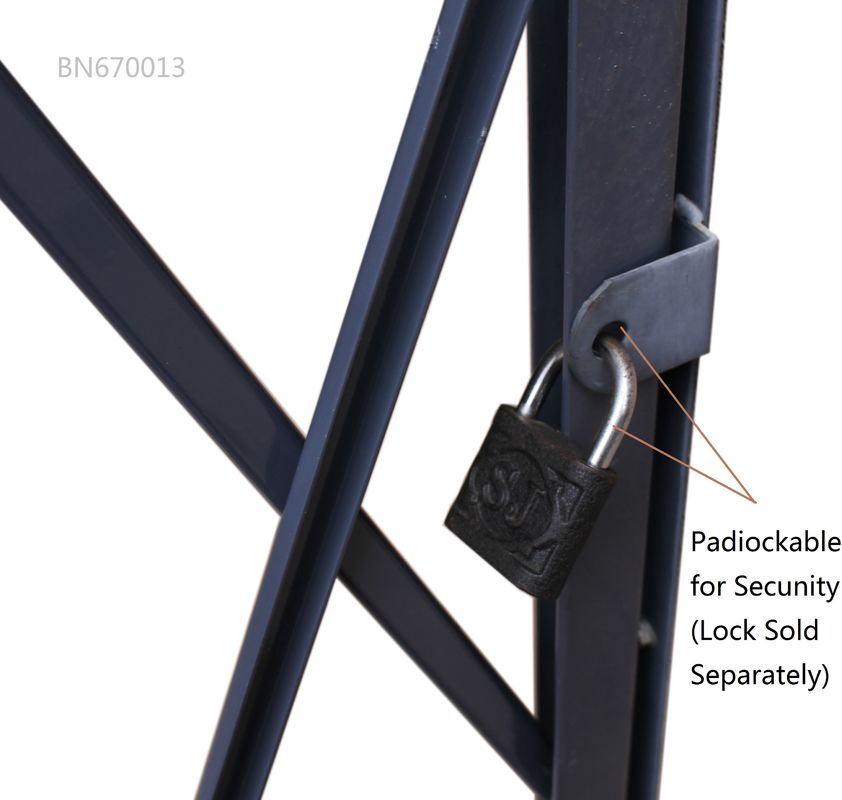

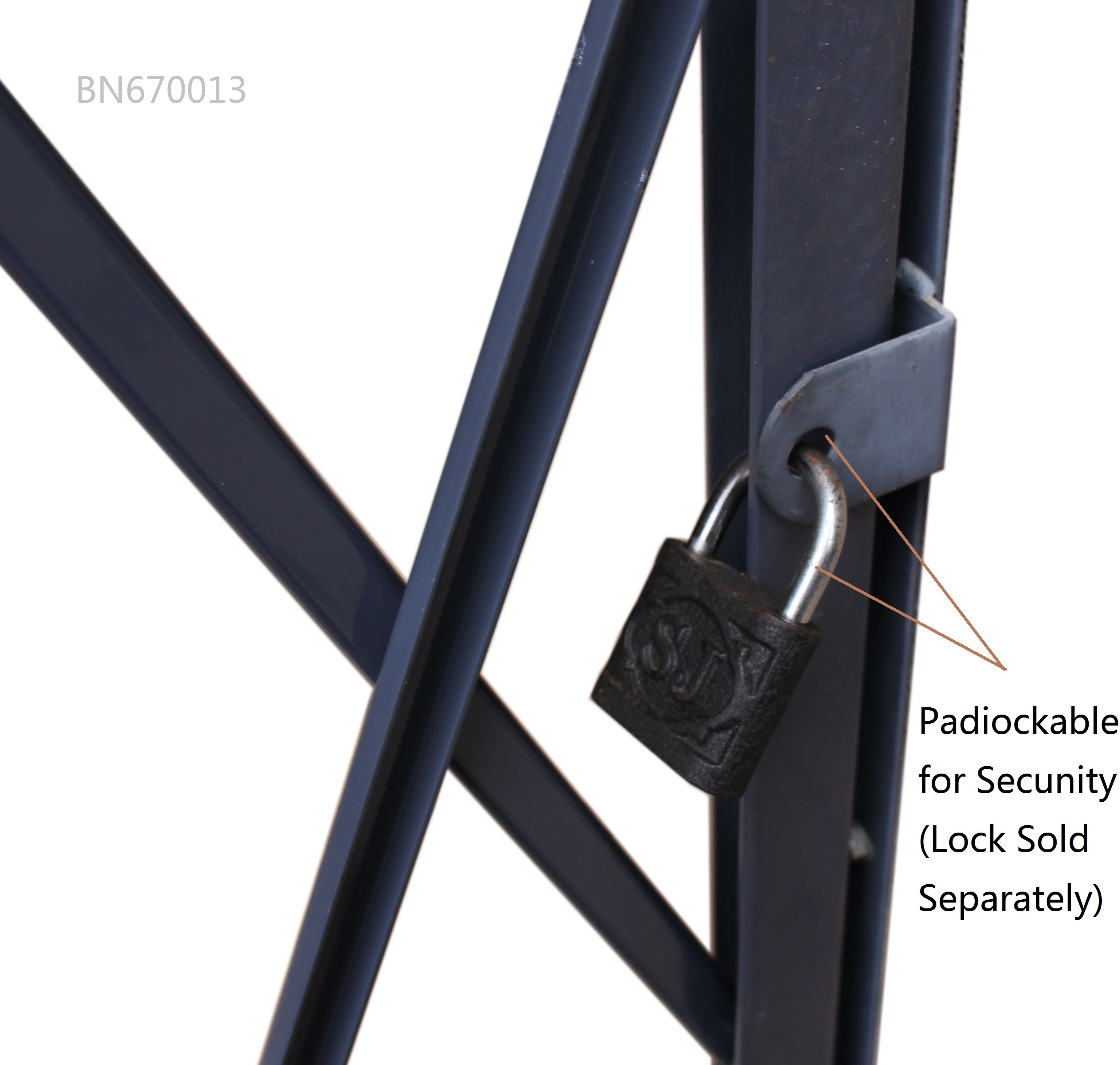

7, Locking on the right standard, and locking on the left available upon request.
8, Solid steel castor
9, easily installation within 30 minutes
Specification
Width | 12 Feet |
Wipe Height | 5.12 Inch |
Height | 6 1/2 Feet |
Finish | Powder Coating |
Color | Grey |
Assembly | Unassembled |
Material | Steel |
Folding Gate Type | Double Open |
Mounting Bolt Hole Diameter | 0.312 Inch |

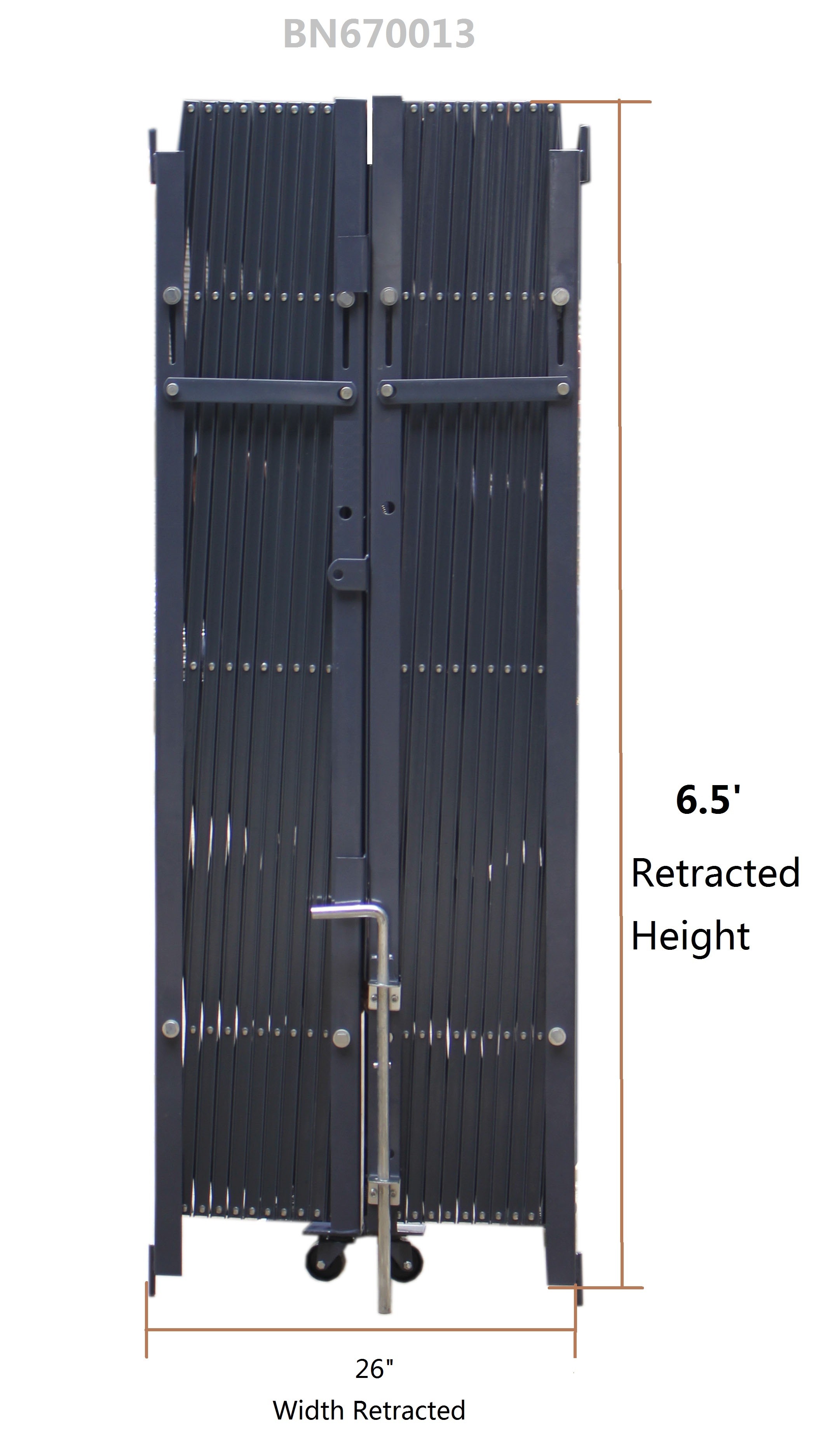

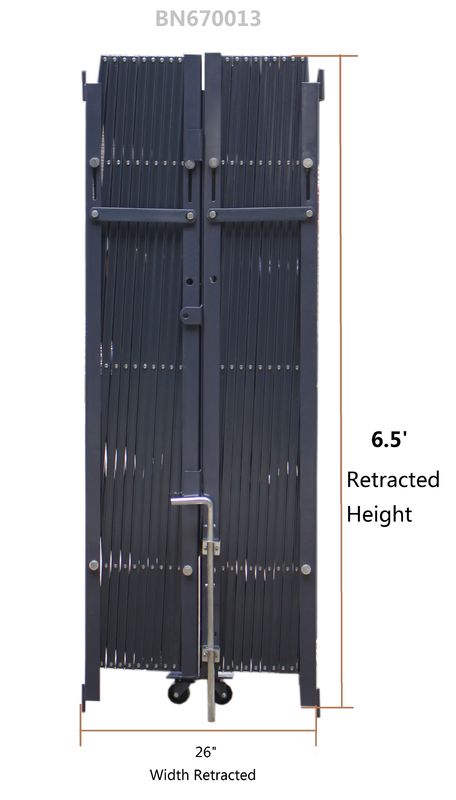

Retracted Width | 13 Inch |
