10’ Tall Teardrop Pallet Rack System Full Welded Upright Frame And Step Beam

Basic Information
Place of Origin: Ningbo China
Brand Name: Brynick
Certification: N/A
Model Number: BN640034
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Name: Pallet Rack Capacity: 6420 LBs
Assembly: Unassembled Finish: Powder Coated
Color: Blue Materail: Roll Formed Steel

Product Description

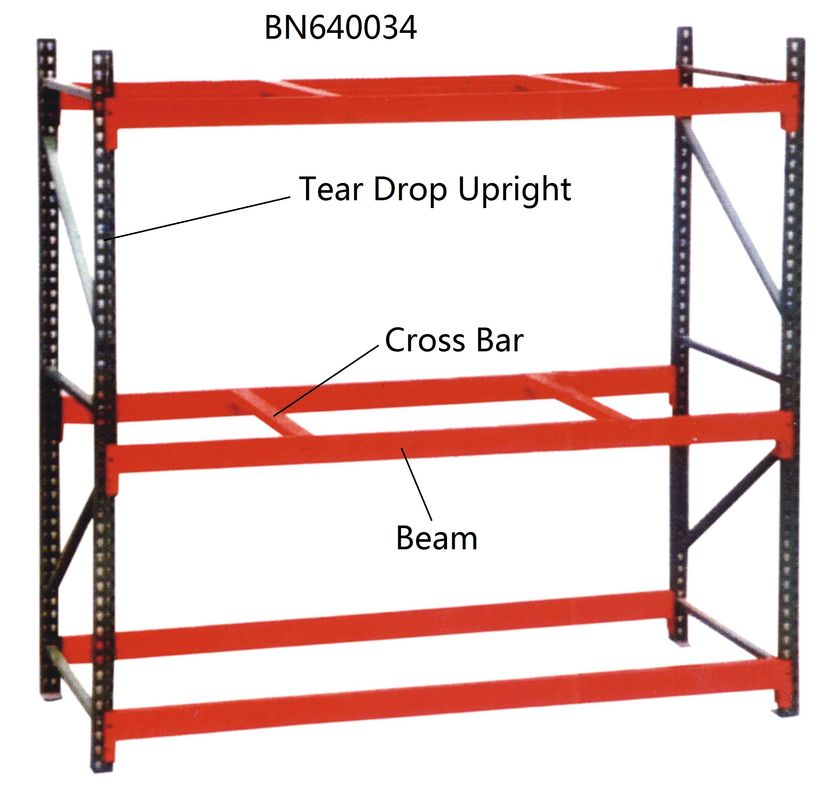

Full Welded Upright Frame and Step Beam 10’ Tall Teardrop Pallet Rack Start Unit



Description

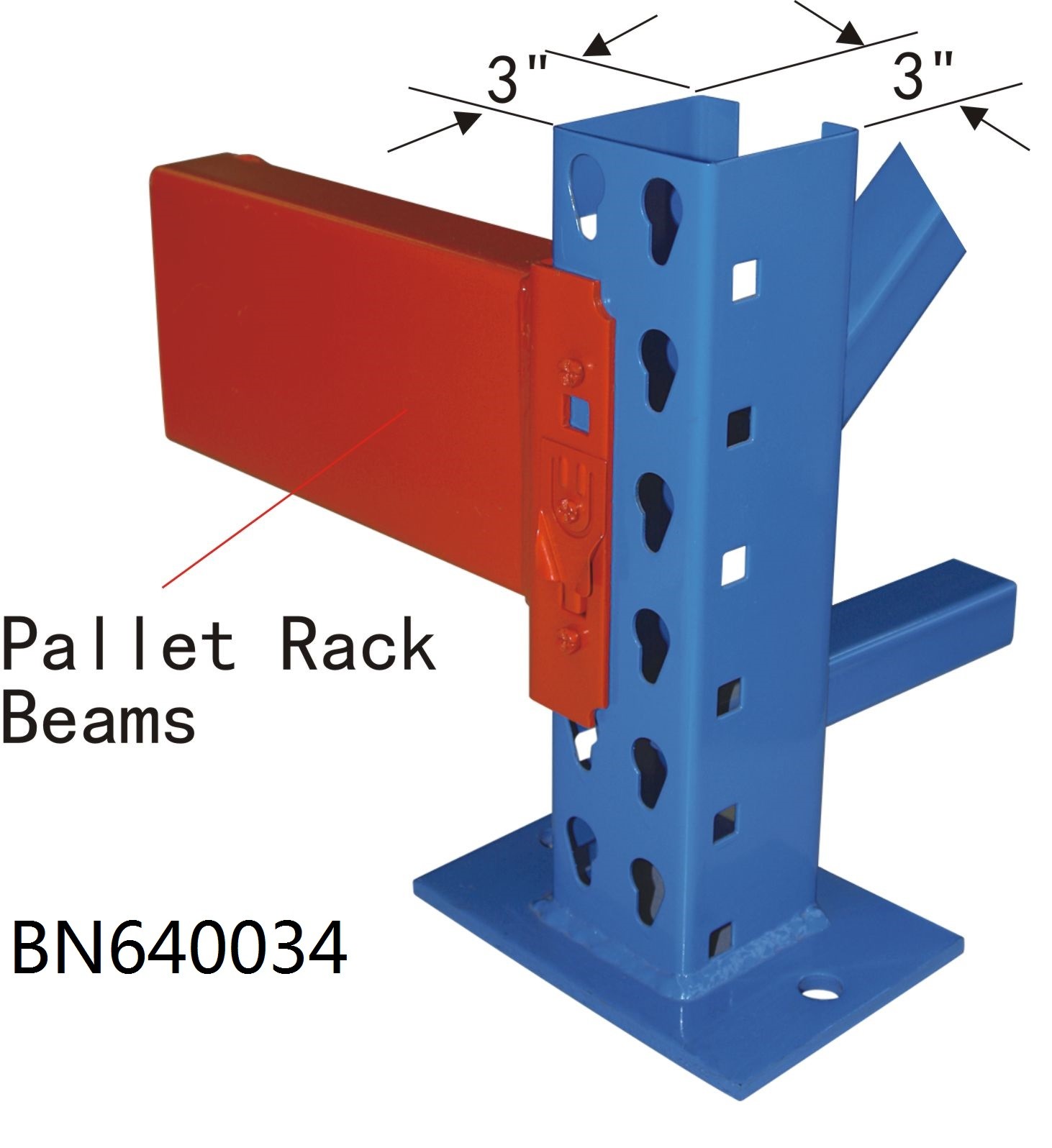

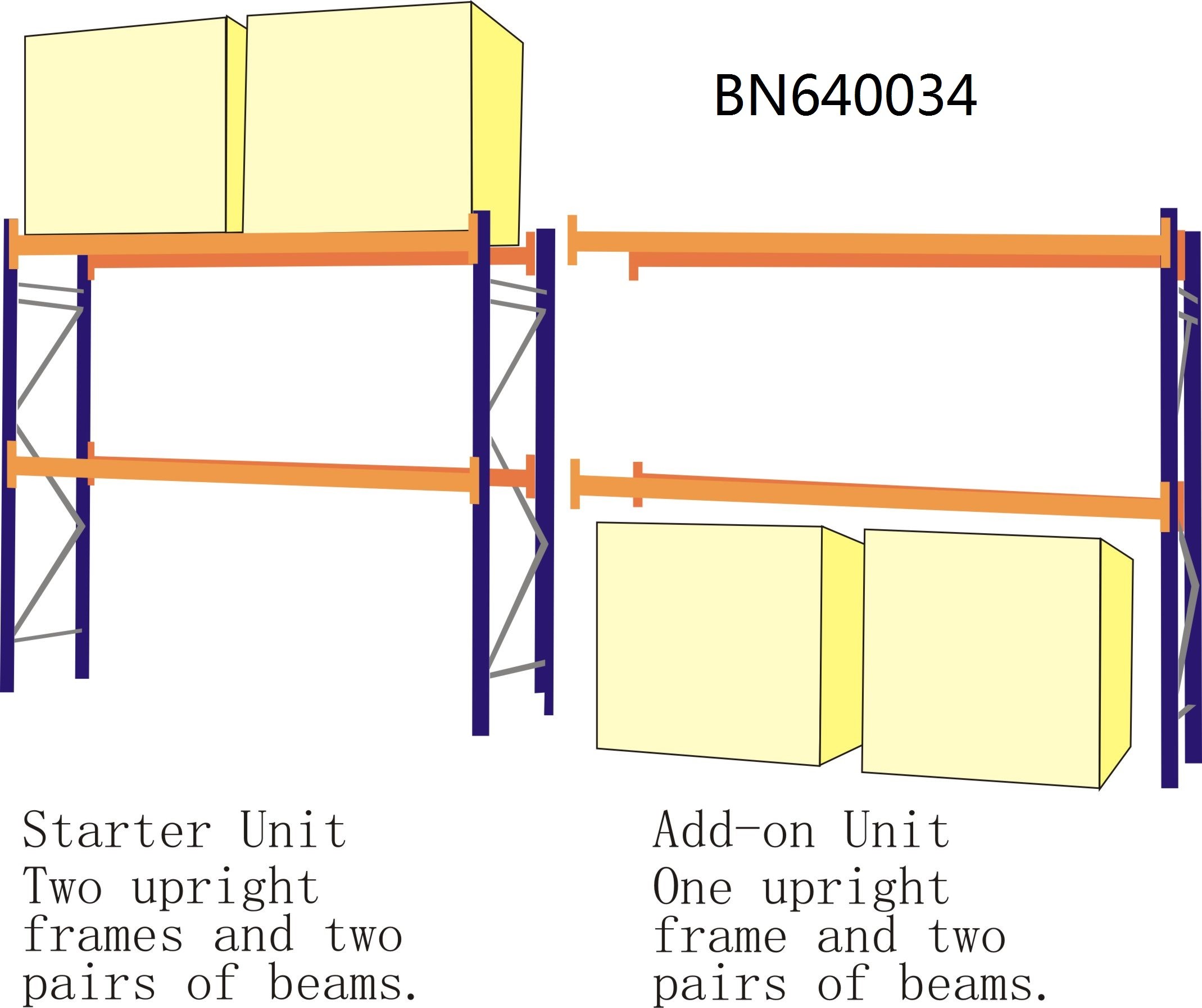

Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Easy and quick assembly for all your pallet storage needs, tool free, tear drop, snap-in locking slots ensure a secure and stable unit. The tight connections increase strength over time. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. The Starter Units include two upright frames and two pairs of beams. 4" x 4-1/4" x 12 gauge welded base plate anchors upright to floor and distributes weight evenly.



Application

Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications



Feature

  • 100% welded uprights
  • Beams adjustable on 2 inch centers
  • Large base plate
  • Many accessories available
  • Versatile for inventory changes
  • Lock automatically snaps into place and secures beam
  • Immediate access to every pallet load
  • Simplify stock management
  • Compatible with all tear-drop style uprights
  • Built in safety clips lock into place when the beam has been properly installed
  • No tools required for assembly
  • Capacities range from 2,000 lbs – 7,000 lbs





Specification

Description Pallet Rack
Item# BN640034
Type Starter
Construction Teardrop
Material Roll Formed Steel
Upright Gauge 14 GA
Width 108 Inch
Depth 42 Inch
Height 10 Feet
Beam Style Step Beam
Beam Gauge 14 GA
Beam Step Depth 3/4"
Beam Step Height 1 1/2"
Assembly Unassembled

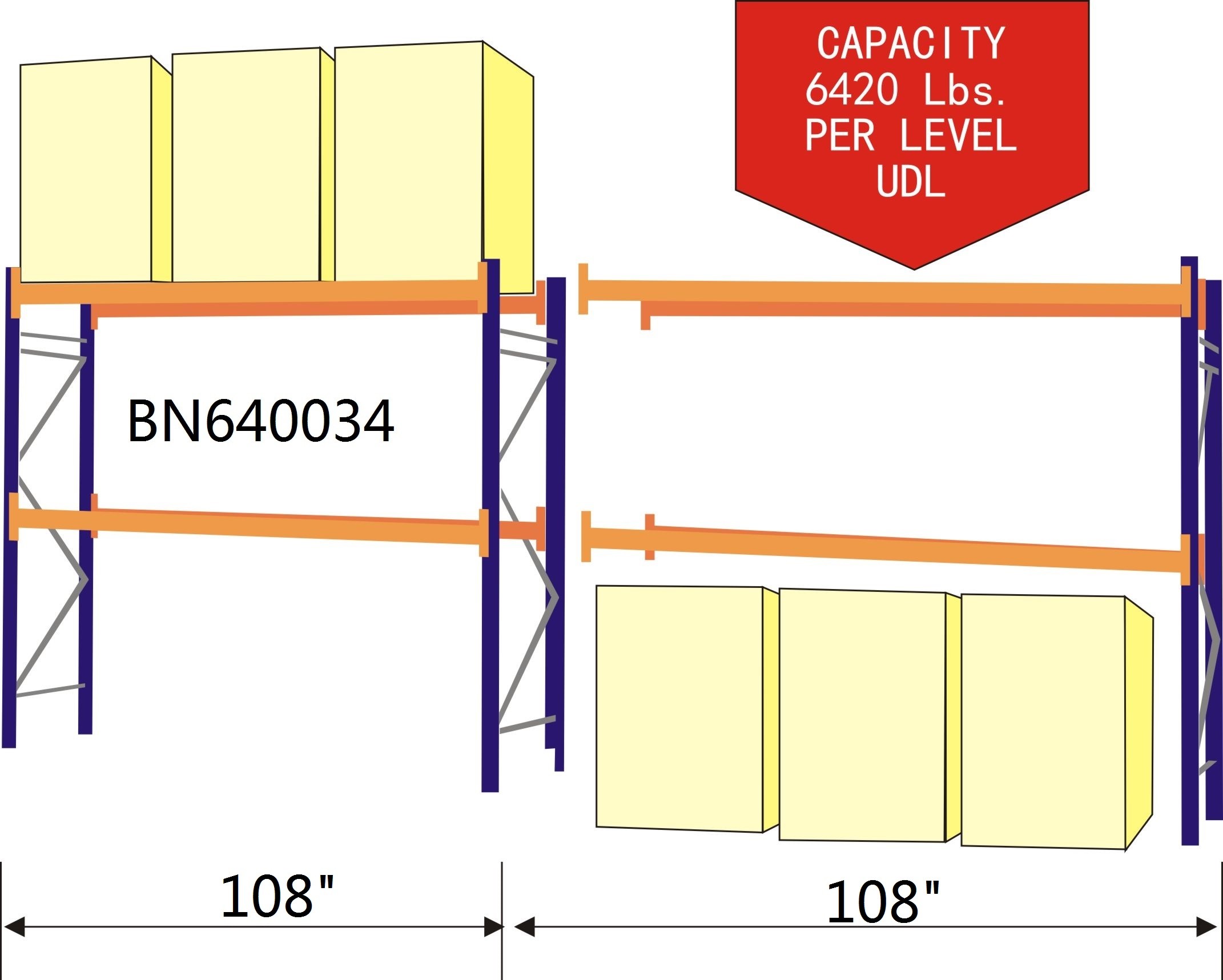

Capacity 6420 LBs
Finish Powder coated
Footplates 4" X 4 1/4"
Include 2 uprights, 4 beams
Connection Style Pin with automatic lock
