Full Welded Teardrop Pallet Rack Storage Shelves For Warehouse 120 *144 Inch

Basic Information
Place of Origin: China
Brand Name: Brynick
Certification: N/A
Model Number: BN640060
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Bulk Packing in container with Plastic Wrapped and Forklift Base
Delivery Time: 5-25 days upon order quantity
Payment Terms: D/A, Western Union, T/T, D/P, MoneyGram, L/C
Supply Ability: 5000 Units Per Month
Detail Information
Description: Teardrop Racking Funchtion: Add On
Footplate: 4" X 4 1/4" Include: 2 Upright And 4 Beams
Connect: Pin With Auto Lock Beam Style: Step Beam

Product Description

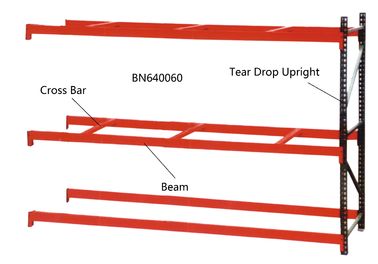

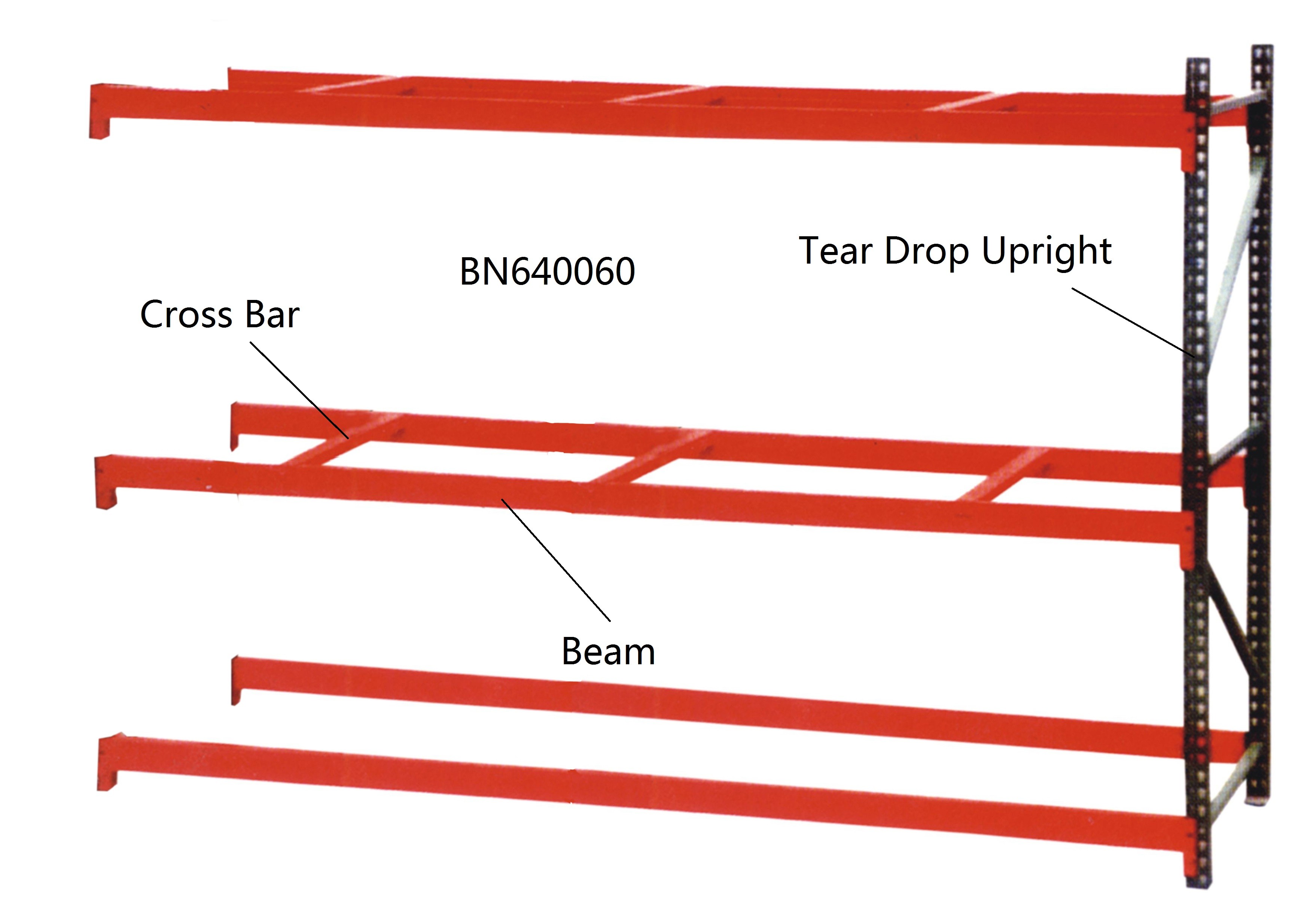

Add-On Kit for Extra Space Saver Tear Drop Pallet Racking Full Welded 120 Inch Wide and 144 Inch High



Application

Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications



Description

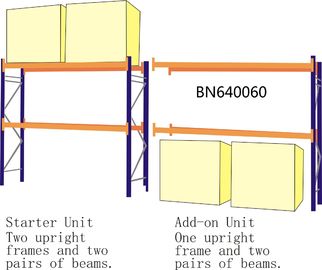

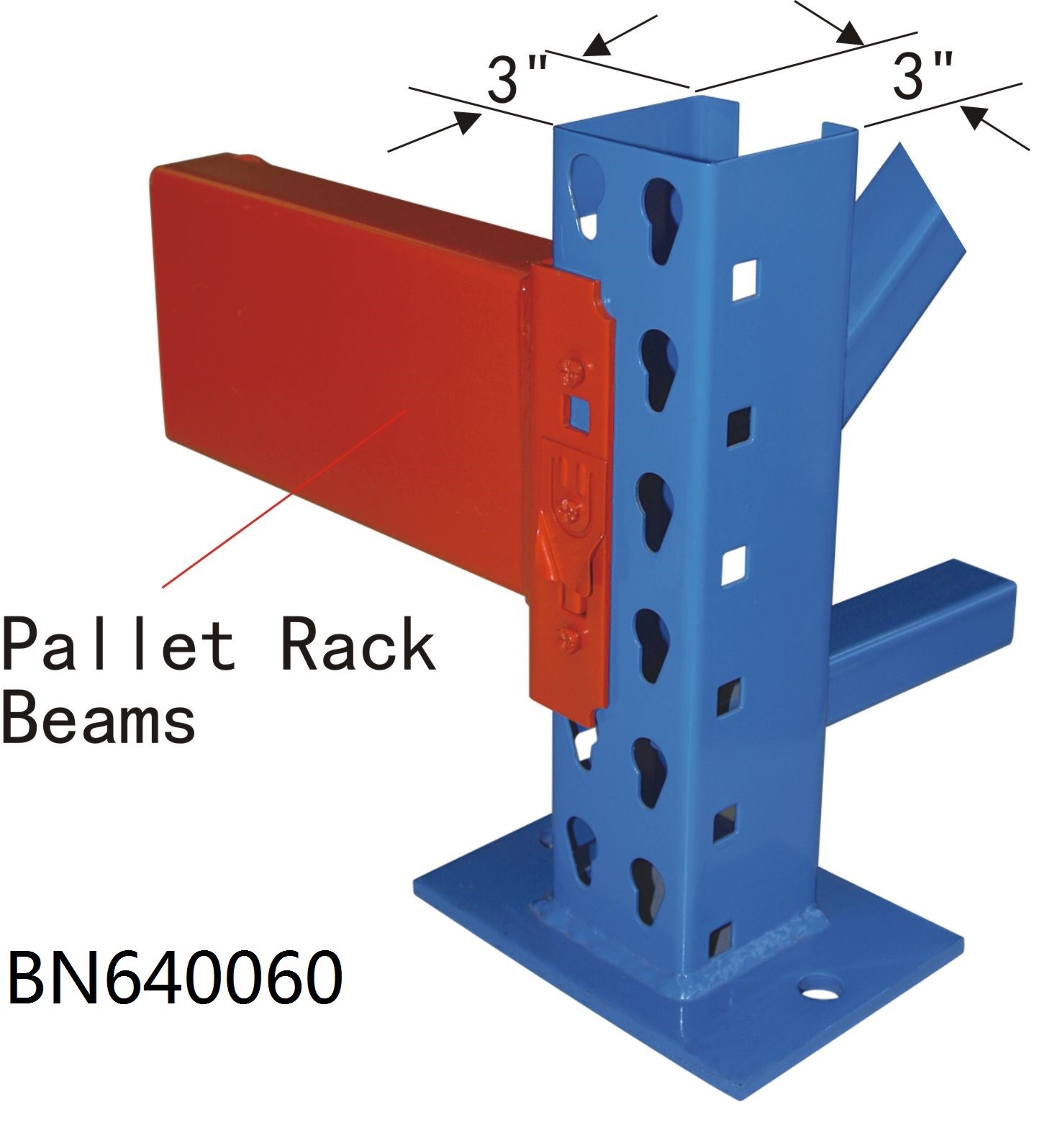

Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. Lock automatically snaps into place and secures beam, is visible for easy checking and fast adjustment. Welded braces provide maximum rigidity and stability. This storage rack design is economical, efficient and adaptable in application, due to quick assembly and adjustment without tools. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. Add-On Units include one upright frame and two pairs of beams. 4" x 4-1/4" x 12 gauge welded base plate anchors upright to floor and distributes weight evenly.



Feature

  • 100% welded uprights
  • Beams adjustable on 2 inch centers
  • Large base plate
  • Easily and economical assembly
  • Many accessories available
  • Versatile for inventory changes
  • Lock automatically snaps into place and secures beam
  • Direct access to each pallet
  • Simplify stock management
  • Compatible with all tear-drop style uprights
  • Built in safety clips lock into place when the beam has been properly installed
  • No tools required for assembly
  • Capacities range from 2,000 lbs – 7,000 lbs

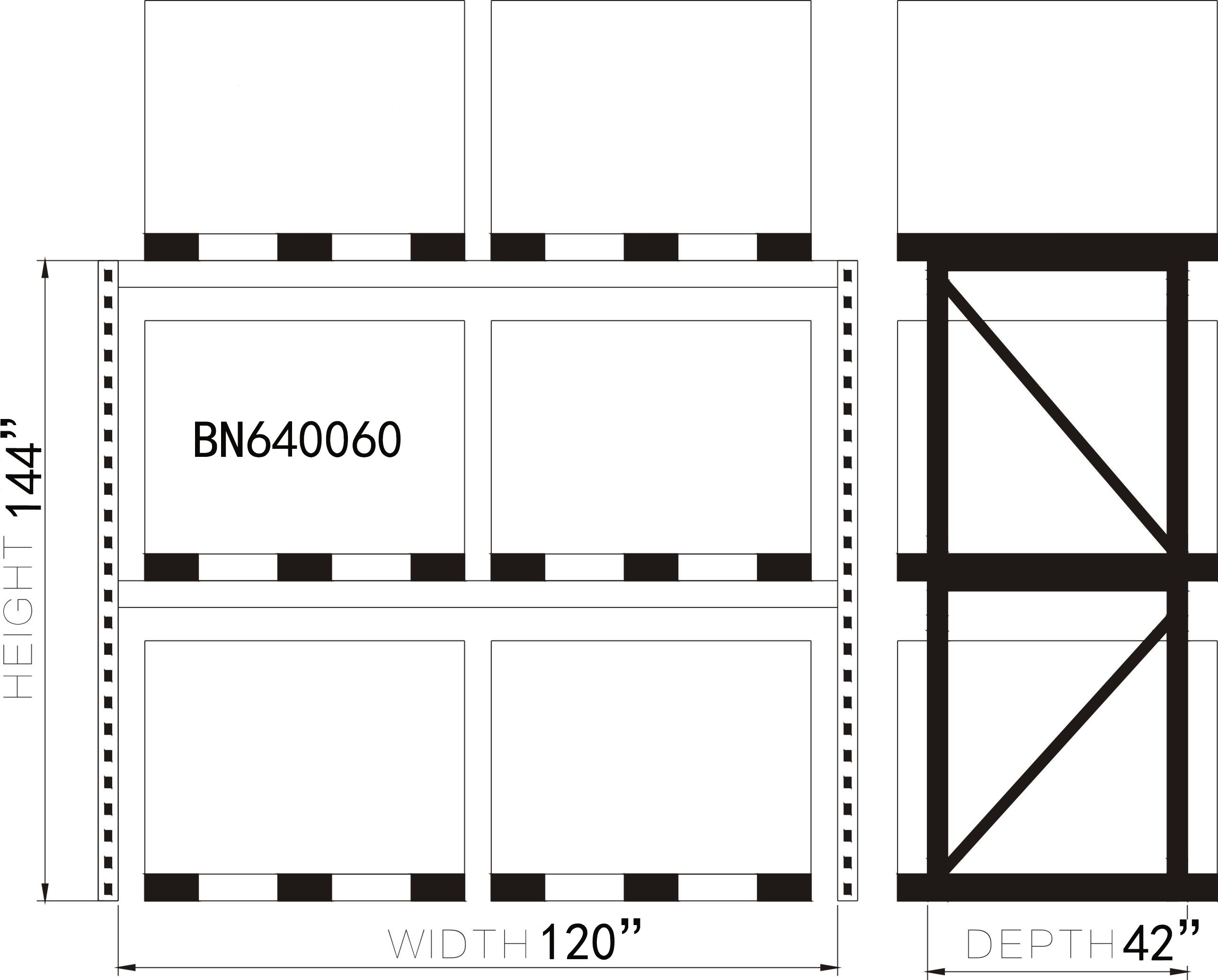

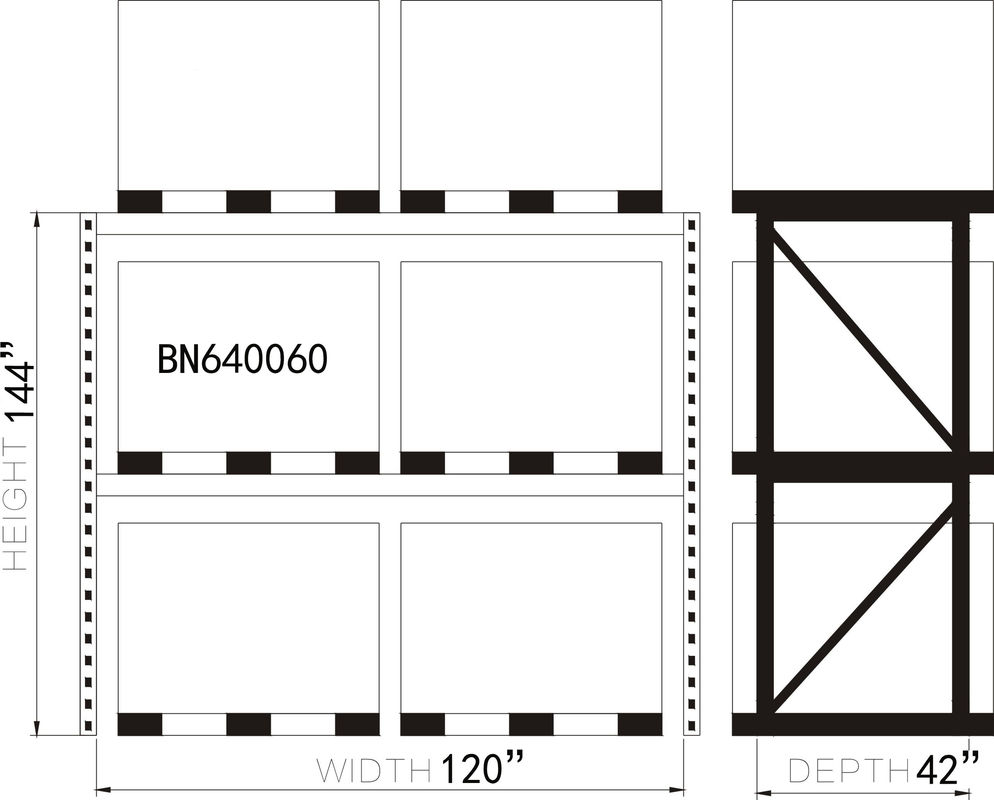

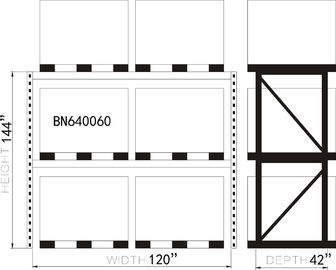

Specification

Description Pallet Rack
Item# BN640060
Type Add on
Construction Teardrop
Material Roll Formed Steel
Upright Gauge 14 GA
Width 120 Inch
Depth 42 Inch
Height 12 Feet
Beam Style Step Beam
Beam Gauge 14 Ga
Beam Step Depth 3/4"
Beam Step Height 1 1/2"
Assembly Unassembled
Capacity 5630 lb
Finish Powder coated
Footplates 4" X 4 1/4"
Include 2 uprights, 4 beams
Connection Style Pin with automatic lock
